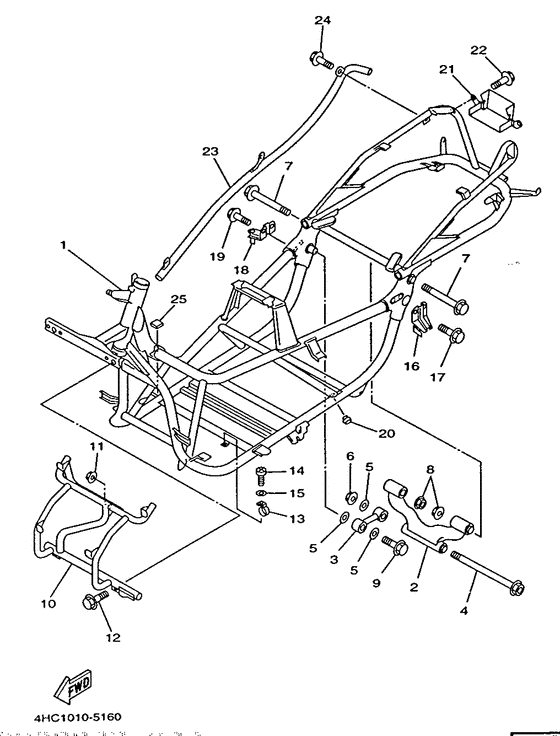

Frame Diagram Yamaha YP250 Majesty
- Year
- 1996
- Colour
- Deep Red Cocktail 2 (DRC2; 0376)
- Model code
- 4UC1
- Sales region
- France (040)
- Engine Capacity
- 250
- Model
- YP250 (Majesty/ Skyliner)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4HC-21110-00-00
Frame Comp
|
4HC-21110-00-00 |
— | ||
| replacement | |||||
|
01
|
01
4HC-21110-01-00
Frame Comp
|
4HC-21110-01-00 |
— | ||
|
02
|
02
4HC-21420-00-00
Engine Bracket Comp. 2
|
4HC-21420-00-00 |
— | ||
|
03
|
03
4HC-21480-00-00 Stay, Engine |
4HC-21480-00-00 |
US $84.73 |
||
|
04
|
04
901-05107-16-00 Bolt, Flange |
901-05107-16-00 |
from US $10.52 |
||
|
05
|
05
90201-105A2-00 Washer, Plate (4X7) |
90201-105A2-00 |
from US $1.70 |
||
|
06
|
06
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
07
|
07
95817-12120-00 Bolt, Flange |
95817-12120-00 |
US $5.88 |
||
|
08
|
08
90185-12072-00 Nut, Self-Locking |
90185-12072-00 |
from US $1.84 |
||
|
09
|
09
95817-10045-00 Bolt, Flange |
95817-10045-00 |
from US $2.77 |
||
|
10
|
10
4HC-28356-00-00 Stay 1 |
4HC-28356-00-00 |
US $242.49 |
||
| replacement | |||||
|
10
|
10
4HC-28356-01-00 Stay 1 |
4HC-28356-01-00 |
US $242.49 |
||
|
11
|
11
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
11
|
11
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
12
|
12
958-17080-16-00 Bolt, Flange |
958-17080-16-00 |
from US $1.18 |
||
| replacement | |||||
|
12
|
12
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
13
|
13
4GY-23389-00-00
Guide, Cable
|
4GY-23389-00-00 |
— | ||
|
14
|
14
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
14
|
14
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
15
|
15
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
16
|
16
4HC-27452-00-00 Bracket, Footrest 1 |
4HC-27452-00-00 |
US $19.15 |
||
| replacement | |||||
|
16
|
16
4HC-27452-01-00 Bracket, Footrest 1 |
4HC-27452-01-00 |
US $19.15 |
||
|
17
|
17
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
18
|
18
4HC-27462-00-00 Bracket, Footrest 2 |
4HC-27462-00-00 |
US $19.15 |
||
| replacement | |||||
|
18
|
18
4HC-27462-01-00 Bracket, Footrest 2 |
4HC-27462-01-00 |
US $19.15 |
||
|
19
|
19
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.39 |
||
|
20
|
20
4HC-27314-00-00
Stopper
|
4HC-27314-00-00 |
— | ||
|
21
|
21
4HC-2476V-00-00
Protector,2
|
4HC-2476V-00-00 |
— | ||
|
22
|
22
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
23
|
23
4HC-2117G-00-00
Protector
|
4HC-2117G-00-00 |
— | ||
|
24
|
24
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
25
|
25
3TB-28217-00-00 Damper 1 |
3TB-28217-00-00 |
from US $2.13 |
||
