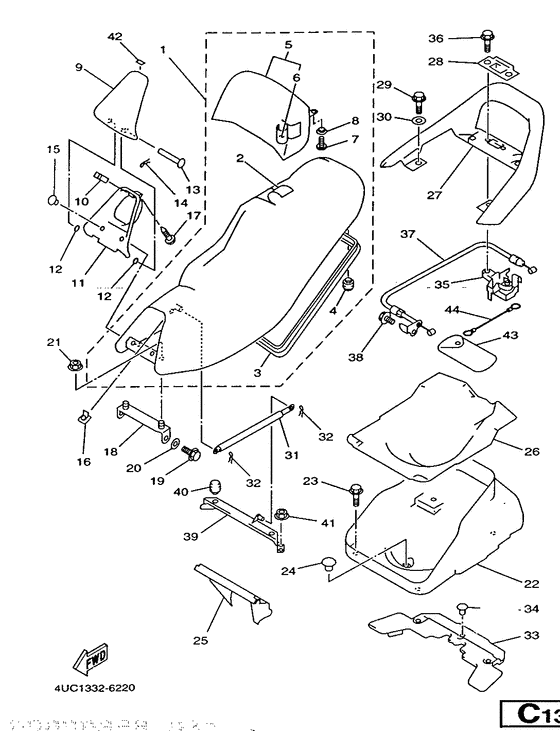

Seat Diagram Yamaha YP250 Majesty
- Year
- 1996
- Colour
- Deep Red Cocktail 2 (DRC2; 0376)
- Model code
- 4UC1
- Sales region
- France (040)
- Engine Capacity
- 250
- Model
- YP250 (Majesty/ Skyliner)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4HC-24730-00-00
Double Seat Assy
|
4HC-24730-00-00 |
— | ||
| replacement | |||||
|
01
|
01
4HC-24730-A1-00
Double Seat Assy
|
4HC-24730-A1-00 |
— | ||
|
02
|
02
4HC-2470F-00-00
Seat Cover Comp
|
4HC-2470F-00-00 |
— | ||
| replacement | |||||
|
02
|
02
4HC-2470F-A1-00
Cover, Seat
|
4HC-2470F-A1-00 |
— | ||
|
03
|
03
4HC-2475M-00-00
Seal
|
4HC-2475M-00-00 |
— | ||
|
04
|
04
1T4-24741-00-00 Pad, Seat |
1T4-24741-00-00 |
from US $8.78 |
||
|
05
|
05
4HC-24790-00-00
Seat Back Assy
|
4HC-24790-00-00 |
— | ||
| replacement | |||||
|
05
|
05
4HC-24790-A1-00
Seat Back Assy
|
4HC-24790-A1-00 |
— | ||
|
06
|
06
4HC-2477A-00-00
Seat Cover Assy
|
4HC-2477A-00-00 |
— | ||
| replacement | |||||
|
06
|
06
4HC-2477A-02-00
Seat Cover Assy
|
4HC-2477A-02-00 |
— | ||
|
07
|
07
901-10062-00-00 Bolt, Hexagon Socket Head |
901-10062-00-00 |
from US $1.81 |
||
|
08
|
08
90387-062M9-00 Collar |
90387-062M9-00 |
from US $1.70 |
||
|
09
|
09
4HC-2473T-01-00 Lid 1 |
4HC-2473T-01-00 |
US $36.34 |
||
|
10
|
10
4HC-24618-00-00 Plate, Lock 3 |
4HC-24618-00-00 |
US $7.51 |
||
|
11
|
11
4HC-2473F-01-00 Cover, Seat Comp |
4HC-2473F-01-00 |
US $9.92 |
||
|
12
|
12
93210-05187-00 O-Ring |
93210-05187-00 |
from US $1.98 |
||
|
13
|
13
90240-05047-00 Pin, Clevis |
90240-05047-00 |
US $6.80 |
||
|
14
|
14
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
15
|
15
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.81 |
||
|
16
|
16
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
17
|
17
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
18
|
18
4HC-2197J-00-00
Hinge 1
|
4HC-2197J-00-00 |
— | ||
|
19
|
19
90109-062F5-00
Bolt
|
90109-062F5-00 |
— | ||
|
20
|
20
90206-10036-00 Washer, Wave |
90206-10036-00 |
from US $1.70 |
||
|
21
|
21
957-07085-00-00
Nut, Flange
|
957-07085-00-00 |
— | ||
| replacement | |||||
|
21
|
21
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
22
|
22
4HC-2473R-00-00
Box 1
|
4HC-2473R-00-00 |
— | ||
|
23
|
23
90119-06191-00
Bolt, With Washer
|
90119-06191-00 |
— | ||
|
24
|
24
90338-11125-00 Plug |
90338-11125-00 |
from US $1.94 |
||
|
25
|
25
4HC-2177F-00-00
Cover
|
4HC-2177F-00-00 |
— | ||
|
26
|
26
4HC-24723-00-00
Damper, Seat
|
4HC-24723-00-00 |
— | ||
|
27
|
27
4HC-24773-00-4B Handle, SeatUr black 2 |
4HC-24773-00-4B |
US $501.09 |
||
| replacement | |||||
|
27
|
27
4HC-24773-A0-PA Handle, SeatUr black 2 |
4HC-24773-A0-PA |
US $501.09 |
||
|
27
|
27
4HC-24773-00-P0
Handle, Seat
Ur deep red cocktail 2 |
4HC-24773-00-P0 |
— | ||
| replacement | |||||
|
27
|
27
4HC-24773-A0-P2
Handle, Seat
Ur deep red cocktail 2 |
4HC-24773-A0-P2 |
— | ||
|
27
|
27
4HC-24773-00-T9
Handle, Seat
Ur competition silver |
4HC-24773-00-T9 |
— | ||
| replacement | |||||
|
27
|
27
4HC-24773-A0-T9
Handle, Seat
Ur competition silver |
4HC-24773-A0-T9 |
— | ||
|
28
|
28
4HC-2476U-00-00 Protector 1 |
4HC-2476U-00-00 |
US $24.79 |
||
|
29
|
29
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
30
|
30
90201-064J1-00 Washer, Plate |
90201-064J1-00 |
from US $1.98 |
||
|
31
|
31
4HC-2478G-00-00 Stopper |
4HC-2478G-00-00 |
US $110.73 |
||
|
32
|
32
90468-18121-00 Clip |
90468-18121-00 |
from US $1.28 |
||
|
33
|
33
4HC-21629-00-00
Guard, Mud
|
4HC-21629-00-00 |
— | ||
|
34
|
34
902-69070-76-00 Rivet(4Jh) |
902-69070-76-00 |
from US $1.81 |
||
|
35
|
35
4JP-24780-01-00 Seat Lock Assy |
4JP-24780-01-00 |
US $60.79 |
||
| replacement | |||||
|
35
|
35
4JP-24780-03-00 Seat Lock Assy |
4JP-24780-03-00 |
from US $60.79 |
||
|
36
|
36
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
37
|
37
4HC-2478E-00-00
Cable, Seat Lock
|
4HC-2478E-00-00 |
— | ||
|
38
|
38
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
38
|
38
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
39
|
39
4HC-24738-00-00 Bracket, Seat |
4HC-24738-00-00 |
US $48.76 |
||
|
40
|
40
1T4-24741-00-00 Pad, Seat |
1T4-24741-00-00 |
from US $8.78 |
||
|
41
|
41
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.12 |
||
|
42
|
42
4HC-2415C-00-00
Label
|
4HC-2415C-00-00 |
— | ||
|
43
|
43
4HC-28100-00-00
Tool Kit
|
4HC-28100-00-00 |
— | ||
|
44
|
44
4HC-21398-00-00 Hanger, Helmet |
4HC-21398-00-00 |
from US $32.16 |
||
