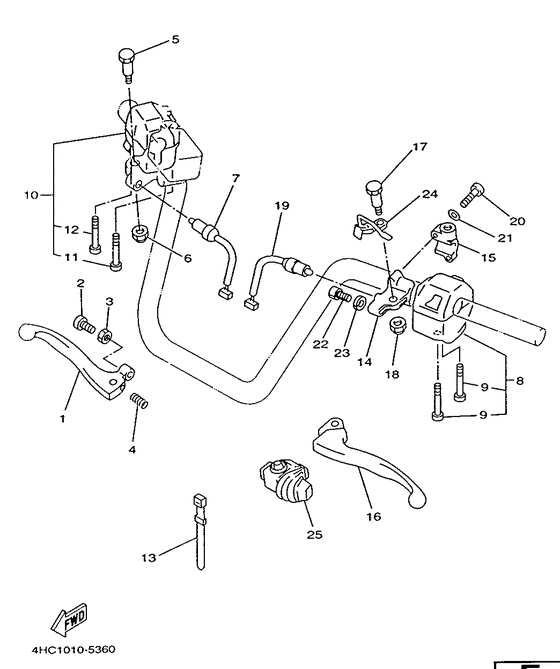

Handle switch & lever Diagram Yamaha YP250 Majesty
- Year
- 1997
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4UC2
- Sales region
- Norway (090)
- Engine Capacity
- 250
- Model
- YP250 (Majesty/ Skyliner)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3RN-83922-00-00 Lever 2 |
3RN-83922-00-00 |
US $25.08 |
||
|
02
|
02
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
03
|
03
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
04
|
04
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
|
05
|
05
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
06
|
06
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
06
|
06
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
07
|
07
4FU-83980-00-00 Front Stop Switch Assy |
4FU-83980-00-00 |
US $24.79 |
||
| replacement | |||||
|
07
|
07
2UJ-83980-00-00 Front Stop Switch Assy |
2UJ-83980-00-00 |
from US $28.17 |
||
|
08
|
08
4HC-83972-01-00 Switch, Handle 4 |
4HC-83972-01-00 |
US $146.29 |
||
|
09
|
09
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
10
|
10
4UC-83963-00-00 Switch, Handle 3 |
4UC-83963-00-00 |
US $127.79 |
||
| replacement | |||||
|
10
|
10
4UC-83963-01-00 Switch, Handle 3 (Right) |
4UC-83963-01-00 |
US $127.79 |
||
|
11
|
11
98507-05040-00 Screw, Pan Head |
98507-05040-00 |
from US $1.42 |
||
|
12
|
12
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.52 |
||
|
13
|
13
90464-05141-00 Clamp |
90464-05141-00 |
from US $1.70 |
||
|
14
|
14
4HC-82911-00-00 Holder, Lever 1 |
4HC-82911-00-00 |
US $45.03 |
||
|
15
|
15
33G-82913-01-00 Holder, Lever Lower 1 |
33G-82913-01-00 |
from US $18.03 |
||
|
16
|
16
3RN-83912-00-00 Lever 1 |
3RN-83912-00-00 |
from US $19.21 |
||
| replacement | |||||
|
16
|
16
3RN-83912-01-00 LEVER 1 |
3RN-83912-01-00 |
from US $17.78 |
||
|
17
|
17
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
18
|
18
956-07061-00-00
Nut, U
|
956-07061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
19
|
19
4HC-83980-00-00
Switch, Clutch Assy
|
4HC-83980-00-00 |
— | ||
|
20
|
20
985-07050-20-00
Screw, Pan Head(4My)
|
985-07050-20-00 |
— | ||
| replacement | |||||
|
20
|
20
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
21
|
21
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
22
|
22
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
22
|
22
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
23
|
23
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
23
|
23
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
24
|
24
4HC-83965-00-00
Lever, Lock
|
4HC-83965-00-00 |
— | ||
|
25
|
25
36X-26372-10-00 Cover, Handle Lever 1 |
36X-26372-10-00 |
US $16.58 |
||
| replacement | |||||
|
25
|
25
36X-26372-00-00 Cover, Handle Lever 1 |
36X-26372-00-00 |
US $16.58 |
||
