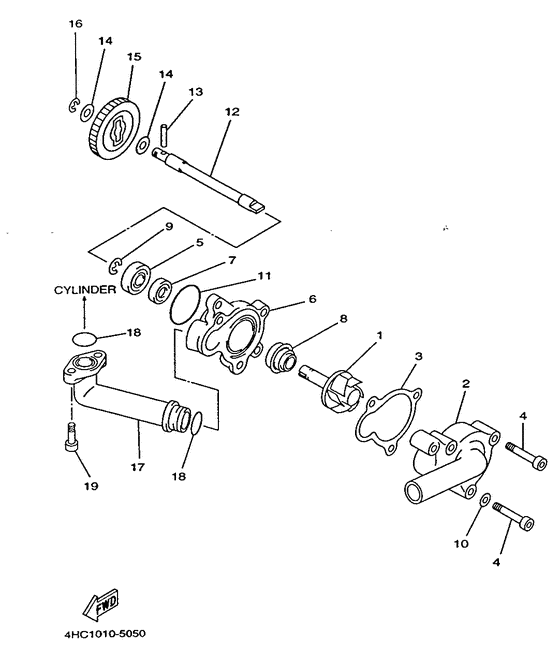

Water pump Diagram Yamaha YP250 Majesty
- Year
- 1997
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 4UC2
- Sales region
- Norway (090)
- Engine Capacity
- 250
- Model
- YP250 (Majesty/ Skyliner)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4HC-12450-00-00
Impeller Shaft Assy
|
4HC-12450-00-00 |
— | ||
|
02
|
02
4HC-12422-00-00 Cover, Housing |
4HC-12422-00-00 |
US $77.92 |
||
| replacement | |||||
|
02
|
02
5HW-E2422-00-00
Cover, Housing
|
5HW-E2422-00-00 |
— | ||
|
03
|
03
4HC-12428-00-00 Gasket, Housing Cover 2 |
4HC-12428-00-00 |
US $8.08 |
||
| replacement | |||||
|
03
|
03
4HC-12428-10-00 Gasket, Housing Cover 2 |
4HC-12428-10-00 |
US $9.02 |
||
|
04
|
04
913-17060-35-00
Bolt,socket
|
913-17060-35-00 |
— | ||
| replacements | |||||
|
04
|
04
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
04
|
04
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
05
|
05
933-06000-06-00
Bearing
|
933-06000-06-00 |
— | ||
| replacement | |||||
|
05
|
05
933-06000-04-00 Bearing |
933-06000-04-00 |
from US $12.46 |
||
|
06
|
06
4HC-12421-00-00 Housing, Water Pump |
4HC-12421-00-00 |
US $104.45 |
||
| replacement | |||||
|
06
|
06
5HW-E2421-00-00
Housing, Water Pum
|
5HW-E2421-00-00 |
— | ||
|
07
|
07
931-01100-90-00 Oil Seal (J10) |
931-01100-90-00 |
from US $3.38 |
||
|
08
|
08
11H-12438-00-00
Seal, Mechanical
|
11H-12438-00-00 |
— | ||
| replacement | |||||
|
08
|
08
11H-12438-10-00 Seal, Mechanical |
11H-12438-10-00 |
from US $22.90 |
||
|
10
|
10
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.39 |
||
|
11
|
11
932-10331-33-00 O-Ring |
932-10331-33-00 |
from US $1.81 |
||
|
12
|
12
4HC-12426-00-00
Shaft
|
4HC-12426-00-00 |
— | ||
|
13
|
13
93603-22028-00 Pin, Dowel |
93603-22028-00 |
from US $1.70 |
||
|
14
|
14
90201-08512-00 Washer, Plate |
90201-08512-00 |
from US $2.08 |
||
|
15
|
15
4HC-12459-00-00
Gear, Impeller Shaft
|
4HC-12459-00-00 |
— | ||
|
17
|
17
4HC-12446-00-00 Joint |
4HC-12446-00-00 |
US $23.80 |
||
|
18
|
18
93210-16275-00 O-Ring |
93210-16275-00 |
from US $1.63 |
||
|
19
|
19
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
