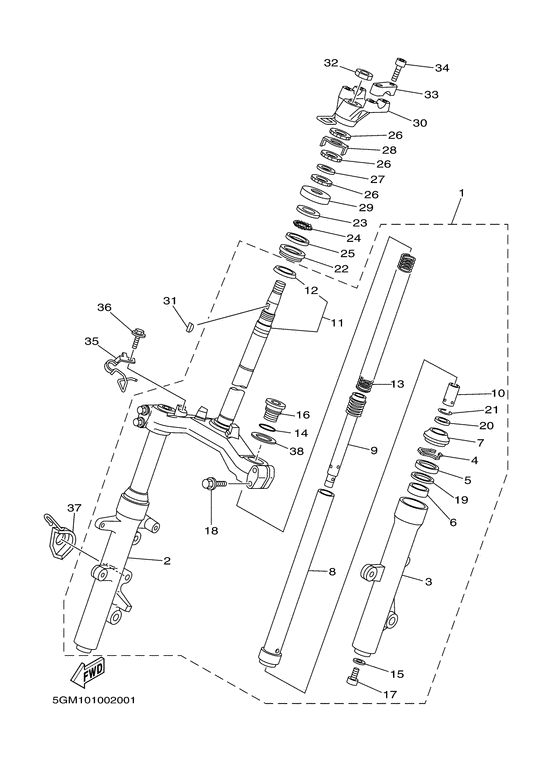

Direction Diagram Yamaha YP250 Majesty
- Year
- 2000
- Colour
- Deep Reddish Yellow Cocktail 1 (DRYC1; 0625)
- Model code
- 5GM2
- Sales region
- France (050)
- Engine Capacity
- 250
- Model
- YP250 (Majesty/ Skyliner)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5GM-23100-00-00
Front Fork Assy
|
5GM-23100-00-00 |
— | ||
| replacement | |||||
|
01
|
01
5GM-23100-01-00 Front Fork Assy |
5GM-23100-01-00 |
US $981.52 |
||
|
02
|
02
4HC-23136-10-00 Tube, Outer 2 |
4HC-23136-10-00 |
US $306.50 |
||
| replacement | |||||
|
02
|
02
5GM-23136-10-00
Tube, Outer (Right)
|
5GM-23136-10-00 |
— | ||
|
03
|
03
4HC-23126-10-00
Tube, Outer (L.h)
|
4HC-23126-10-00 |
— | ||
| replacement | |||||
|
03
|
03
5GM-23126-10-00
Tube, Outer (Left)
|
5GM-23126-10-00 |
— | ||
|
04
|
04
22W-23153-L0-00 Ring, Snap |
22W-23153-L0-00 |
from US $4.62 |
||
|
05
|
05
2UJ-23145-00-00 Oil Seal |
2UJ-23145-00-00 |
from US $11.66 |
||
|
06
|
06
4HC-23125-20-00 Metal, Slide 1 |
4HC-23125-20-00 |
from US $10.96 |
||
|
07
|
07
2UJ-23144-00-00 Seal, Dust |
2UJ-23144-00-00 |
from US $12.21 |
||
|
08
|
08
5GM-23110-00-00 Inner Tube Comp.1 |
5GM-23110-00-00 |
US $266.65 |
||
|
09
|
09
5GM-23170-00-00 Cylinder Comp., Front Fork |
5GM-23170-00-00 |
US $65.98 |
||
|
10
|
10
4HC-23173-20-00 Spindle, Taper |
4HC-23173-20-00 |
US $24.24 |
||
|
11
|
11
5GM-23340-00-00 Under Bracket Comp |
5GM-23340-00-00 |
US $486.95 |
||
| replacement | |||||
|
11
|
11
5GM-23340-01-00 Under Bracket Comp |
5GM-23340-01-00 |
US $486.95 |
||
|
12
|
12
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
13
|
13
5GM-23141-00-00 Spring, Front Fork |
5GM-23141-00-00 |
US $36.20 |
||
|
14
|
14
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
15
|
15
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
16
|
16
4HC-23111-00-00 Bolt, Cap |
4HC-23111-00-00 |
US $28.62 |
||
| replacement | |||||
|
16
|
16
5RB-23111-00-00 Bolt, Cap |
5RB-23111-00-00 |
from US $28.62 |
||
|
17
|
17
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
17
|
17
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
18
|
18
95027-08040-00 Bolt, Flange |
95027-08040-00 |
from US $1.42 |
||
|
19
|
19
22W-23146-L0-00 Washer, Oil Seal |
22W-23146-L0-00 |
from US $8.93 |
||
|
20
|
20
4HC-23184-10-00 Metal |
4HC-23184-10-00 |
US $19.41 |
||
|
21
|
21
3G2-23183-00-00 Circlip |
3G2-23183-00-00 |
US $3.12 |
||
|
22
|
22
93399-99942-00 Bearing |
93399-99942-00 |
from US $36.49 |
||
|
23
|
23
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
23
|
23
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
24
|
24
22F-2341E-00-00 Retainer, Ball Bearing |
22F-2341E-00-00 |
from US $14.14 |
||
| replacement | |||||
|
24
|
24
BP2-2341E-00-00 Retainer, Ball Bearing |
BP2-2341E-00-00 |
from US $14.14 |
||
|
25
|
25
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
25
|
25
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
26
|
26
901-79256-15-00
Nut
|
901-79256-15-00 |
— | ||
| replacement | |||||
|
26
|
26
901-79258-11-00 Nut |
901-79258-11-00 |
from US $5.44 |
||
|
27
|
27
90202-26142-00 Washer, Plate |
90202-26142-00 |
from US $2.08 |
||
|
28
|
28
3YF-23418-00-00 Washer, Special |
3YF-23418-00-00 |
from US $7.65 |
||
|
29
|
29
3VP-23416-00-00 Cover, Ball Race 2 |
3VP-23416-00-00 |
US $2.83 |
||
|
30
|
30
4HC-23442-11-00 Holder, Handle Lower |
4HC-23442-11-00 |
US $160.69 |
||
| replacement | |||||
|
30
|
30
1B9-F3442-00-00
Holder, Handle Lower
|
1B9-F3442-00-00 |
— | ||
|
31
|
31
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.81 |
||
|
32
|
32
90170-20386-00 Nut |
90170-20386-00 |
from US $4.25 |
||
|
33
|
33
4H7-23441-00-98 Holder, Handle UpperLgb |
4H7-23441-00-98 |
from US $28.13 |
||
| replacement | |||||
|
33
|
33
4H7-23441-01-98 Holder, Handle UpperLgb |
4H7-23441-01-98 |
from US $29.89 |
||
|
34
|
34
913-17080-30-00 Bolt |
913-17080-30-00 |
from US $1.07 |
||
|
35
|
35
4HC-25875-01-00 Holder, Brake Hose 1 |
4HC-25875-01-00 |
US $12.33 |
||
|
36
|
36
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
36
|
36
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
37
|
37
5CG-23317-00-00 Holder, Cable |
5CG-23317-00-00 |
US $17.65 |
||
|
38
|
38
3DM-23149-10-00 Washer, Spring Upper |
3DM-23149-10-00 |
from US $4.96 |
||
