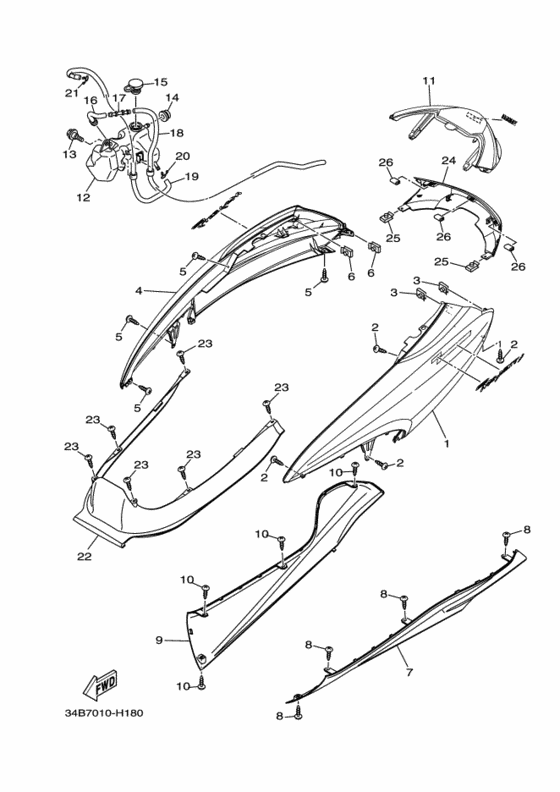

Side cover comp Diagram Yamaha YP400 Grand Majesty
- Year
- 2009
- Colour
- Bluish White Cocktail 1 (BW C1; 0390)
- Model code
- 34B7
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- YP400G (Grand Majesty)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34B-21711-00-P2 Cover, Side 1カバー，サイド １; ＵＲ ＢＷＣ１， ＷＯＧ |
34B-21711-00-P2 |
US $292.90 |
||
|
2
|
2
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
2
|
2
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
3
|
3
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
4
|
4
34B-21721-00-P2 Cover, Side 2カバー，サイド ２; ＵＲ ＢＷＣ１， ＷＯＧ |
34B-21721-00-P2 |
US $292.90 |
||
|
5
|
5
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
5
|
5
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
6
|
6
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
7
|
7
5RU-2171L-10-P7 Mole, Side Cover 1モール，サイドカバー １; ＵＲ ＢＷＣ１ |
5RU-2171L-10-P7 |
US $121.58 |
||
|
8
|
8
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
8
|
8
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
9
|
9
5RU-2171M-00-PJ Mole, Side Cover 2モール，サイドカバー ２; ＵＲ ＢＷＣ１ |
5RU-2171M-00-PJ |
from US $121.58 |
||
|
10
|
10
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
10
|
10
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
11
|
11
34B-2171N-00-P2 Mole, Side Cover 3モール，サイドカバー ３; ＵＲ ＢＷＣ１， ＷＯＧ |
34B-2171N-00-P2 |
US $175.46 |
||
|
12
|
12
5RU-21871-00-00 Tank, Recovery |
5RU-21871-00-00 |
from US $31.88 |
||
|
13
|
13
90109-06172-00 Bolt |
90109-06172-00 |
from US $1.70 |
||
|
14
|
14
90480-13426-00 Grommet |
90480-13426-00 |
from US $1.94 |
||
| replacement | |||||
|
14
|
14
90480-13567-00 Grommet |
90480-13567-00 |
from US $1.94 |
||
|
15
|
15
10V-21875-00-00 Cap |
10V-21875-00-00 |
from US $6.40 |
||
|
16
|
16
5RU-21816-00-00 Pipe 1 |
5RU-21816-00-00 |
from US $7.79 |
||
|
17
|
17
1E7-21753-00-00
Boss, Connector
|
1E7-21753-00-00 |
— | ||
| replacement | |||||
|
17
|
17
4N0-21753-00-00
Boss, Connector
|
4N0-21753-00-00 |
— | ||
|
18
|
18
5RU-2125J-00-00 Pipe, Drain |
5RU-2125J-00-00 |
from US $12.47 |
||
|
19
|
19
5RU-21817-00-00 Pipe 2 |
5RU-21817-00-00 |
from US $22.81 |
||
|
20
|
20
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.81 |
||
|
21
|
21
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
21
|
21
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.39 |
||
|
21
|
21
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
22
|
22
5RU-21731-00-00 Cover, Side 3カバー，サイド ３; |
5RU-21731-00-00 |
from US $47.39 |
||
|
23
|
23
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
23
|
23
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
24
|
24
34B-21741-00-P2 Cover, Side 4カバー，サイド ４; ＵＲ ＢＷＣ１ |
34B-21741-00-P2 |
US $147.83 |
||
|
25
|
25
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
26
|
26
34B-24785-00-00 Mold, Seatモール，シート; |
34B-24785-00-00 |
from US $2.41 |
||
