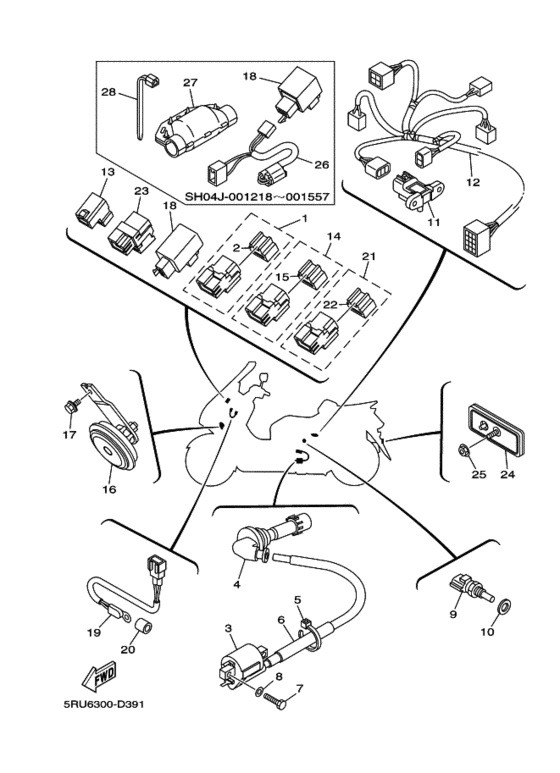

Electrical 2 Diagram Yamaha YP400 Grand Majesty
- Year
- 2005
- Colour
- Silver 3 (S3; 0791)
- Model code
- 5RU9
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- YP400G (Grand Majesty)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5EA-81950-20-00 Relay Assy (5Ea-02)リレーアセンブリ; ラジエタフアンモータ |
5EA-81950-20-00 |
from US $26.63 |
||
|
2
|
2
5EA-81952-00-00 Holder, Relay．ホルダー，リレー; |
5EA-81952-00-00 |
from US $4.86 |
||
|
3
|
3
5RU-82310-00-00 Ignition Coil Assy |
5RU-82310-00-00 |
from US $59.82 |
||
| replacements | |||||
|
3
|
3
5RU-82310-02-00 |
5RU-82310-02-00 |
from US $59.82 |
||
|
3
|
3
5RU-82310-03-00 Ignition Coil Assy |
5RU-82310-03-00 |
from US $53.77 |
||
|
4
|
4
5RU-82370-00-00 Plug Cap Assy |
5RU-82370-00-00 |
from US $54.16 |
||
|
5
|
5
904-65100-98-00 Clamp |
904-65100-98-00 |
from US $1.39 |
||
| replacement | |||||
|
5
|
5
80L-26397-00-00 Band |
80L-26397-00-00 |
from US $1.40 |
||
|
6
|
6
5RU-82353-00-00 Hoseホース; |
5RU-82353-00-00 |
from US $5.38 |
||
|
7
|
7
97007-06016-00 Boltボルト; |
97007-06016-00 |
US $1.21 |
||
| replacement | |||||
|
7
|
7
97017-06016-00 Boltボルト; |
97017-06016-00 |
from US $1.39 |
||
|
8
|
8
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
9
|
9
5PS-85790-00-00 Thermosensor Assyサーモセンサアセンブリ; |
5PS-85790-00-00 |
from US $42.14 |
||
|
10
|
10
90430-12202-00 Gasket |
90430-12202-00 |
from US $1.39 |
||
|
11
|
11
5PS-82380-00-00 Sensor, Pressureセンサー，プレツシヤー; |
5PS-82380-00-00 |
from US $163.03 |
||
|
12
|
12
5RU-82509-00-00 Wire, Sub Leadワイヤ，サブリード; |
5RU-82509-00-00 |
from US $116.05 |
||
|
13
|
13
3GD-81950-01-00 Relay Assy (3Gd-01)リレーアセンブリ; スタータカツトオフリレー |
3GD-81950-01-00 |
from US $37.30 |
||
|
14
|
14
5EA-81950-20-00 Relay Assy (5Ea-02)リレーアセンブリ; ＥＦＩ リレー |
5EA-81950-20-00 |
from US $26.63 |
||
|
15
|
15
5EA-81952-00-00 Holder, Relay．ホルダー，リレー; |
5EA-81952-00-00 |
from US $4.86 |
||
|
16
|
16
5RU-83371-02-00 Hornホーン; |
5RU-83371-02-00 |
from US $46.56 |
||
|
17
|
17
958-27060-10-00
Bolt, Flange(Jn5)
ボルト，フランジ; |
958-27060-10-00 |
— | ||
| replacement | |||||
|
17
|
17
95817-06010-00 Bolt, Flangeボルト，フランジ; |
95817-06010-00 |
from US $1.18 |
||
|
18
|
18
3GM-83350-01-00
Flasher Relay Assy
フラツシヤリレーアセンブリ; 〜００１５５７ |
3GM-83350-01-00 |
— | ||
| replacements | |||||
|
18
|
18
3GM-83350-02-00 Flasher Relay Assyフラツシヤリレーアセンブリ; 〜００１５５７ |
3GM-83350-02-00 |
from US $51.67 |
||
|
18
|
18
3GM-83350-03-00 Flasher Relay Assyフラツシヤリレーアセンブリ; 〜００１５５７ |
3GM-83350-03-00 |
US $93.53 |
||
|
18
|
18
5SJ-83350-00-00 Flasher Relay Assyフラツシヤリレーアセンブリ; ００１５５８〜 |
5SJ-83350-00-00 |
US $64.24 |
||
|
19
|
19
5RU-85700-00-00 Thermistor Assy |
5RU-85700-00-00 |
from US $38.96 |
||
|
20
|
20
5SJ-83535-00-00 Tubeチユーブ; |
5SJ-83535-00-00 |
from US $1.46 |
||
|
21
|
21
5EA-81950-20-00 Relay Assy (5Ea-02)リレーアセンブリ; ヘツドライト |
5EA-81950-20-00 |
from US $26.63 |
||
|
22
|
22
5EA-81952-00-00 Holder, Relay．ホルダー，リレー; |
5EA-81952-00-00 |
from US $4.86 |
||
|
23
|
23
5DM-81950-00-00
Relay Assy (G8Hn-1C4T-Dj-Y52)
リレーアセンブリ; ＨＩ／ＬＯ キリカエ |
5DM-81950-00-00 |
— | ||
| replacement | |||||
|
23
|
23
5DM-81950-01-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)リレーアセンブリ; ＨＩ／ＬＯ キリカエ |
5DM-81950-01-00 |
from US $22.20 |
||
|
24
|
24
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $11.12 |
||
|
25
|
25
956-07052-00-00 Nut, U Flange |
956-07052-00-00 |
from US $1.52 |
||
|
26
|
26
5VG-82541-00-00 Wire, Leadワイヤ，リード; |
5VG-82541-00-00 |
US $20.69 |
||
|
27
|
27
5KN-8252U-00-00 Cover |
5KN-8252U-00-00 |
from US $10.63 |
||
|
28
|
28
904-64130-77-00
Clamp
|
904-64130-77-00 |
— | ||
| replacement | |||||
|
28
|
28
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
