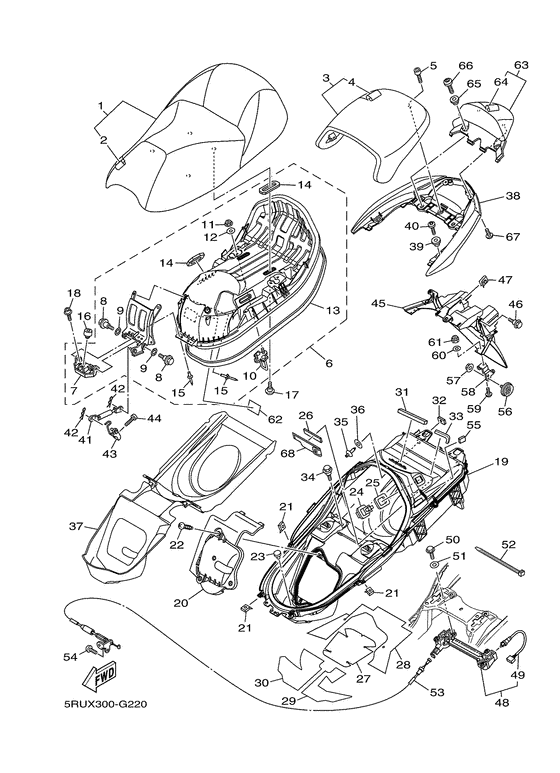

Seat Diagram Yamaha YP400 Majesty
- Year
- 2008
- Colour
- Black Metallic X (SMX; 0903)
- Model code
- 5RUX
- Sales region
- Europe (General) (010)
- Engine Capacity
- 400
- Model
- YP400 (Majesty)
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5RU-24710-20-00 Single Seat AssyUr for sm1,smx |
5RU-24710-20-00 |
from US $512.84 |
||
|
01
|
01
5RU-24710-40-00 Single Seat AssyUr for dnmb |
5RU-24710-40-00 |
US $513.22 |
||
|
02
|
02
5RU-2470F-00-00 Seat Cover CompUr for sm1,smx |
5RU-2470F-00-00 |
US $397.87 |
||
|
02
|
02
5RU-2470F-20-00 Seat Cover CompUr for dnmb |
5RU-2470F-20-00 |
US $326.25 |
||
|
03
|
03
5RU-24750-10-00 Tandem Seat AssyUr for sm1,smx |
5RU-24750-10-00 |
from US $175.46 |
||
|
03
|
03
5RU-24750-20-00 Tandem Seat AssyUr for dnmb |
5RU-24750-20-00 |
from US $175.46 |
||
|
04
|
04
5RU-2470H-00-00 Seat Cover Comp., 2Ur for sm1,smx |
5RU-2470H-00-00 |
from US $122.69 |
||
|
04
|
04
5RU-2470H-10-00 Seat Cover Comp., 2Ur for dnmb |
5RU-2470H-10-00 |
from US $122.69 |
||
|
05
|
05
90110-06244-00 Bolt, Hexagon Socket Head |
90110-06244-00 |
from US $2.05 |
||
|
06
|
06
5RU-2470E-20-00 Bottom Plate Comp |
5RU-2470E-20-00 |
US $321.91 |
||
|
07
|
07
5RU-24726-20-00 Hinge, Seat |
5RU-24726-20-00 |
US $24.79 |
||
|
08
|
08
90109-06214-00 Bolt |
90109-06214-00 |
from US $2.08 |
||
|
09
|
09
90206-10036-00 Washer, Wave |
90206-10036-00 |
from US $1.70 |
||
|
10
|
10
5RU-24728-00-00 Bracket, Seat |
5RU-24728-00-00 |
from US $14.17 |
||
|
11
|
11
90179-06635-00 Nut, Flange |
90179-06635-00 |
from US $1.13 |
||
| replacement | |||||
|
11
|
11
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
12
|
12
90201-06036-00 Washer, Plate |
90201-06036-00 |
from US $1.70 |
||
|
13
|
13
5RU-2475M-00-00 Seal |
5RU-2475M-00-00 |
from US $57.75 |
||
|
14
|
14
5RU-24858-10-00 Seal |
5RU-24858-10-00 |
from US $3.68 |
||
|
15
|
15
90267-40172-00 Rivet, Blind (4X19) |
90267-40172-00 |
from US $1.64 |
||
|
16
|
16
5RU-24768-00-00 Stopper |
5RU-24768-00-00 |
from US $2.98 |
||
|
17
|
17
90109-06207-00 Bolt |
90109-06207-00 |
from US $6.52 |
||
|
18
|
18
90110-08087-00 Bolt, Hexagon Socket Head |
90110-08087-00 |
from US $1.81 |
||
| replacement | |||||
|
18
|
18
90110-08097-00 Bolt, Hexagon Socket Head |
90110-08097-00 |
from US $1.81 |
||
|
19
|
19
5RU-24704-29-00 Box Assy |
5RU-24704-29-00 |
from US $216.91 |
||
|
20
|
20
5RU-2473T-00-00 Lid 1 |
5RU-2473T-00-00 |
from US $43.52 |
||
|
21
|
21
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.52 |
||
|
22
|
22
977-02500-12-00
Screw, Truss Head Tapping
|
977-02500-12-00 |
— | ||
| replacement | |||||
|
22
|
22
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
|
23
|
23
90338-11125-00 Plug |
90338-11125-00 |
from US $1.94 |
||
|
24
|
24
4HC-84770-00-00 Light, Accesory |
4HC-84770-00-00 |
from US $18.86 |
||
|
25
|
25
5RU-2839M-00-00 Seal, Box 2 |
5RU-2839M-00-00 |
from US $1.84 |
||
|
26
|
26
4KG-2814E-10-00 Hook |
4KG-2814E-10-00 |
from US $4.07 |
||
|
27
|
27
5RU-24737-00-00 Damper, Seat |
5RU-24737-00-00 |
from US $29.47 |
||
|
28
|
28
5RU-24747-00-00 Damper, Seat |
5RU-24747-00-00 |
from US $77.09 |
||
|
29
|
29
5RU-24854-00-00 Damper |
5RU-24854-00-00 |
from US $22.10 |
||
|
30
|
30
5RU-24849-00-00 Damper, 2 |
5RU-24849-00-00 |
from US $26.35 |
||
|
31
|
31
5GM-28435-00-00 Damper, 3 |
5GM-28435-00-00 |
from US $2.54 |
||
|
32
|
32
5RU-24724-00-00 Damper, Seat |
5RU-24724-00-00 |
from US $1.98 |
||
|
33
|
33
5RU-24724-20-00 Damper, Seat |
5RU-24724-20-00 |
from US $1.76 |
||
|
34
|
34
90109-06208-00 Bolt |
90109-06208-00 |
from US $1.84 |
||
|
35
|
35
90269-05006-00 Rivet |
90269-05006-00 |
from US $1.70 |
||
|
36
|
36
902-02051-80-00 Washer, Plate |
902-02051-80-00 |
from US $2.08 |
||
|
37
|
37
5RU-24723-00-00 Damper, Seat |
5RU-24723-00-00 |
from US $72.14 |
||
|
38
|
38
5RU-24773-00-P7 Handle, SeatUr for smx |
5RU-24773-00-P7 |
from US $433.75 |
||
|
38
|
38
5RU-24773-00-PF Handle, SeatUr for sm1 |
5RU-24773-00-PF |
US $462.71 |
||
|
38
|
38
5RU-24773-00-PG Handle, SeatUr for dnmb |
5RU-24773-00-PG |
from US $387.38 |
||
|
39
|
39
90387-08022-00 Collar |
90387-08022-00 |
from US $7.23 |
||
|
40
|
40
90111-08040-00 Bolt, Hex. Socket Button |
90111-08040-00 |
from US $3.54 |
||
|
41
|
41
5RU-2478G-00-00 Stopper |
5RU-2478G-00-00 |
from US $54.36 |
||
|
42
|
42
90468-18121-00 Clip |
90468-18121-00 |
from US $1.28 |
||
|
43
|
43
5RU-2475H-10-00 Bracket, Seat Lever 1 |
5RU-2475H-10-00 |
from US $21.25 |
||
|
44
|
44
92012-08020-00 Bolt, Button Head |
92012-08020-00 |
from US $1.66 |
||
|
45
|
45
5RU-21629-00-00 Guard, Mud |
5RU-21629-00-00 |
from US $50.15 |
||
|
46
|
46
90109-06208-00 Bolt |
90109-06208-00 |
from US $1.84 |
||
|
47
|
47
90183-06069-00 Nut, Spring |
90183-06069-00 |
from US $3.72 |
||
|
48
|
48
5RU-24780-00-00 Seat Lock Assy |
5RU-24780-00-00 |
from US $139.54 |
||
|
49
|
49
5RU-81860-00-00 Switch Assy |
5RU-81860-00-00 |
from US $28.76 |
||
|
50
|
50
95822-06020-00 Bolt, Flange |
95822-06020-00 |
from US $1.13 |
||
| replacement | |||||
|
50
|
50
95817-06020-00 Bolt, Flange |
95817-06020-00 |
from US $1.25 |
||
|
51
|
51
90201-06077-00 Washer, Plate |
90201-06077-00 |
from US $1.70 |
||
|
52
|
52
90464-16061-00 Band |
90464-16061-00 |
from US $1.28 |
||
| replacement | |||||
|
52
|
52
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
53
|
53
5RU-2478E-10-00 Cable, Seat Lock |
5RU-2478E-10-00 |
US $57.64 |
||
|
54
|
54
92012-05010-00 Bolt, Button Head |
92012-05010-00 |
from US $1.66 |
||
|
55
|
55
3TB-28217-00-00 Damper 1 |
3TB-28217-00-00 |
from US $2.13 |
||
|
62
|
62
5RU-21668-00-00 Label, Tire |
5RU-21668-00-00 |
from US $2.27 |
||
|
63
|
63
5RU-24790-20-00 Seat Back AssyUr for sm1,smx |
5RU-24790-20-00 |
from US $186.52 |
||
|
63
|
63
5RU-24790-30-00 Seat Back AssyUr for dnmb |
5RU-24790-30-00 |
from US $186.52 |
||
|
64
|
64
5RU-24791-20-00 Cover, Seat BackUr for sm1,smx |
5RU-24791-20-00 |
from US $85.24 |
||
| replacement | |||||
|
64
|
64
5RU-24791-21-00 Ur for sm1,smx |
5RU-24791-21-00 |
US $81.61 |
||
|
64
|
64
5RU-24791-30-00 Cover, Seat BackFor dnmb |
5RU-24791-30-00 |
from US $78.37 |
||
|
65
|
65
90387-08022-00 Collar |
90387-08022-00 |
from US $7.23 |
||
|
66
|
66
90111-08061-00 Bolt, Hex. Socket Button |
90111-08061-00 |
from US $4.39 |
||
|
67
|
67
97702-50016-00 Screw, Tapping |
97702-50016-00 |
from US $1.41 |
||
| replacement | |||||
|
67
|
67
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $2.08 |
||
|
68
|
68
5RU-28100-00-00 Tool Kit |
5RU-28100-00-00 |
from US $25.50 |
||
