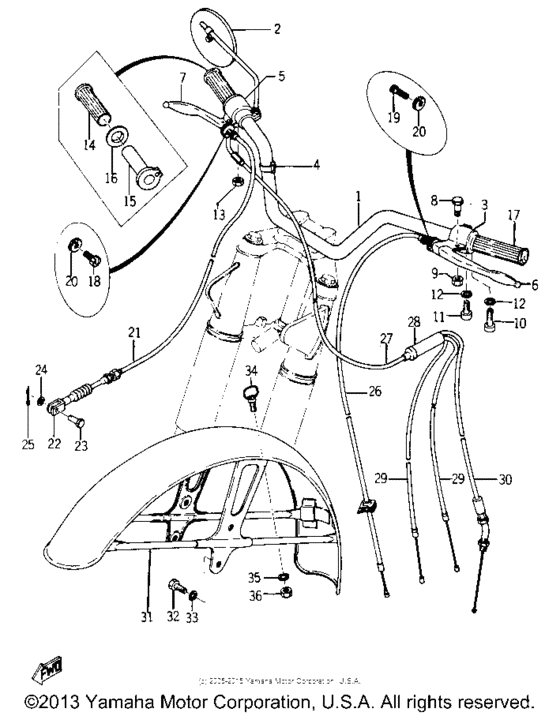

Handle wire - front fender Diagram Yamaha YR1/ YR2
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 200
- Model
- YR2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-26111-00-00
Handle
|
156-26111-00-00 |
— | ||
|
1
|
1
156-26111-10-00
Handlebar
UP |
156-26111-10-00 |
— | ||
|
1
|
1
222-26111-00-00
Handlebar
|
222-26111-00-00 |
— | ||
|
2
|
2
253-26290-00-00
Mirror Assembly
|
253-26290-00-00 |
— | ||
|
3
|
3
168-82910-09-00
Lever Holder Assembly 1
UP |
168-82910-09-00 |
— | ||
|
4
|
4
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
5
|
5
156-82820-10-94
Lever Holder Assembly 2
UP |
156-82820-10-94 |
— | ||
|
6
|
6
150-83912-00-38
Lever L
|
150-83912-00-38 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
218-83922-30-38
Lever R
|
218-83922-30-38 |
— | ||
|
8
|
8
901-09063-33-00
Bolt
|
901-09063-33-00 |
— | ||
|
9
|
9
95301-06700-00 Nut |
95301-06700-00 |
from US $1.43 |
||
| replacements | |||||
|
9
|
9
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
9
|
9
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
10
|
10
98580-05020-00 Screw, Pan HeadON 168-82910-09-00 156-82 |
98580-05020-00 |
from US $1.56 |
||
|
10
|
10
98501-05018-00 Screw, Pan HeadON 168-82910-00 156-82 |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
10
|
10
98507-05018-00 Screw, Pan HeadON 168-82910-00 156-82 |
98507-05018-00 |
from US $1.56 |
||
|
10
|
10
98580-05018-00 Screw Panhead (669)ON 168-82910-00 156-82 |
98580-05018-00 |
from US $2.27 |
||
|
11
|
11
98503-05025-00 Screw, Pan HeadON 168-82910-09-00 156-82 |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
11
|
11
985-80055-25-00 Screw, Pan HeadON 168-82910-09-00 156-82 |
985-80055-25-00 |
from US $1.33 |
||
|
11
|
11
925-03050-25-00
Screw, Pan Head
ON 168-82910-00 156-82 |
925-03050-25-00 |
— | ||
|
12
|
12
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
13
|
13
90170-10038-00 Nut, Hexagon |
90170-10038-00 |
from US $4.53 |
||
|
14
|
14
156-26242-00-00
Grip (Rh)
RH |
156-26242-00-00 |
— | ||
|
15
|
15
1V1-26243-00-00 Tube, Thrtl Guide |
1V1-26243-00-00 |
from US $17.10 |
||
|
16
|
16
150-26249-00-00
Ring, Leaf
|
150-26249-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
156-26241-00-00
Grip (Lh)
LH |
156-26241-00-00 |
— | ||
|
18
|
18
90123-08013-00 Bolt |
90123-08013-00 |
from US $3.40 |
||
| replacements | |||||
|
18
|
18
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
18
|
18
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
19
|
19
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
|
20
|
20
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
20
|
20
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
21
|
21
246-26341-10-00
Cable, Brake
UP |
246-26341-10-00 |
— | ||
|
21
|
21
174-26341-10-00
Cable, Brake
|
174-26341-10-00 |
— | ||
|
22
|
22
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
23
|
23
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
24
|
24
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
25
|
25
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
25
|
25
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
26
|
26
168-26335-00-00
Cable, clutch
|
168-26335-00-00 |
— | ||
|
26
|
26
168-26335-10-00
Cable, clutch
UP |
168-26335-10-00 |
— | ||
|
26
|
26
222-26335-00-00
Cable, clutch
|
222-26335-00-00 |
— | ||
|
27
|
27
168-26311-10-00
Cable, Throttle 1
STD OR UP |
168-26311-10-00 |
— | ||
|
27
|
27
156-26311-00-00
Wire, Throttle 1
1 |
156-26311-00-00 |
— | ||
|
28
|
28
156-26261-01-00
Cylinder, Wire
|
156-26261-01-00 |
— | ||
|
29
|
29
168-26312-01-00
Cable, Throttle 2
|
168-26312-01-00 |
— | ||
|
30
|
30
168-26321-00-00
Cable, Pump
|
168-26321-00-00 |
— | ||
|
30
|
30
236-26321-00-00
Cable, Pump
|
236-26321-00-00 |
— | ||
|
31
|
31
235-21510-00-00
Fender, Front
|
235-21510-00-00 |
— | ||
|
32
|
32
97313-08012-00 Bolt (661)661 |
97313-08012-00 |
from US $3.12 |
||
| replacements | |||||
|
32
|
32
999-99999-99-00
Not Available
661 |
999-99999-99-00 |
— | ||
|
32
|
32
97013-08012-00 Bolt661 |
97013-08012-00 |
from US $3.12 |
||
|
33
|
33
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
34
|
34
152-21518-00-00
Holder, Wire
|
152-21518-00-00 |
— | ||
|
35
|
35
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
36
|
36
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
