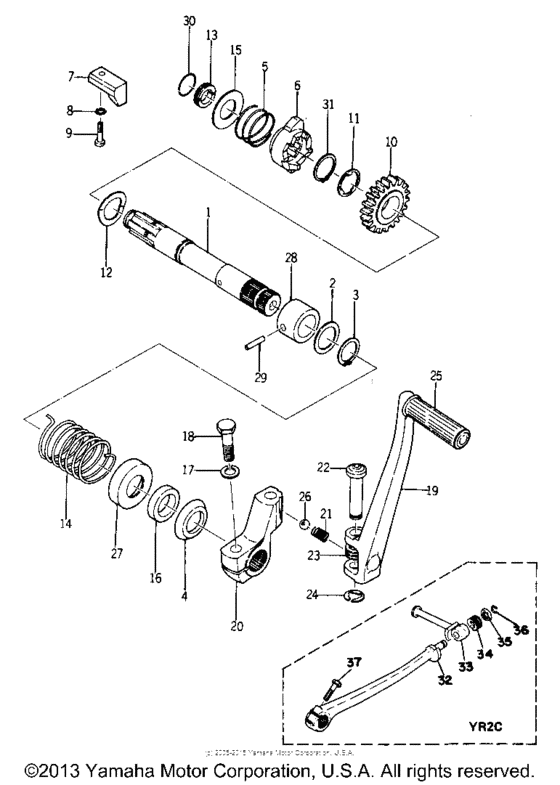

Kick - starter Diagram Yamaha YR1/ YR2
- Year
- 1968
- Sales region
- USA
- Engine Capacity
- 200
- Model
- YR2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
168-15661-00-00
Axle, Kick
|
168-15661-00-00 |
— | ||
|
2
|
2
90201-20275-00 Washer, Plate |
90201-20275-00 |
from US $1.70 |
||
| replacement | |||||
|
2
|
2
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.70 |
||
|
3
|
3
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
4
|
4
168-15663-00-00
Seal
|
168-15663-00-00 |
— | ||
|
5
|
5
90501-16107-00 Spring, Compression |
90501-16107-00 |
from US $2.83 |
||
|
6
|
6
168-15671-00-00
Wheel, Ratchet
|
168-15671-00-00 |
— | ||
|
7
|
7
168-15674-03-00
Guide, Ratchet Whl
|
168-15674-03-00 |
— | ||
|
8
|
8
92901-06400-00
Washer, Tooth
|
92901-06400-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
168-15655-00-00
Plt, Rchet Whl Gde
|
168-15655-00-00 |
— | ||
|
9
|
9
901-16061-80-00 Bolt, Stud |
901-16061-80-00 |
US $2.69 |
||
|
10
|
10
168-15641-00-00
Gear, Kick
|
168-15641-00-00 |
— | ||
|
11
|
11
902-14160-09-00
Washer, Claw (168-15653-00)
168-15653-00 |
902-14160-09-00 |
— | ||
|
12
|
12
902-06200-47-00
Washer, Wave
|
902-06200-47-00 |
— | ||
|
13
|
13
137-15654-00-00 Holder, Kick Gear |
137-15654-00-00 |
US $16.06 |
||
|
14
|
14
905-08320-58-00
Spring, Torsion
|
905-08320-58-00 |
— | ||
|
15
|
15
90201-155K6-00 Washer, Plain (1Jl) |
90201-155K6-00 |
from US $2.05 |
||
|
16
|
16
93101-20048-00 Oil Seal |
93101-20048-00 |
from US $6.40 |
||
| replacement | |||||
|
16
|
16
93102-20484-00 Oil Seal |
93102-20484-00 |
from US $4.38 |
||
|
17
|
17
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
18
|
18
973-13080-30-00
Bolt
|
973-13080-30-00 |
— | ||
| replacements | |||||
|
18
|
18
970-24080-30-00 Bolt |
970-24080-30-00 |
from US $1.55 |
||
|
18
|
18
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
18
|
18
970-13080-30-00 Bolt |
970-13080-30-00 |
from US $3.47 |
||
|
19
|
19
170-15611-00-00
Crank, Kick
|
170-15611-00-00 |
— | ||
|
20
|
20
2G2-15620-00-00
Kick Crank Assembly (168-15621-
168-15621- |
2G2-15620-00-00 |
— | ||
|
21
|
21
90501-15091-00
Spring, Compression
|
90501-15091-00 |
— | ||
|
22
|
22
168-15624-00-00
Pin, Kick Crank
|
168-15624-00-00 |
— | ||
|
23
|
23
214-15625-00-00
Spring, Kick Crank
|
214-15625-00-00 |
— | ||
|
24
|
24
904-30080-06-00
New Genuine Part
IN PRICE BOOK E-8 |
904-30080-06-00 |
— | ||
|
25
|
25
156-15618-01-00 Cover, Kick Lever |
156-15618-01-00 |
from US $4.58 |
||
|
26
|
26
93505-16006-00 Ball |
93505-16006-00 |
from US $1.70 |
||
|
27
|
27
168-15664-00-00
Guide, Spring
|
168-15664-00-00 |
— | ||
|
28
|
28
168-15682-00-00
Bush, Kick Axle
|
168-15682-00-00 |
— | ||
|
29
|
29
93606-20044-00 Pin, Dowel |
93606-20044-00 |
from US $2.55 |
||
|
30
|
30
168-15673-00-00
Clip
|
168-15673-00-00 |
— | ||
|
31
|
31
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.94 |
||
|
32
|
32
137-15610-02-93
Kick Crank Assembly
|
137-15610-02-93 |
— | ||
|
33
|
33
214-15612-09-00
Lever, Kick
|
214-15612-09-00 |
— | ||
|
34
|
34
90504-18031-00 Spring, Compression |
90504-18031-00 |
from US $3.05 |
||
|
35
|
35
90209-10108-00
Washer,spec'l Shape
|
90209-10108-00 |
— | ||
| replacement | |||||
|
35
|
35
902-09102-10-00
Washer (5L1)
|
902-09102-10-00 |
— | ||
|
36
|
36
934-40100-28-00
Circlip, Outer
|
934-40100-28-00 |
— | ||
|
37
|
37
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
37
|
37
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
