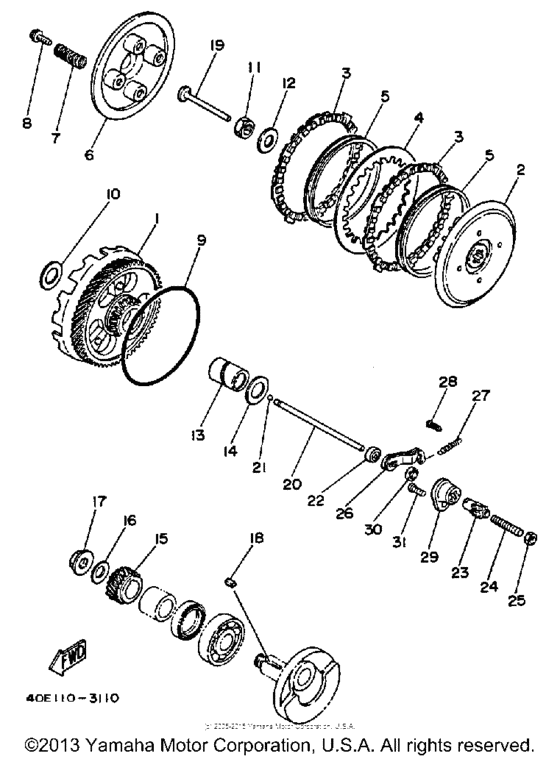

Clutch Diagram Yamaha YSR50
- Year
- 1989
- Sales region
- USA
- Engine Capacity
- 50
- Model
- YSR50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5L3-16150-00-00
Pri. Drvn Gr Comp. (19/68T) (2U
GR COMP. 19/68T 2U COMP. 19/68T |
5L3-16150-00-00 |
— | ||
|
2
|
2
257-16371-01-00
Boss, Clutch
|
257-16371-01-00 |
— | ||
|
3
|
3
131-16321-00-00
Plate, Friction
|
131-16321-00-00 |
— | ||
| replacement | |||||
|
3
|
3
4EU-16321-00-00 Plate, Friction |
4EU-16321-00-00 |
from US $23.52 |
||
|
4
|
4
131-16324-00-00 Plate, Clutch 1 |
131-16324-00-00 |
from US $15.41 |
||
|
5
|
5
131-16367-00-00 Ring, Cushion |
131-16367-00-00 |
from US $13.12 |
||
|
6
|
6
257-16351-00-00 Plate, Pressure 1 |
257-16351-00-00 |
from US $21.17 |
||
|
7
|
7
90501-20122-00 Spring, Compression |
90501-20122-00 |
from US $3.83 |
||
|
8
|
8
90119-05001-00 Bolt, With Washer |
90119-05001-00 |
from US $2.08 |
||
|
9
|
9
93210-99103-00 O-Ring |
93210-99103-00 |
from US $6.38 |
||
|
10
|
10
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
|
11
|
11
90170-12060-00 Nut |
90170-12060-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
90170-12337-00 Nut(37F) |
90170-12337-00 |
from US $2.31 |
||
|
12
|
12
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
12
|
12
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
13
|
13
90560-17123-00 Spacer |
90560-17123-00 |
US $32.54 |
||
|
14
|
14
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
|
15
|
15
353-16111-01-00
Gear, Pri Drive
|
353-16111-01-00 |
— | ||
|
16
|
16
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
US $1.70 |
||
| replacement | |||||
|
16
|
16
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $1.04 |
||
|
17
|
17
901-79122-44-00
Nut
|
901-79122-44-00 |
— | ||
| replacement | |||||
|
17
|
17
90179-12659-00 Nut |
90179-12659-00 |
from US $1.81 |
||
|
18
|
18
90282-05005-00 Key, Straight |
90282-05005-00 |
from US $1.70 |
||
|
19
|
19
137-16356-00-00 Rod, Push 1 |
137-16356-00-00 |
from US $18.99 |
||
|
20
|
20
353-16357-00-00 Rod, Push 2 |
353-16357-00-00 |
from US $12.49 |
||
|
21
|
21
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
21
|
21
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
22
|
22
93102-04382-00 Oil Seal, Sd-Type |
93102-04382-00 |
from US $6.94 |
||
|
23
|
23
241-16341-01-00 Screw, Push |
241-16341-01-00 |
from US $16.01 |
||
|
24
|
24
901-13060-13-00 Bolt, Set |
901-13060-13-00 |
from US $2.69 |
||
|
25
|
25
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
| replacement | |||||
|
25
|
25
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
26
|
26
451-16342-00-00 Lever, Push |
451-16342-00-00 |
from US $25.43 |
||
|
27
|
27
90506-07066-00 Spring, Tension |
90506-07066-00 |
from US $4.25 |
||
|
28
|
28
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
29
|
29
353-16396-00-00 Housing, Push Screw |
353-16396-00-00 |
from US $32.16 |
||
|
30
|
30
93104-10085-00 Oil Seal, So-Type |
93104-10085-00 |
from US $2.36 |
||
|
31
|
31
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
31
|
31
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
