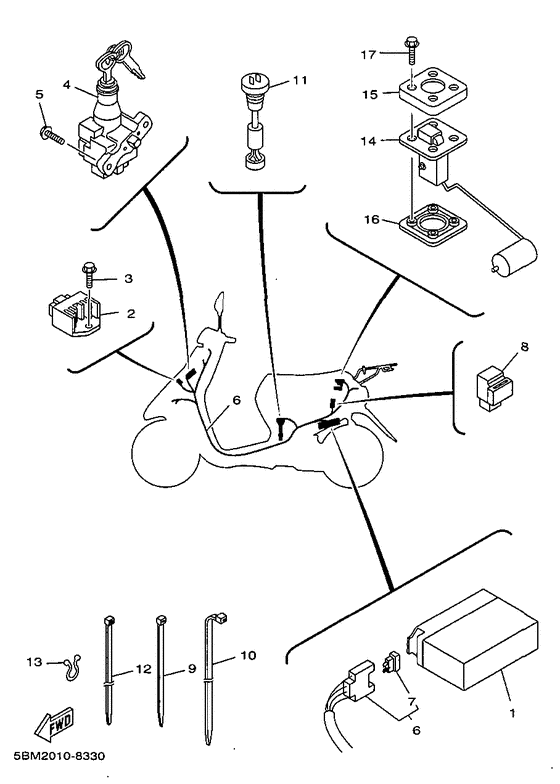

Electrical 2 Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3YJ-82100-03-00
Battery (Gt4B-5 12V-2.5Ah)
|
3YJ-82100-03-00 |
— | ||
| replacement | |||||
|
01
|
01
GT4-B5000-00-00
Battery
|
GT4-B5000-00-00 |
— | ||
|
02
|
02
3LA-81960-01-00 Rectifier & Regulator Assy |
3LA-81960-01-00 |
from US $81.79 |
||
|
03
|
03
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
04
|
04
5BM-82501-00-00 Main Switch Steering Lock |
5BM-82501-00-00 |
US $98.65 |
||
|
05
|
05
90149-06309-00 Screw |
90149-06309-00 |
from US $1.98 |
||
|
06
|
06
5BM-82590-00-00
Wire Harness Assy
|
5BM-82590-00-00 |
— | ||
| replacement | |||||
|
06
|
06
5BM-82590-01-00
Wire Harness Assy
|
5BM-82590-01-00 |
— | ||
|
07
|
07
3YJ-82151-00-00 Fuse (7.5A-Bl) |
3YJ-82151-00-00 |
from US $1.56 |
||
| replacement | |||||
|
07
|
07
2KW-82151-00-00 Fuse (7.5A-Bl) |
2KW-82151-00-00 |
from US $1.56 |
||
|
08
|
08
27V-81940-02-00
Starter Relay Assy
Tateishi |
27V-81940-02-00 |
— | ||
| replacement | |||||
|
08
|
08
29U-81950-93-00 Relay Assy (Aca12115-1)Tateishi |
29U-81950-93-00 |
from US $34.06 |
||
|
09
|
09
90465-13152-00 Band |
90465-13152-00 |
from US $1.28 |
||
| replacement | |||||
|
09
|
09
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.28 |
||
|
10
|
10
90460-15126-00 Clamp, Hose |
90460-15126-00 |
from US $1.56 |
||
|
11
|
11
5BM-85720-00-00 Oil Level Gauge Assy |
5BM-85720-00-00 |
US $39.65 |
||
| replacement | |||||
|
11
|
11
5BM-85720-01-00 Oil Level Gauge Assy |
5BM-85720-01-00 |
US $39.65 |
||
|
12
|
12
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.56 |
||
|
13
|
13
904-65181-47-00 Clamp |
904-65181-47-00 |
from US $1.70 |
||
|
14
|
14
5BM-85752-00-00 Sender Unit Assy, Fuel Meter |
5BM-85752-00-00 |
US $88.56 |
||
|
15
|
15
2JG-85757-00-00 Retainer |
2JG-85757-00-00 |
from US $4.53 |
||
|
16
|
16
4US-85753-00-00 Gasket, Sender Unit |
4US-85753-00-00 |
from US $3.54 |
||
|
17
|
17
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
