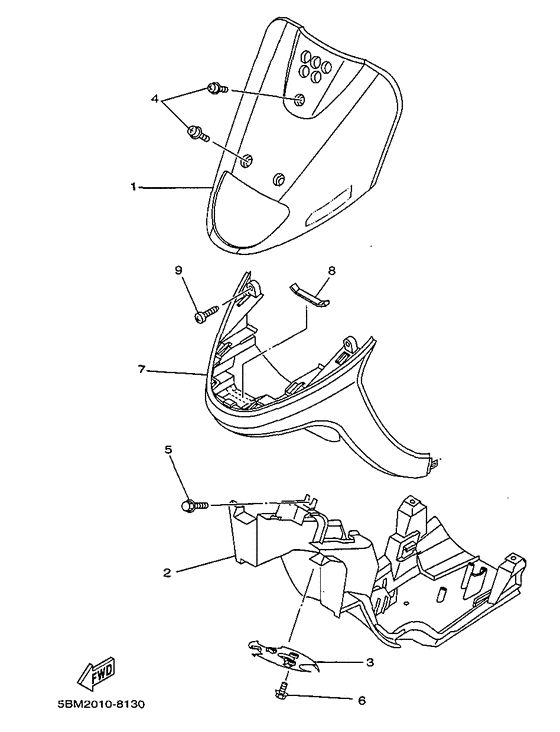

Fender Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-21511-A0-4B
Fender, Front
Bl2 |
5BM-21511-A0-4B |
— | ||
| replacement | |||||
|
01
|
01
5BM-21511-A0-P2
Fender, Front
Bl2 |
5BM-21511-A0-P2 |
— | ||
|
01
|
01
5BM-21511-A0-P0
Fender, Front
Dprc2 |
5BM-21511-A0-P0 |
— | ||
|
01
|
01
5BM-21511-A0-P1 Fender, FrontDpbmc |
5BM-21511-A0-P1 |
US $163.50 |
||
|
01
|
01
5BM-21511-A0-T9 Fender, FrontComs |
5BM-21511-A0-T9 |
US $214.15 |
||
|
02
|
02
5BM-21552-00-00
Fender, Inner
|
5BM-21552-00-00 |
— | ||
|
03
|
03
5BM-21553-00-00 Fender, Inner 2 |
5BM-21553-00-00 |
US $8.23 |
||
|
04
|
04
90159-06178-00 Screw, With Washer(3Yj) |
90159-06178-00 |
from US $2.13 |
||
|
05
|
05
958-07060-12-00
Bolt, Flange
|
958-07060-12-00 |
— | ||
| replacement | |||||
|
05
|
05
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
06
|
06
90119-06018-00 Bolt, With Washer |
90119-06018-00 |
from US $1.56 |
||
| replacement | |||||
|
06
|
06
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.21 |
||
|
07
|
07
5BM-21519-00-00 Mole, FenderUr yb |
5BM-21519-00-00 |
US $129.73 |
||
|
07
|
07
5BM-21519-10-00
Mole, Fender
Ur gray |
5BM-21519-10-00 |
— | ||
| replacement | |||||
|
07
|
07
999-99999-99-00
Not Available
Ur gray |
999-99999-99-00 |
— | ||
|
08
|
08
7TD-2289M-00-00 Seal 23 |
7TD-2289M-00-00 |
US $24.38 |
||
| replacement | |||||
|
08
|
08
7TD-2289A-29-00 Seal,16 |
7TD-2289A-29-00 |
US $24.38 |
||
|
09
|
09
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
09
|
09
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
