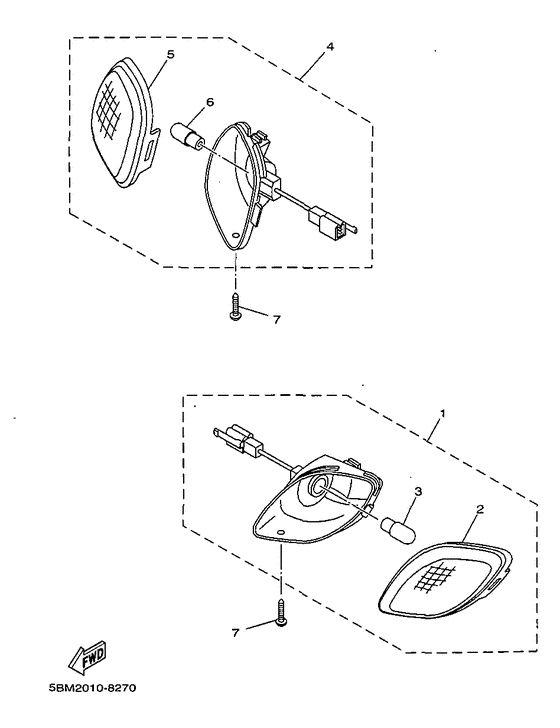

Flasher light Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-83310-00-00
Front Flasher Light Assy 1
|
5BM-83310-00-00 |
— | ||
|
02
|
02
5BM-83312-00-00 Lens, Flasher |
5BM-83312-00-00 |
from US $6 |
||
|
03
|
03
1YT-83311-00-00 Bulb(12V-10W) |
1YT-83311-00-00 |
from US $3.54 |
||
| replacement | |||||
|
03
|
03
2DP-H4714-00-00 Bulb (12V-10W) |
2DP-H4714-00-00 |
US $3.54 |
||
|
04
|
04
5BM-83320-00-00
Front Flasher Light Assy 2
|
5BM-83320-00-00 |
— | ||
|
05
|
05
5BM-83322-00-00 Lens, Flasher 2 |
5BM-83322-00-00 |
US $6.34 |
||
|
06
|
06
1YT-83311-00-00 Bulb(12V-10W) |
1YT-83311-00-00 |
from US $3.54 |
||
| replacement | |||||
|
06
|
06
2DP-H4714-00-00 Bulb (12V-10W) |
2DP-H4714-00-00 |
US $3.54 |
||
|
07
|
07
97707-50012-00 Screw, Truss Head Tapping |
97707-50012-00 |
from US $1.28 |
||
