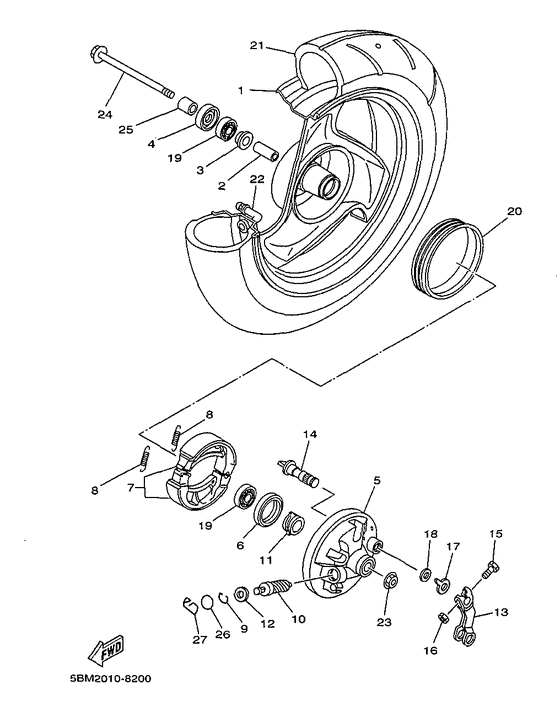

Front wheel Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3YJ-25180-00-35 Wheel, FrontSl |
3YJ-25180-00-35 |
from US $158.27 |
||
|
02
|
02
90560-10289-00 Spacer |
90560-10289-00 |
from US $6.23 |
||
|
03
|
03
25K-25116-00-00 Flange, Spacer 2 |
25K-25116-00-00 |
from US $1.46 |
||
|
04
|
04
93106-17015-00 Oil Seal |
93106-17015-00 |
from US $5.81 |
||
|
05
|
05
5AU-25121-02-35 Plate, Brake ShoeSl |
5AU-25121-02-35 |
US $116.32 |
||
|
06
|
06
93109-34057-00 Oil Seal |
93109-34057-00 |
from US $3.83 |
||
|
07
|
07
4JP-W2535-00-00 Brake Shoe Kit |
4JP-W2535-00-00 |
from US $22.25 |
||
| replacement | |||||
|
07
|
07
5BM-W253A-00-00 Brake Shoe Kit |
5BM-W253A-00-00 |
from US $24.09 |
||
|
08
|
08
90506-14081-00 Spring, Tension |
90506-14081-00 |
from US $1.35 |
||
|
09
|
09
2T4-25137-00-00 Ring, Stop |
2T4-25137-00-00 |
from US $3.68 |
||
|
10
|
10
14T-25138-00-00 Gear, Meter |
14T-25138-00-00 |
from US $7.77 |
||
|
11
|
11
14T-25135-00-00 Gear, Drive |
14T-25135-00-00 |
from US $12.60 |
||
|
12
|
12
90201-064L6-00 Washer, Plate |
90201-064L6-00 |
from US $1.70 |
||
|
13
|
13
2T4-25155-00-00 Lever, Camshaft 1 |
2T4-25155-00-00 |
from US $5.96 |
||
|
14
|
14
3KJ-25151-00-00 Camshaft |
3KJ-25151-00-00 |
from US $23.20 |
||
|
15
|
15
97007-05020-00 Bolt |
97007-05020-00 |
from US $1.42 |
||
| replacements | |||||
|
15
|
15
90101-05396-00 Bolt (2E9) |
90101-05396-00 |
from US $1.70 |
||
|
15
|
15
970-27050-20-00
Bolt
|
970-27050-20-00 |
— | ||
|
16
|
16
95307-05600-00 Nut(N28) |
95307-05600-00 |
from US $1.26 |
||
| replacement | |||||
|
16
|
16
95317-05600-00 Nut |
95317-05600-00 |
from US $2.13 |
||
|
17
|
17
3L8-2513A-00-00 Plate, Indicator |
3L8-2513A-00-00 |
from US $2.98 |
||
|
18
|
18
25K-25159-00-00
Seal, Camshaft
|
25K-25159-00-00 |
— | ||
|
19
|
19
93306-20006-00 Bearing (B6200)Ntn |
93306-20006-00 |
from US $10.63 |
||
| replacement | |||||
|
19
|
19
93306-20009-00 Bearing (3R0)Ntn |
93306-20009-00 |
from US $12.89 |
||
|
20
|
20
3KJ-25185-00-00
Ring 1
|
3KJ-25185-00-00 |
— | ||
|
21
|
21
94130-1012F-00
Tire
Ur inoue |
94130-1012F-00 |
— | ||
|
21
|
21
94130-1012G-00
Tire
Ur chengshin |
94130-1012G-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
Ur chengshin |
999-99999-99-00 |
— | ||
|
22
|
22
939-00000-41-00 Valve, Rim |
939-00000-41-00 |
from US $15.30 |
||
|
23
|
23
90185-10154-00 Nut, Self-Locking |
90185-10154-00 |
from US $2.69 |
||
|
24
|
24
3YJ-25181-00-00 Axle, Wheel |
3YJ-25181-00-00 |
from US $9.34 |
||
|
25
|
25
90560-10360-00 Spacer |
90560-10360-00 |
from US $7.65 |
||
|
26
|
26
93210-10010-00 O-Ring |
93210-10010-00 |
from US $1.34 |
||
| replacement | |||||
|
26
|
26
93210-10096-00 O-Ring |
93210-10096-00 |
from US $1.70 |
||
|
27
|
27
2E9-25137-01-00 Ring, Stop |
2E9-25137-01-00 |
from US $3.40 |
||
