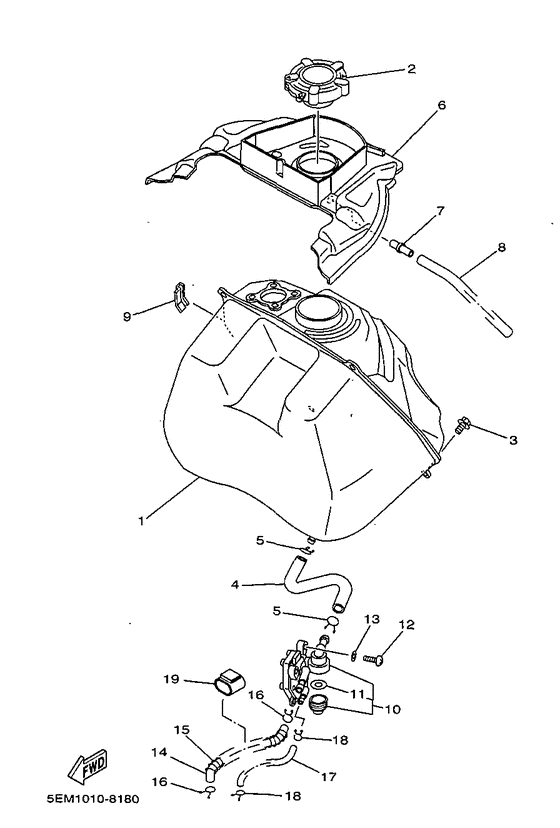

Fuel tank Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-24110-10-00 Fuel Tank Comp |
5BM-24110-10-00 |
US $234.87 |
||
| replacement | |||||
|
01
|
01
5BM-24110-11-00 Fuel Tank Comp |
5BM-24110-11-00 |
US $234.87 |
||
|
02
|
02
5BM-24610-01-00 Cap Assy |
5BM-24610-01-00 |
US $48.91 |
||
| replacement | |||||
|
02
|
02
5BM-24610-02-00 Cap Assy |
5BM-24610-02-00 |
US $48.91 |
||
|
03
|
03
958-27060-12-00
Bolt, Flange
|
958-27060-12-00 |
— | ||
| replacement | |||||
|
03
|
03
958-17060-12-00 Bolt, Flange |
958-17060-12-00 |
from US $1.07 |
||
|
04
|
04
5BM-24312-00-00 Pipe 2 |
5BM-24312-00-00 |
US $9.40 |
||
|
05
|
05
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
05
|
05
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
05
|
05
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
06
|
06
5BM-2414A-00-00
Cover, Filler
|
5BM-2414A-00-00 |
— | ||
|
07
|
07
4JP-21753-00-00 Boss, Connector |
4JP-21753-00-00 |
from US $1.98 |
||
|
08
|
08
91A20-07056-00 Tube, Flexible Vinyl |
91A20-07056-00 |
US $7.51 |
||
|
09
|
09
4GY-23426-00-00 Damper |
4GY-23426-00-00 |
from US $1.75 |
||
|
10
|
10
3KJ-24500-02-00 Fuel Cock Assy (1) |
3KJ-24500-02-00 |
from US $84.97 |
||
|
11
|
11
4X8-24565-00-00
Gasket
|
4X8-24565-00-00 |
— | ||
| replacement | |||||
|
11
|
11
4X8-24565-10-00 GASKET |
4X8-24565-10-00 |
from US $7.79 |
||
|
12
|
12
985-07060-12-00
Screw, Pan Head
|
985-07060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
985-17060-12-00 Screw, Pan Head |
985-17060-12-00 |
from US $1.34 |
||
|
13
|
13
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
14
|
14
4JP-24311-00-00 Pipe, Fuel 1 |
4JP-24311-00-00 |
from US $16.11 |
||
| replacement | |||||
|
14
|
14
3YR-24312-00-00 Pipe, Fuel 1 |
3YR-24312-00-00 |
from US $16.72 |
||
|
15
|
15
90501-08668-00 Spring, Compression |
90501-08668-00 |
from US $4.53 |
||
|
16
|
16
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
16
|
16
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
17
|
17
90445-082K4-00 Hose (L320) |
90445-082K4-00 |
from US $4.68 |
||
| replacement | |||||
|
17
|
17
904-45086-J3-00 Hose (L320) |
904-45086-J3-00 |
from US $4.68 |
||
|
18
|
18
90467-08075-00 Clip |
90467-08075-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
90467-08021-00 Clip |
90467-08021-00 |
from US $1.70 |
||
|
19
|
19
5BM-2419A-00-00 Holder |
5BM-2419A-00-00 |
from US $3.46 |
||
