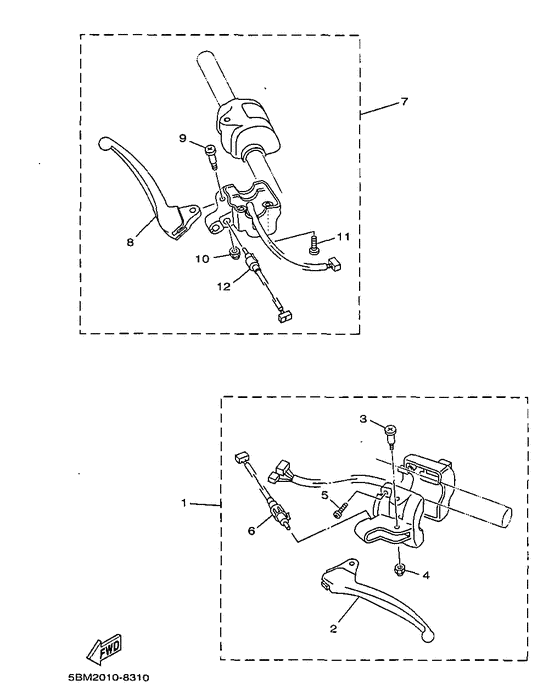

Handle switch & lever Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-82910-00-00 Lever Holder Assy (Left) |
5BM-82910-00-00 |
US $161.65 |
||
| replacement | |||||
|
01
|
01
5BM-82910-01-00 Lever Holder Assy (Left) |
5BM-82910-01-00 |
US $161.65 |
||
|
02
|
02
2T4-83912-02-00 Lever 1 |
2T4-83912-02-00 |
from US $13.03 |
||
| replacement | |||||
|
02
|
02
2T4-83912-03-00 Lever 1 |
2T4-83912-03-00 |
from US $8.94 |
||
|
03
|
03
90149-06175-00 Screw |
90149-06175-00 |
from US $3.54 |
||
|
04
|
04
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
05
|
05
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.42 |
||
|
06
|
06
5DW-83980-00-00 Front Stop Switch Assy |
5DW-83980-00-00 |
US $22.53 |
||
| replacements | |||||
|
06
|
06
3AB-83980-01-00 Front Stop Switch Assy |
3AB-83980-01-00 |
US $19.09 |
||
|
06
|
06
3AB-83980-00-00 Front Stop Switch Assy |
3AB-83980-00-00 |
US $22.53 |
||
|
07
|
07
5BM-82920-00-00 Lever Holder Assy (Right) |
5BM-82920-00-00 |
US $139.54 |
||
|
08
|
08
2T4-83922-02-00 Lever 2 |
2T4-83922-02-00 |
from US $12.61 |
||
| replacement | |||||
|
08
|
08
2T4-83922-03-00 Lever 2 |
2T4-83922-03-00 |
from US $8.94 |
||
|
09
|
09
90149-06175-00 Screw |
90149-06175-00 |
from US $3.54 |
||
|
10
|
10
95707-05300-00 Nut, Flange |
95707-05300-00 |
from US $1.42 |
||
|
11
|
11
98507-05045-00 Screw, Pan Head |
98507-05045-00 |
from US $1.42 |
||
|
12
|
12
5DW-83980-00-00 Front Stop Switch Assy |
5DW-83980-00-00 |
US $22.53 |
||
| replacements | |||||
|
12
|
12
3AB-83980-01-00 Front Stop Switch Assy |
3AB-83980-01-00 |
US $19.09 |
||
|
12
|
12
3AB-83980-00-00 Front Stop Switch Assy |
3AB-83980-00-00 |
US $22.53 |
||
