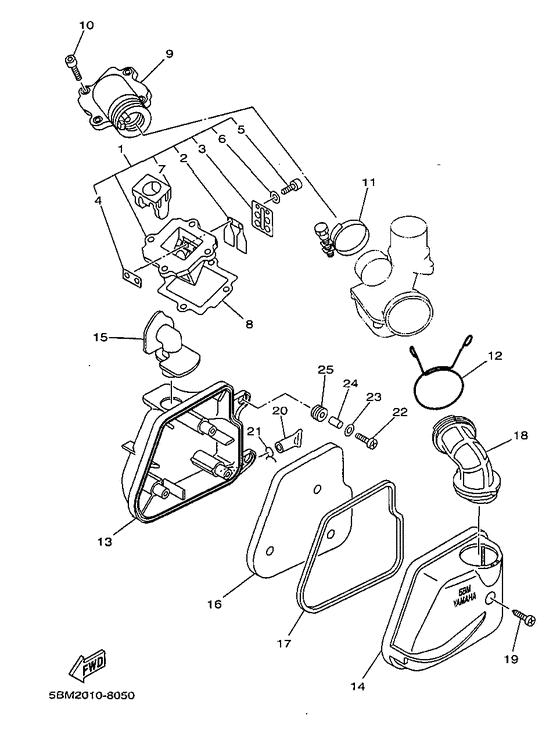

Intake Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-13610-00-00 Reed Valve Assy |
5BM-13610-00-00 |
from US $41.45 |
||
|
02
|
02
5BM-13613-00-00 Reed, Valve |
5BM-13613-00-00 |
from US $10.35 |
||
|
03
|
03
5BM-13616-00-00 Stopper, Reed Valve |
5BM-13616-00-00 |
from US $2.93 |
||
|
04
|
04
5BM-13624-00-00 Plate, Reed Valve |
5BM-13624-00-00 |
from US $2.69 |
||
|
05
|
05
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
05
|
05
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
06
|
06
92907-03600-00 Washer(3Sx) |
92907-03600-00 |
from US $1.07 |
||
|
07
|
07
5BM-13625-00-00 Spacer, Reed Valve |
5BM-13625-00-00 |
from US $10.20 |
||
|
08
|
08
5BM-13621-00-00 Gasket, Valve Seat |
5BM-13621-00-00 |
from US $8.93 |
||
|
09
|
09
5BM-13555-00-00 Manifold, Intake |
5BM-13555-00-00 |
US $37.44 |
||
| replacement | |||||
|
09
|
09
5BM-13555-11-00 Manifold, Intake |
5BM-13555-11-00 |
from US $37.44 |
||
|
10
|
10
91318-06020-00 Bolt |
91318-06020-00 |
from US $1.35 |
||
| replacement | |||||
|
10
|
10
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
11
|
11
90450-32081-00 Hose Clamp Assy |
90450-32081-00 |
from US $7.08 |
||
|
12
|
12
90467-24140-00 Clip(3Vr) |
90467-24140-00 |
from US $3.12 |
||
|
13
|
13
5BM-14411-00-00
Case, Air Cleaner 1
|
5BM-14411-00-00 |
— | ||
|
14
|
14
5BM-14412-00-00
Cap, Cleaner Case 1
|
5BM-14412-00-00 |
— | ||
|
15
|
15
5BM-14437-00-00
Duct
|
5BM-14437-00-00 |
— | ||
|
16
|
16
5BM-14451-00-00 Element, Air Cleaner |
5BM-14451-00-00 |
from US $9.35 |
||
|
17
|
17
3KJ-14452-30-00 Seal |
3KJ-14452-30-00 |
from US $8.93 |
||
| replacement | |||||
|
17
|
17
51Y-14462-00-00 Seal |
51Y-14462-00-00 |
from US $3.32 |
||
|
18
|
18
4JC-14453-01-00 Joint, Air Cleaner 1 |
4JC-14453-01-00 |
from US $26.07 |
||
|
19
|
19
977-07501-25-00 Screw, Tapping |
977-07501-25-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
97707-50525-00 Screw, Tapping |
97707-50525-00 |
from US $1.34 |
||
|
20
|
20
34X-1443E-00-00 Pipe, Drain |
34X-1443E-00-00 |
from US $4.68 |
||
|
21
|
21
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
22
|
22
985-07060-20-00
Screw, Pan Head
|
985-07060-20-00 |
— | ||
| replacement | |||||
|
22
|
22
98517-06020-00 Screw, Pan |
98517-06020-00 |
from US $1.13 |
||
|
23
|
23
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
24
|
24
90387-067V1-00 Collar(3Kj) |
90387-067V1-00 |
from US $1.70 |
||
| replacement | |||||
|
24
|
24
90387-068J5-00 Collar |
90387-068J5-00 |
from US $1.70 |
||
|
25
|
25
90480-12497-00 Grommet |
90480-12497-00 |
from US $1.28 |
||
