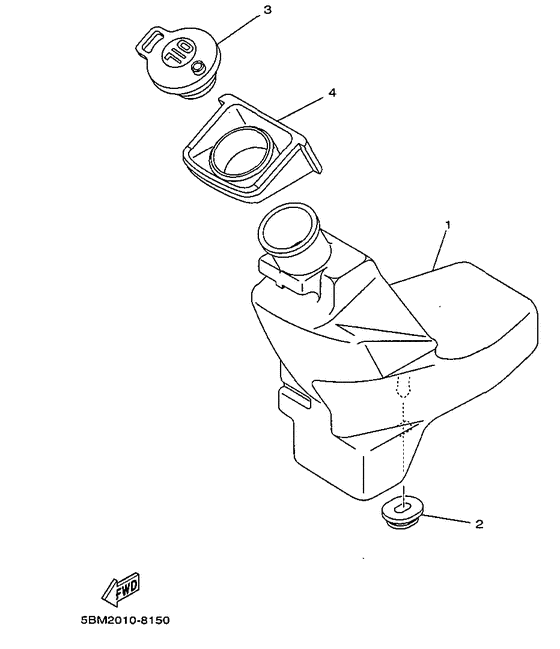

Oil tank Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-21751-00-00 Tank, Oil |
5BM-21751-00-00 |
US $53.19 |
||
|
02
|
02
90480-01288-00
Grommet
|
90480-01288-00 |
— | ||
|
03
|
03
5R2-21771-00-00 Body, Cap |
5R2-21771-00-00 |
from US $19.03 |
||
|
04
|
04
5BM-2172W-00-00 Cover |
5BM-2172W-00-00 |
US $6.58 |
