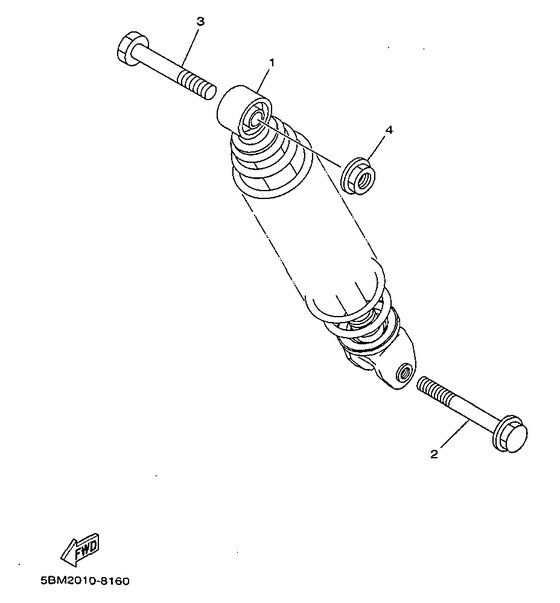

Rear suspension Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4JP-22210-10-00 Shock Absorber Assy, Rear |
4JP-22210-10-00 |
from US $81.05 |
||
| replacement | |||||
|
01
|
01
4JP-22210-11-00 Shock Absorber Assy, Rear |
4JP-22210-11-00 |
from US $83.84 |
||
|
02
|
02
90105-08121-00 Bolt, Flange |
90105-08121-00 |
from US $1.56 |
||
| replacement | |||||
|
02
|
02
95817-08030-00 Bolt, Flange |
95817-08030-00 |
from US $1.07 |
||
|
03
|
03
90101-10776-00 Bolt |
90101-10776-00 |
from US $1.28 |
||
|
04
|
04
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.21 |
||
| replacement | |||||
|
04
|
04
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.56 |
||
