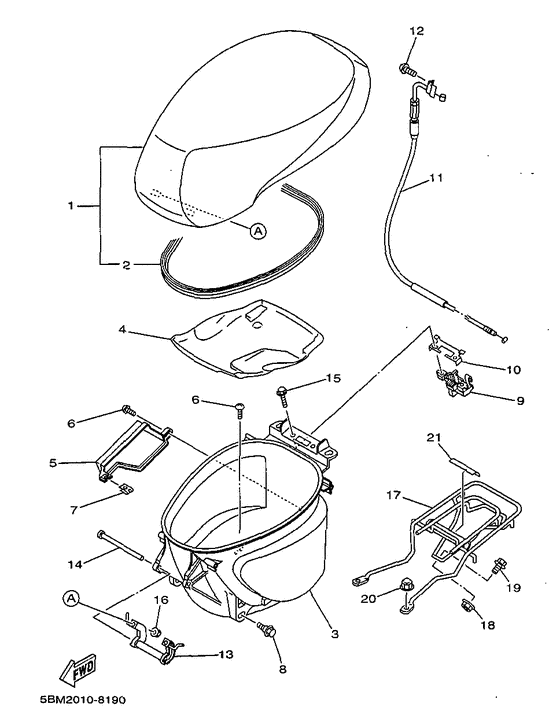

Seat Diagram Yamaha YV50 Jog
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5BM2
- Sales region
- Denmark (010)
- Engine Capacity
- 50
- Model
- YV50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
5BM-24710-00-00 Single Seat Assy |
5BM-24710-00-00 |
US $212.27 |
||
|
02
|
02
5BM-2475M-00-00
Seal
|
5BM-2475M-00-00 |
— | ||
|
03
|
03
5BM-2473R-00-00 Box 1 |
5BM-2473R-00-00 |
US $214.15 |
||
|
04
|
04
5BM-24747-00-00 Damper, Seat |
5BM-24747-00-00 |
US $12.78 |
||
|
05
|
05
5BM-82129-00-00 Cover, Battery |
5BM-82129-00-00 |
US $11.33 |
||
|
06
|
06
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
06
|
06
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
07
|
07
901-83050-42-00 Nut, Spring |
901-83050-42-00 |
from US $1.34 |
||
|
08
|
08
90109-063F1-00 Bolt |
90109-063F1-00 |
from US $1.56 |
||
|
09
|
09
4JP-24780-03-00 Seat Lock Assy |
4JP-24780-03-00 |
from US $60.79 |
||
|
10
|
10
5BM-24732-00-00 Plate |
5BM-24732-00-00 |
US $7.93 |
||
|
11
|
11
5BM-2478E-00-00
Cable, Seat Lock
|
5BM-2478E-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
12
|
12
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.21 |
||
|
13
|
13
5BM-24726-00-00 Hinge, Seat |
5BM-24726-00-00 |
US $23.20 |
||
| replacement | |||||
|
13
|
13
5BM-24726-01-00 Hinge, Seat |
5BM-24726-01-00 |
US $23.20 |
||
|
14
|
14
90241-08018-00 Pin |
90241-08018-00 |
US $4.56 |
||
|
15
|
15
90109-065G5-00 Bolt |
90109-065G5-00 |
from US $2.27 |
||
|
16
|
16
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
17
|
17
5BM-24842-00-00 Carrier, Rear |
5BM-24842-00-00 |
US $142.30 |
||
|
18
|
18
5BM-21719-00-00
Grommet
|
5BM-21719-00-00 |
— | ||
|
19
|
19
95807-08012-00 Bolt, Flange |
95807-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
19
|
19
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
20
|
20
90176-06065-00 Nut, Crown |
90176-06065-00 |
from US $1.33 |
||
|
21
|
21
4LV-24786-00-00
Emblem
|
4LV-24786-00-00 |
— | ||
