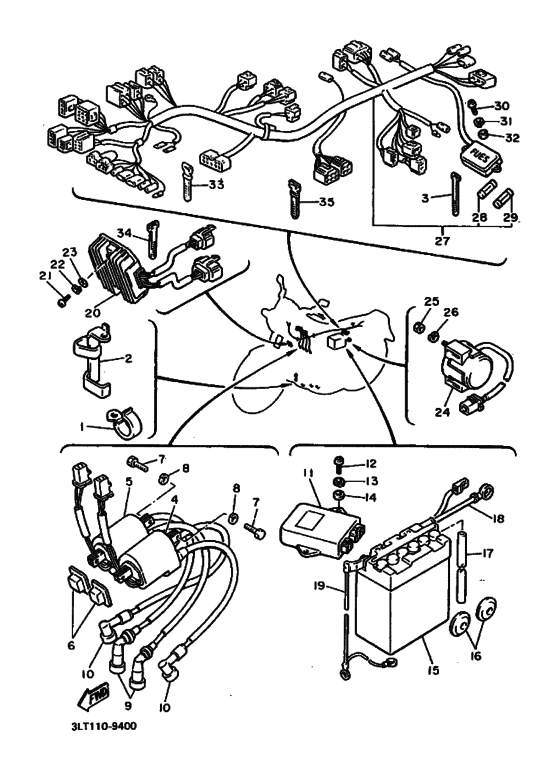

Electrical 1 Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90462-08078-00 Clamp |
90462-08078-00 |
from US $6.23 |
||
|
2
|
2
90462-08087-00 Clamp |
90462-08087-00 |
US $10.63 |
||
|
3
|
3
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
3
|
3
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
3
|
3
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
4
|
4
3LT-82310-00-00
Ignition Coil Assy
|
3LT-82310-00-00 |
— | ||
| replacement | |||||
|
4
|
4
3LT-82310-09-00
UNDER BRACKET COMP.
|
3LT-82310-09-00 |
— | ||
|
5
|
5
3LT-82320-00-00
Ignition Coil Assembly
|
3LT-82320-00-00 |
— | ||
|
6
|
6
4U8-82317-00-00 Damper, Ignition Coil |
4U8-82317-00-00 |
from US $5.38 |
||
|
7
|
7
97001-06020-00 Bolt(78G) |
97001-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
7
|
7
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
8
|
8
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
9
|
9
4G0-82370-21-00 Plug Cap Assy |
4G0-82370-21-00 |
from US $19.69 |
||
| replacements | |||||
|
9
|
9
5EL-82370-00-00 Plug Cap Assy |
5EL-82370-00-00 |
from US $24.92 |
||
|
9
|
9
3NS-82370-00-00 Plug Cap Assy |
3NS-82370-00-00 |
from US $21.77 |
||
|
10
|
10
55X-82370-00-00 Plug Cap Assy |
55X-82370-00-00 |
from US $32.87 |
||
| replacements | |||||
|
10
|
10
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $38.34 |
||
|
10
|
10
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $38.34 |
||
|
11
|
11
3LT-82305-01-00
Ignitor Unit Assembly
|
3LT-82305-01-00 |
— | ||
|
12
|
12
98502-06016-00 Screw, Pan Head(3Js) |
98502-06016-00 |
US $2.77 |
||
| replacement | |||||
|
12
|
12
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
13
|
13
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
14
|
14
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
366-82110-79-00
12N12A-4A-1 Yuasa B
12N12A-4A |
366-82110-79-00 |
— | ||
| replacements | |||||
|
15
|
15
12N-12A4A-1Y-00
CB16CLB GS BATTERY
12N12A-4A |
12N-12A4A-1Y-00 |
— | ||
|
15
|
15
12N-12A4A-1G-00
BLANK KEY 1212
12N12A-4A |
12N-12A4A-1G-00 |
— | ||
|
15
|
15
366-82110-09-00
Battery (12N12A-4A-1)
12N12A-4A |
366-82110-09-00 |
— | ||
|
15
|
15
12N-12A4A-10-00
Bat 12N12A-4A-1 Yu
12N12A-4A |
12N-12A4A-10-00 |
— | ||
|
16
|
16
371-82121-00-00 Pad, Battery |
371-82121-00-00 |
from US $4.39 |
||
|
17
|
17
90445-08348-00 Hose (L1500) |
90445-08348-00 |
from US $10.91 |
||
| replacement | |||||
|
17
|
17
90445-084J0-00 Pipe |
90445-084J0-00 |
from US $8.76 |
||
|
18
|
18
4G0-82115-00-00
Wire, Plus Lead
|
4G0-82115-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
4G0-82116-00-00
Wire, Minus Lead
|
4G0-82116-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
3LT-81960-00-00 Rectifier/reg Assembly |
3LT-81960-00-00 |
US $363.55 |
||
| replacement | |||||
|
20
|
20
4X7-81960-A0-00 Rectifier/reg Assembly |
4X7-81960-A0-00 |
US $363.55 |
||
|
21
|
21
98501-06030-00 Screw Pan Head |
98501-06030-00 |
US $1.35 |
||
| replacement | |||||
|
21
|
21
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
22
|
22
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
22
|
22
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
23
|
23
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
24
|
24
3AY-81940-00-00
Starter Relay Assy (Ms5D-611)
|
3AY-81940-00-00 |
— | ||
| replacement | |||||
|
24
|
24
4KD-81940-00-00 Starter Relay Assy (Ms5D-611) |
4KD-81940-00-00 |
from US $97.54 |
||
|
25
|
25
953-03067-00-00
Nut
|
953-03067-00-00 |
— | ||
| replacements | |||||
|
25
|
25
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.52 |
||
|
25
|
25
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.52 |
||
|
26
|
26
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
3LT-82590-00-00
Wire Harness Assembly
|
3LT-82590-00-00 |
— | ||
|
28
|
28
116-82151-00-00
Fuse (12V-10A)
10A |
116-82151-00-00 |
— | ||
| replacement | |||||
|
28
|
28
1A0-82151-00-00 Fuse (12V-10A)10A |
1A0-82151-00-00 |
from US $4.96 |
||
|
29
|
29
2H7-82151-00-00 Fuse12V-30A |
2H7-82151-00-00 |
from US $4.82 |
||
|
30
|
30
98502-06016-00 Screw, Pan Head(3Js) |
98502-06016-00 |
US $2.77 |
||
| replacement | |||||
|
30
|
30
98580-06016-00 Screw Pan Head |
98580-06016-00 |
from US $2.70 |
||
|
31
|
31
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
31
|
31
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
32
|
32
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
33
|
33
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
34
|
34
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.81 |
||
|
35
|
35
904-64130-73-00
Clamp
|
904-64130-73-00 |
— | ||
| replacement | |||||
|
35
|
35
904-64151-95-00 Clamp |
904-64151-95-00 |
from US $1.39 |
||
