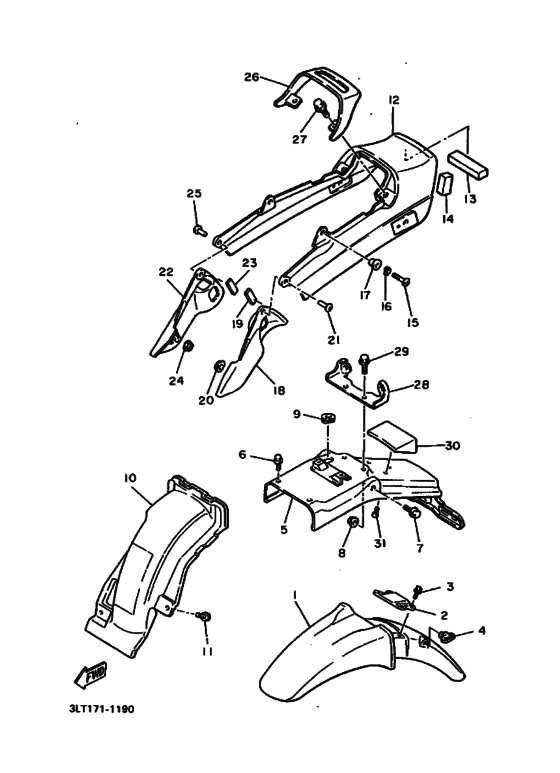

Fender Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UJ-21510-00-P0
Front Fender Comp
DULL GREENISH BLUE METALLIC 1 |
1UJ-21510-00-P0 |
— | ||
|
2
|
2
1UJ-2313A-00-00
Brace, Fork
|
1UJ-2313A-00-00 |
— | ||
|
3
|
3
95023-06025-00 Bolt, Flange (Small Head) |
95023-06025-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
95024-06025-00 Bolt, Flange (Small Head) |
95024-06025-00 |
from US $1.66 |
||
|
4
|
4
1A8-21518-00-00 Holder, Cable |
1A8-21518-00-00 |
from US $4.53 |
||
|
5
|
5
3LT-21610-00-93
Fender, Rear
CHROME PLATED |
3LT-21610-00-93 |
— | ||
|
6
|
6
95801-06010-00 Bolt, Flange |
95801-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
6
|
6
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
6
|
6
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
7
|
7
95801-08016-00 Bolt, Flange (8A7) |
95801-08016-00 |
from US $1.21 |
||
| replacements | |||||
|
7
|
7
95814-08016-00 Bolt, Flange |
95814-08016-00 |
from US $1.39 |
||
|
7
|
7
901-0508X-15-00
Blt,hex,1/4-20X5/8
|
901-0508X-15-00 |
— | ||
|
8
|
8
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
8
|
8
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
8
|
8
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
9
|
9
90480-15061-00 Grommet (438) |
90480-15061-00 |
from US $1.70 |
||
|
10
|
10
4G0-21629-00-00
Guard, Mud
|
4G0-21629-00-00 |
— | ||
|
11
|
11
90119-06108-00 Bolt, With Washer |
90119-06108-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
12
|
12
1UJ-21651-00-P1
Cover, Rear Fender
DULL GREENISH BLUE METALLIC 1 |
1UJ-21651-00-P1 |
— | ||
|
13
|
13
1UJ-21649-00-00
Damper
|
1UJ-21649-00-00 |
— | ||
|
14
|
14
1KT-21717-00-00 Damper 1 |
1KT-21717-00-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
83R-14425-00-00 Damper 1 |
83R-14425-00-00 |
from US $1.56 |
||
|
15
|
15
92506-06016-00 Screw |
92506-06016-00 |
from US $1.42 |
||
| replacement | |||||
|
15
|
15
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
16
|
16
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
17
|
17
90387-062M9-00 Collar |
90387-062M9-00 |
from US $1.70 |
||
|
18
|
18
1UJ-2163E-00-P1
Cover, Rear Fender 2
DULL GREENISH BLUE METALLIC 1 |
1UJ-2163E-00-P1 |
— | ||
|
19
|
19
1UJ-21639-00-00 Damper 2 |
1UJ-21639-00-00 |
from US $2.69 |
||
| replacement | |||||
|
19
|
19
1HX-28227-00-00 Damper, 2 |
1HX-28227-00-00 |
from US $2.69 |
||
|
20
|
20
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
21
|
21
902-69060-46-00
Rivet
|
902-69060-46-00 |
— | ||
| replacement | |||||
|
21
|
21
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.66 |
||
|
22
|
22
1UJ-2163F-00-P1
Cover, Rear Fender 3
DULL GREENISH BLUE METALLIC 1 |
1UJ-2163F-00-P1 |
— | ||
|
23
|
23
1UJ-21639-00-00 Damper 2 |
1UJ-21639-00-00 |
from US $2.69 |
||
| replacement | |||||
|
23
|
23
1HX-28227-00-00 Damper, 2 |
1HX-28227-00-00 |
from US $2.69 |
||
|
24
|
24
90480-01401-00 Grommet (41Y) |
90480-01401-00 |
from US $3.05 |
||
|
25
|
25
902-69060-46-00
Rivet
|
902-69060-46-00 |
— | ||
| replacement | |||||
|
25
|
25
902-69060-01-00 Rivet |
902-69060-01-00 |
from US $1.66 |
||
|
26
|
26
3LT-21645-00-00
Stay, Rear
|
3LT-21645-00-00 |
— | ||
| replacement | |||||
|
26
|
26
1UF-21645-01-00
Stay, Rear
|
1UF-21645-01-00 |
— | ||
|
27
|
27
95811-10025-00 Bolt, Flange (13W) |
95811-10025-00 |
from US $1.07 |
||
| replacement | |||||
|
27
|
27
95817-10025-00 Bolt, Flange |
95817-10025-00 |
from US $1.18 |
||
|
28
|
28
1UJ-2161A-00-00
Bracket
|
1UJ-2161A-00-00 |
— | ||
|
29
|
29
95801-06010-00 Bolt, Flange |
95801-06010-00 |
from US $1.07 |
||
| replacements | |||||
|
29
|
29
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
29
|
29
95812-06010-00 Bolt, Flange |
95812-06010-00 |
from US $1.07 |
||
|
30
|
30
1UF-2163A-00-00
Cover, Rear Fender
|
1UF-2163A-00-00 |
— | ||
|
31
|
31
97702-40608-00 Screw,tapping |
97702-40608-00 |
from US $0.67 |
||
| replacements | |||||
|
31
|
31
97707-40608-00 Screw, Tapping |
97707-40608-00 |
from US $0.70 |
||
|
31
|
31
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
