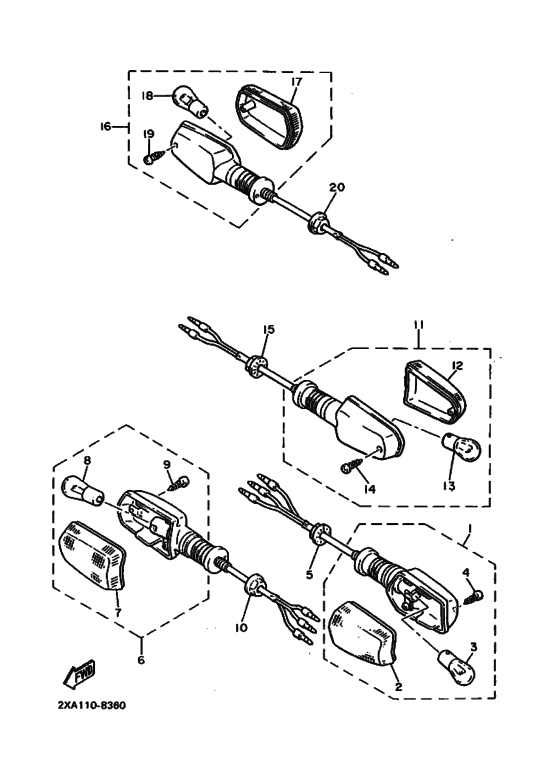

Flasher light Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UF-83310-00-00 Front Flasher Light Assy 1 |
1UF-83310-00-00 |
from US $68.94 |
||
|
2
|
2
51L-83332-01-00 Lens, Flasher |
51L-83332-01-00 |
from US $10.51 |
||
|
3
|
3
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
3
|
3
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
3
|
3
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
4
|
4
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
5
|
5
95701-12500-00 P66 Nut, Flange (1Uv) |
95701-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
5
|
5
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
5
|
5
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
6
|
6
1UF-83320-00-00 Front Flasher Light Assy 2 |
1UF-83320-00-00 |
from US $68.94 |
||
|
7
|
7
51L-83342-01-00 Lens, Flasher 2 |
51L-83342-01-00 |
from US $11.36 |
||
|
8
|
8
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
8
|
8
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
8
|
8
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
9
|
9
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
9
|
9
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
10
|
10
95701-12500-00 P66 Nut, Flange (1Uv) |
95701-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
10
|
10
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
10
|
10
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
11
|
11
1UF-83330-00-00 Rear Flasher Light Assy 1 |
1UF-83330-00-00 |
from US $82.21 |
||
|
12
|
12
51L-83342-01-00 Lens, Flasher 2 |
51L-83342-01-00 |
from US $11.36 |
||
|
13
|
13
256-83311-70-00 Bulb (12V-27W)12V-27W |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
13
|
13
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
14
|
14
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
15
|
15
95706-12500-00 Nut, With Washer |
95706-12500-00 |
US $1.98 |
||
| replacements | |||||
|
15
|
15
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
15
|
15
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
|
16
|
16
1UF-83340-00-00 Rear Flasher Light Assy 2 |
1UF-83340-00-00 |
from US $82.21 |
||
|
17
|
17
51L-83332-01-00 Lens, Flasher |
51L-83332-01-00 |
from US $10.51 |
||
|
18
|
18
256-83311-70-00 Bulb (12V-27W)12V-27W |
256-83311-70-00 |
from US $5.28 |
||
| replacement | |||||
|
18
|
18
256-83311-70-XX
Bulb (12V-27W)
12V-27W |
256-83311-70-XX |
— | ||
|
19
|
19
977-06406-20-00 Screw, Tapping |
977-06406-20-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
97707-40520-00 Screw, Tapping |
97707-40520-00 |
from US $1.56 |
||
|
20
|
20
95706-12500-00 Nut, With Washer |
95706-12500-00 |
US $1.98 |
||
| replacements | |||||
|
20
|
20
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
20
|
20
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $2.22 |
||
