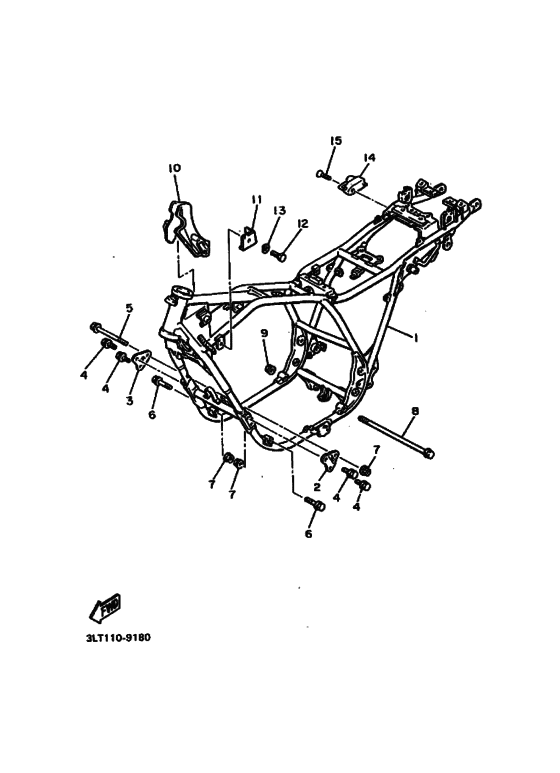

Frame Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3LT-21110-10-P0
Frame Comp
GRAY METALLIC 1 |
3LT-21110-10-P0 |
— | ||
|
2
|
2
4G0-21315-00-R4
Stay, Engine 1
BLACK (FOR ELECTRODEPOSIT) |
4G0-21315-00-R4 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
BLACK (FOR ELECTRODEPOSIT) |
999-99999-99-00 |
— | ||
|
3
|
3
4G0-21316-00-R4
Stay, Engine 2
BLACK (FOR ELECTRODEPOSIT) |
4G0-21316-00-R4 |
— | ||
|
4
|
4
90105-08155-00 Bolt, Flange |
90105-08155-00 |
from US $3.68 |
||
| replacements | |||||
|
4
|
4
958-17080-14-00 Bolt, Flange |
958-17080-14-00 |
from US $1.66 |
||
|
4
|
4
90105-08066-00 Bolt, Flange |
90105-08066-00 |
from US $3.68 |
||
|
5
|
5
90105-10401-00 Bolt, Flange |
90105-10401-00 |
from US $12.72 |
||
|
6
|
6
90105-10170-00 Bolt, Flange |
90105-10170-00 |
from US $7.37 |
||
| replacement | |||||
|
6
|
6
90105-10737-00 Bolt, Flange |
90105-10737-00 |
from US $7.37 |
||
|
7
|
7
901-79102-47-00
Nut, Flange
|
901-79102-47-00 |
— | ||
| replacements | |||||
|
7
|
7
95704-10500-00 Nut, With Washer |
95704-10500-00 |
from US $1.18 |
||
|
7
|
7
90179-10658-00 Nut, Flange |
90179-10658-00 |
from US $2.83 |
||
|
8
|
8
90105-12171-00
Bolt, Flange
|
90105-12171-00 |
— | ||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
90179-12421-00 Nut |
90179-12421-00 |
from US $4.34 |
||
| replacement | |||||
|
9
|
9
90179-12657-00 Nut |
90179-12657-00 |
from US $7.21 |
||
|
10
|
10
5K5-2139R-01-00
Cover 2
|
5K5-2139R-01-00 |
— | ||
|
11
|
11
5K5-2134Y-00-00
Stay, Horn
|
5K5-2134Y-00-00 |
— | ||
|
12
|
12
970-26080-12-00
Bolt
|
970-26080-12-00 |
— | ||
| replacement | |||||
|
12
|
12
97027-08012-00 Bolt |
97027-08012-00 |
from US $2.41 |
||
|
13
|
13
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
14
|
14
26H-21308-00-00
Helmet Hanger Assy
|
26H-21308-00-00 |
— | ||
| replacement | |||||
|
14
|
14
26H-21308-01-00 Helmet Hanger Assy |
26H-21308-01-00 |
from US $44.85 |
||
|
15
|
15
90149-06150-00 Screw, Countersunk |
90149-06150-00 |
from US $1.98 |
||
