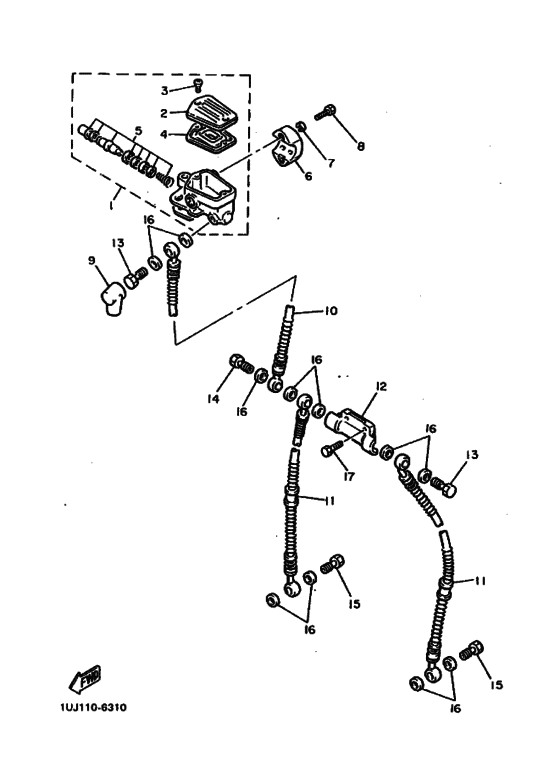

Front master cylinder Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36Y-25850-01-00
Master Cylinder Assy
|
36Y-25850-01-00 |
— | ||
| replacements | |||||
|
1
|
1
3HE-2583T-01-00 Master Cylinder Assy |
3HE-2583T-01-00 |
from US $252.83 |
||
|
1
|
1
3HE-2583T-02-00 MASTER CYLINDER ASSY |
3HE-2583T-02-00 |
from US $229.17 |
||
|
2
|
2
36Y-25852-01-00
Cap, Reservoir
|
36Y-25852-01-00 |
— | ||
| replacements | |||||
|
2
|
2
3HE-25852-01-00 Cap, Reservoir |
3HE-25852-01-00 |
from US $28.31 |
||
|
2
|
2
18P-H2310-04-00 Ignition Coil Assy |
18P-H2310-04-00 |
US $17.91 |
||
|
3
|
3
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
3
|
3
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
4
|
4
36Y-25854-00-00 Diaphragm, Reservoir |
36Y-25854-00-00 |
from US $23.58 |
||
|
5
|
5
36Y-W0041-00-00 Cylinder Kit, Master |
36Y-W0041-00-00 |
from US $86.69 |
||
|
6
|
6
36Y-25867-00-00 Bracket, Master Cylinder |
36Y-25867-00-00 |
from US $19.41 |
||
|
7
|
7
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
8
|
8
913-16060-25-00
Bolt
|
913-16060-25-00 |
— | ||
| replacement | |||||
|
8
|
8
913-17060-25-00 Bolt |
913-17060-25-00 |
from US $1.39 |
||
|
9
|
9
306-25862-00-00 Boot, Master Cylinder |
306-25862-00-00 |
from US $24.37 |
||
|
10
|
10
3LT-25872-01-00
Hose, Brake 1
|
3LT-25872-01-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99025-45-00
IGNITION COIL ASSY
|
999-99025-45-00 |
— | ||
|
11
|
11
3LT-25873-01-00
Hose, Brake 2
|
3LT-25873-01-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99025-46-00
Brake Hose 2
|
999-99025-46-00 |
— | ||
|
12
|
12
1AA-25885-00-00
Joint
|
1AA-25885-00-00 |
— | ||
|
13
|
13
90401-10034-00 Bolt, Union |
90401-10034-00 |
from US $3.26 |
||
| replacement | |||||
|
13
|
13
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
14
|
14
90401-10044-00 Bolt, Union |
90401-10044-00 |
from US $9.49 |
||
| replacement | |||||
|
14
|
14
90401-10038-00 Bolt, Union |
90401-10038-00 |
from US $9.49 |
||
|
15
|
15
904-01100-96-00
Bolt, Union
|
904-01100-96-00 |
— | ||
| replacement | |||||
|
15
|
15
90401-10159-00 Bolt, Union(3Gm) |
90401-10159-00 |
from US $3.26 |
||
|
16
|
16
902-01101-18-00 Washer, Plate |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
16
|
16
90201-108J9-00 Washer, Plate |
90201-108J9-00 |
US $1.39 |
||
|
17
|
17
91311-06020-00 Bolt, Hexagon Socket Head |
91311-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
17
|
17
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.39 |
||
