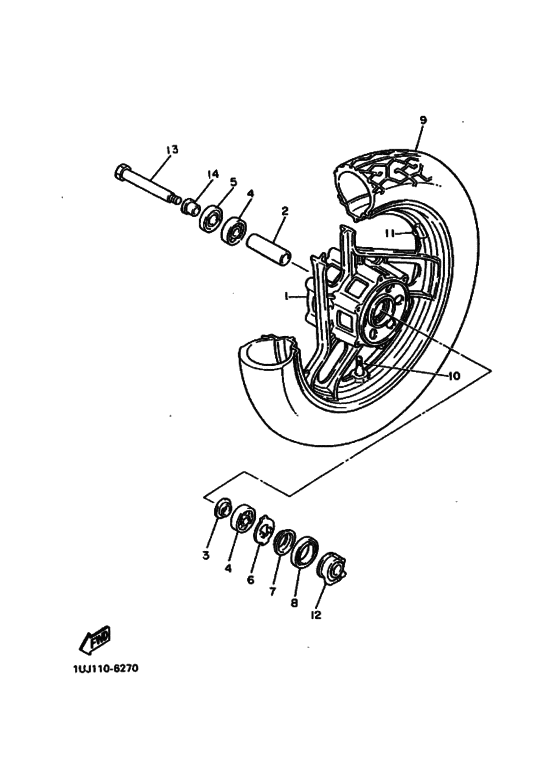

Front wheel Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UJ-25168-00-WG
Cast Wheel, Front
HI TECH SILVER |
1UJ-25168-00-WG |
— | ||
|
2
|
2
90560-15116-00
Spacer 322251170000
|
90560-15116-00 |
— | ||
|
3
|
3
146-25115-00-00 Flange, Spacer |
146-25115-00-00 |
from US $6.23 |
||
|
4
|
4
93306-30203-00 Brg,r-B 6302Z 42Mm 27G Nt |
93306-30203-00 |
from US $20.54 |
||
| replacement | |||||
|
4
|
4
93306-30212-00 Bearing |
93306-30212-00 |
from US $16.84 |
||
|
5
|
5
931-02220-14-00 Oil Seal |
931-02220-14-00 |
from US $8.08 |
||
|
6
|
6
341-25149-00-00 Clutch, Meter |
341-25149-00-00 |
from US $4.43 |
||
|
7
|
7
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $3.33 |
||
|
8
|
8
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $10.83 |
||
|
9
|
9
94111-166J7-00
Tire(110/90-16 59H G527A)
110/90-16 59H G527A; UR BRIDGESTONE |
94111-166J7-00 |
— | ||
|
9
|
9
941-11161-J0-00
110/90-16 Dun 56H
110/90-16 56H; UR DUNLOP |
941-11161-J0-00 |
— | ||
|
10
|
10
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
11
|
11
29L-25398-00-00
Balancer, Wheel (10G)
10G; UR |
29L-25398-00-00 |
— | ||
| replacement | |||||
|
11
|
11
5MT-25398-00-00 Balancer, Wheel (10G)10G; UR |
5MT-25398-00-00 |
from US $8.46 |
||
|
11
|
11
29L-25398-10-00
Balancer, Wheel (20G)
20G; UR |
29L-25398-10-00 |
— | ||
| replacement | |||||
|
11
|
11
5MT-25398-10-00 Balancer, Wheel (20G)20G; UR |
5MT-25398-10-00 |
from US $8.46 |
||
|
11
|
11
29L-25398-20-00 Balancer, Wheel (30G)30G; UR |
29L-25398-20-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
5MT-25398-20-00 Balancer, Wheel (30G)30G; UR |
5MT-25398-20-00 |
from US $8.46 |
||
|
12
|
12
3M5-25190-00-00 Gear Unit Asy |
3M5-25190-00-00 |
from US $85.38 |
||
| replacement | |||||
|
12
|
12
3M5-25190-10-00 Gear Unit Assy |
3M5-25190-10-00 |
from US $85.38 |
||
|
13
|
13
33M-25181-00-00 Axle, Wheel |
33M-25181-00-00 |
from US $49.41 |
||
| replacement | |||||
|
13
|
13
10W-25381-00-00 Axle, Wheel |
10W-25381-00-00 |
from US $36.90 |
||
|
14
|
14
90387-15550-00 Collar |
90387-15550-00 |
from US $12.18 |
||
