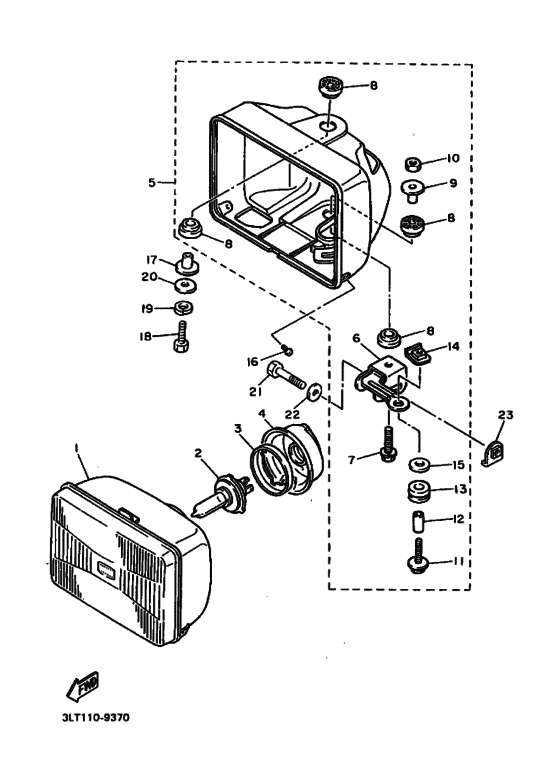

Headlight Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UF-84320-00-00
Lens Assembly
|
1UF-84320-00-00 |
— | ||
|
3
|
3
2F9-84375-00-00 Setting Plate, Bulb |
2F9-84375-00-00 |
from US $20.25 |
||
|
4
|
4
2F9-84397-01-00 Cover, Socket Ttr250 94 Adr |
2F9-84397-01-00 |
from US $17.48 |
||
|
5
|
5
1UF-84330-01-00 Body Assembly |
1UF-84330-01-00 |
US $243.67 |
||
|
6
|
6
1UF-84319-00-00 Stay, Headlight 2 |
1UF-84319-00-00 |
US $31.18 |
||
|
7
|
7
1UF-84337-00-00
Bolt, Special
|
1UF-84337-00-00 |
— | ||
|
8
|
8
1UF-84366-00-00 Damper, Headlight 1 |
1UF-84366-00-00 |
US $16.92 |
||
|
9
|
9
1UF-84338-00-00
Collar, Body Ftng
|
1UF-84338-00-00 |
— | ||
|
10
|
10
95303-08600-00 Nut |
95303-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
10
|
10
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
10
|
10
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
11
|
11
1UF-84137-00-00 Bolt, Special |
1UF-84137-00-00 |
US $14.56 |
||
|
12
|
12
1UF-84307-00-00 Collar |
1UF-84307-00-00 |
US $4.43 |
||
|
13
|
13
1UF-84345-00-00 Damper, Headlight |
1UF-84345-00-00 |
US $4.77 |
||
|
14
|
14
1UF-84316-00-00 Nut, Body Fitting |
1UF-84316-00-00 |
US $14.56 |
||
|
15
|
15
90201-082M8-00 Washer, Plate |
90201-082M8-00 |
from US $1.24 |
||
| replacement | |||||
|
15
|
15
90201-087F0-00 Washer, Plate |
90201-087F0-00 |
from US $1.70 |
||
|
16
|
16
90157-05084-00 Screw, Pan Head |
90157-05084-00 |
from US $2.69 |
||
|
17
|
17
1UF-84338-00-00
Collar, Body Ftng
|
1UF-84338-00-00 |
— | ||
|
18
|
18
97016-08030-00 Bolt |
97016-08030-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
970-17080-30-00 Bolt |
970-17080-30-00 |
from US $1.70 |
||
|
19
|
19
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
20
|
20
90201-08730-00 Washer, Plate |
90201-08730-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
90201-087F0-00 Washer, Plate |
90201-087F0-00 |
from US $1.70 |
||
|
21
|
21
91316-08045-00 Bolt |
91316-08045-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
91317-08045-00 Bolt |
91317-08045-00 |
from US $1.56 |
||
|
22
|
22
92906-08200-00 Washer |
92906-08200-00 |
from US $1.56 |
||
| replacement | |||||
|
22
|
22
92907-08200-00 Washer |
92907-08200-00 |
from US $1.66 |
||
|
23
|
23
1UF-84327-00-00
Washer, Special
|
1UF-84327-00-00 |
— | ||
