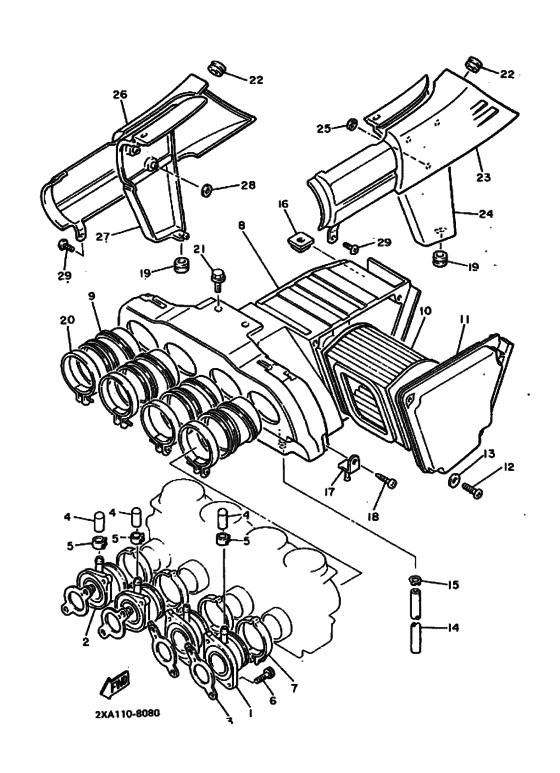

Intake Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33M-13586-01-00 Joint, Carburetor 1 |
33M-13586-01-00 |
from US $80.55 |
||
|
2
|
2
33M-13596-01-00 Joint, Carburetor 2 |
33M-13596-01-00 |
from US $60.62 |
||
|
3
|
3
49A-13556-00-00 Gasket, Manifold |
49A-13556-00-00 |
from US $5.24 |
||
| replacement | |||||
|
3
|
3
3KM-13556-00-00 Gasket, Manifold |
3KM-13556-00-00 |
from US $5.24 |
||
|
4
|
4
16G-13569-00-00 Plug, Blind |
16G-13569-00-00 |
from US $2.36 |
||
|
5
|
5
90467-10039-00 Clip |
90467-10039-00 |
from US $1.39 |
||
|
6
|
6
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
6
|
6
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.18 |
||
|
7
|
7
1UJ-13575-00-00 Band |
1UJ-13575-00-00 |
from US $19.55 |
||
|
8
|
8
5K5-14401-01-00
Air Clnr Case Assembly
|
5K5-14401-01-00 |
— | ||
|
9
|
9
4G0-14453-00-00 Joint, Air Clnr 1 |
4G0-14453-00-00 |
from US $22.99 |
||
|
10
|
10
4U8-14451-00-00 Element, Air Clnr |
4U8-14451-00-00 |
from US $52.83 |
||
|
11
|
11
4U8-14412-00-00
Cap, Cleaner Case 1
|
4U8-14412-00-00 |
— | ||
|
12
|
12
98506-05025-00 Screw, Pan Head |
98506-05025-00 |
from US $1.42 |
||
| replacements | |||||
|
12
|
12
98507-05025-00 Screw, Pan Head(4My) |
98507-05025-00 |
from US $1.52 |
||
|
12
|
12
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
13
|
13
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
14
|
14
904-46110-21-00
Hose
|
904-46110-21-00 |
— | ||
| replacement | |||||
|
14
|
14
91A21-07020-00 Hose |
91A21-07020-00 |
from US $4.30 |
||
|
15
|
15
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
15
|
15
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.66 |
||
|
16
|
16
4H7-14484-00-00
Plate, Clnr Cs Ftng
|
4H7-14484-00-00 |
— | ||
|
17
|
17
5K5-2174E-00-00 Stay, Side Cover 2 |
5K5-2174E-00-00 |
US $25.20 |
||
|
18
|
18
977-01405-08-00 Screw, Tapping (97702-40508) |
977-01405-08-00 |
US $1.42 |
||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
90480-12053-00 Grommet |
90480-12053-00 |
from US $1.94 |
||
|
20
|
20
904-50560-02-00
Hose Clamp Assembly
|
904-50560-02-00 |
— | ||
|
21
|
21
90119-06029-00 Bolt, With Washer |
90119-06029-00 |
from US $2.98 |
||
|
22
|
22
90480-10334-00 Grommet |
90480-10334-00 |
from US $1.70 |
||
|
23
|
23
1UJ-1441A-00-00 Cover, Clnr Case 1 |
1UJ-1441A-00-00 |
US $218.14 |
||
|
24
|
24
1UJ-1441E-00-00 Cover, Clnr Case 2 |
1UJ-1441E-00-00 |
US $59.80 |
||
|
25
|
25
90183-06008-00 Nut, Spring |
90183-06008-00 |
from US $1.98 |
||
|
26
|
26
1UJ-1442A-00-00
Cover, Clnr Case 3
|
1UJ-1442A-00-00 |
— | ||
|
27
|
27
1UJ-1442E-00-00
Cover, Clnr Case 4
|
1UJ-1442E-00-00 |
— | ||
|
28
|
28
90183-06008-00 Nut, Spring |
90183-06008-00 |
from US $1.98 |
||
|
29
|
29
90154-05042-00 Screw, Binding |
90154-05042-00 |
from US $2.55 |
||
| replacement | |||||
|
29
|
29
901-19050-71-00 Bolt, With Washer |
901-19050-71-00 |
from US $1.84 |
||
