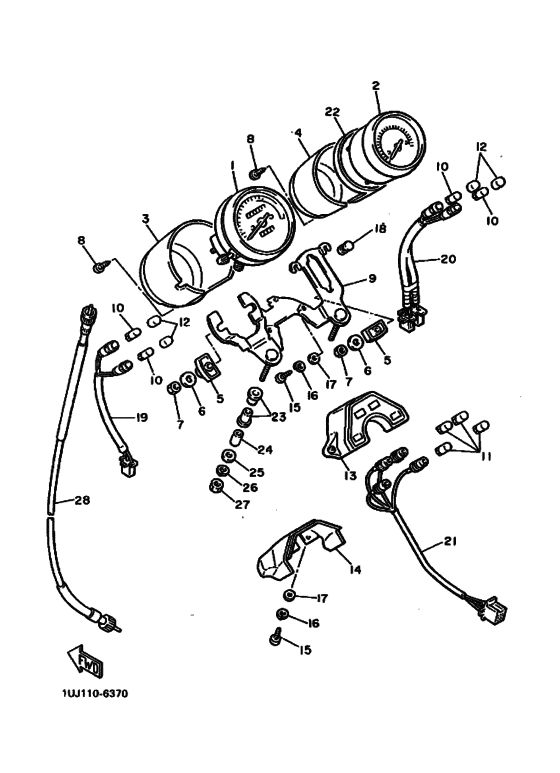

Meter Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UG-8351A-F0-00
Speedo. Comp
|
1UG-8351A-F0-00 |
— | ||
|
2
|
2
1UF-8354A-00-00
Tachometer Assembly
|
1UF-8354A-00-00 |
— | ||
|
3
|
3
1FK-83507-00-00 Case Comp, Under |
1FK-83507-00-00 |
from US $99.06 |
||
|
4
|
4
1UF-83508-00-00
Cover, Tachometer
|
1UF-83508-00-00 |
— | ||
|
5
|
5
1FG-83523-00-00 Damper |
1FG-83523-00-00 |
from US $7.37 |
||
|
6
|
6
90201-05031-00 Washer, Plate |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
6
|
6
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
6
|
6
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
7
|
7
95303-05600-00 Nut |
95303-05600-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
8
|
8
90164-04009-00 Screw, Tapping |
90164-04009-00 |
from US $2.69 |
||
| replacement | |||||
|
8
|
8
90164-04023-00 Screw, Tapping(71E) |
90164-04023-00 |
from US $1.84 |
||
|
9
|
9
1UJ-83519-00-00 Bracket, Meter |
1UJ-83519-00-00 |
US $72.14 |
||
|
10
|
10
42X-83517-00-00 Bulb (14V-3.4W)12V-3W |
42X-83517-00-00 |
from US $2.83 |
||
| replacement | |||||
|
10
|
10
3FV-83517-00-00 Bulb (12V-1.7W)12V-3W |
3FV-83517-00-00 |
from US $4.99 |
||
|
11
|
11
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-3.4W |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
11
|
11
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-3.4W |
4G1-84744-00-XX |
— | ||
|
12
|
12
1FK-83535-00-00 Tube |
1FK-83535-00-00 |
from US $6.66 |
||
|
13
|
13
1UJ-83530-00-00
Pilot Light Assy
|
1UJ-83530-00-00 |
— | ||
| replacement | |||||
|
13
|
13
4KE-83530-10-00
Pilot Light Assy
|
4KE-83530-10-00 |
— | ||
|
14
|
14
1UJ-83579-00-00
Cover, Meter 2
|
1UJ-83579-00-00 |
— | ||
|
15
|
15
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.36 |
||
|
16
|
16
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
17
|
17
929-01046-00-00
Washer
|
929-01046-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-90046-00-00 Washer, Plate |
929-90046-00-00 |
from US $1.07 |
||
|
18
|
18
29L-83523-00-00 Damper |
29L-83523-00-00 |
from US $22.53 |
||
|
19
|
19
1UJ-83509-00-00
Socket Cord Assembly
|
1UJ-83509-00-00 |
— | ||
|
20
|
20
1UF-83586-00-00 Socket Assembly |
1UF-83586-00-00 |
US $45.99 |
||
|
21
|
21
1UJ-83520-00-00
Socket Cord Assembly
|
1UJ-83520-00-00 |
— | ||
|
22
|
22
1UF-83541-00-00 Damper |
1UF-83541-00-00 |
US $19.91 |
||
|
23
|
23
584-83541-00-00 Damper |
584-83541-00-00 |
from US $11.03 |
||
|
24
|
24
90387-06249-00 Collar |
90387-06249-00 |
from US $1.28 |
||
|
25
|
25
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
25
|
25
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
25
|
25
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
26
|
26
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
26
|
26
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
27
|
27
95316-06600-00 Nut (31A) |
95316-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
27
|
27
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
28
|
28
34L-83550-01-00 Speedometer Cable Assy |
34L-83550-01-00 |
from US $28.22 |
||
| replacement | |||||
|
28
|
28
16M-83550-01-00 Speedometer Cable Assy |
16M-83550-01-00 |
from US $44.83 |
||
