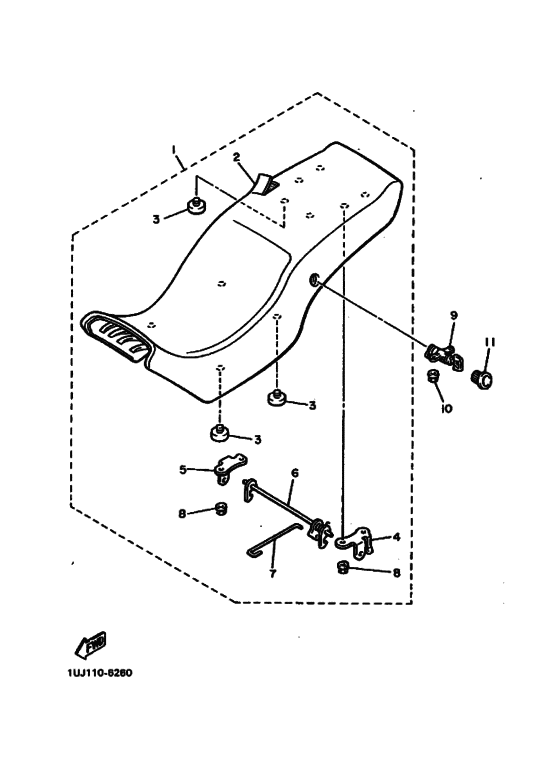

Seat Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3LT-24730-00-00
Double Seat Assembly
|
3LT-24730-00-00 |
— | ||
|
2
|
2
3LT-24731-00-00 Cover, Seat |
3LT-24731-00-00 |
US $276.97 |
||
|
3
|
3
22W-24741-00-00 Pad, Seat |
22W-24741-00-00 |
from US $2.36 |
||
|
4
|
4
47X-24718-01-00 Bracket, Seat |
47X-24718-01-00 |
from US $9.72 |
||
|
5
|
5
47X-24728-01-00 Bracket, Seat |
47X-24728-01-00 |
US $15.25 |
||
|
6
|
6
1UJ-24776-00-00
Lever, Seat
|
1UJ-24776-00-00 |
— | ||
|
7
|
7
47X-2478F-00-00
Rod, Connecting
|
47X-2478F-00-00 |
— | ||
|
8
|
8
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
8
|
8
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
9
|
9
51X-24705-00-00
Seat Lock Assembly
|
51X-24705-00-00 |
— | ||
| replacement | |||||
|
9
|
9
47X-24705-00-00
Seat Lock Assembly
|
47X-24705-00-00 |
— | ||
|
10
|
10
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
11
|
11
51Y-24796-00-00 Cover |
51Y-24796-00-00 |
US $25.49 |
||
