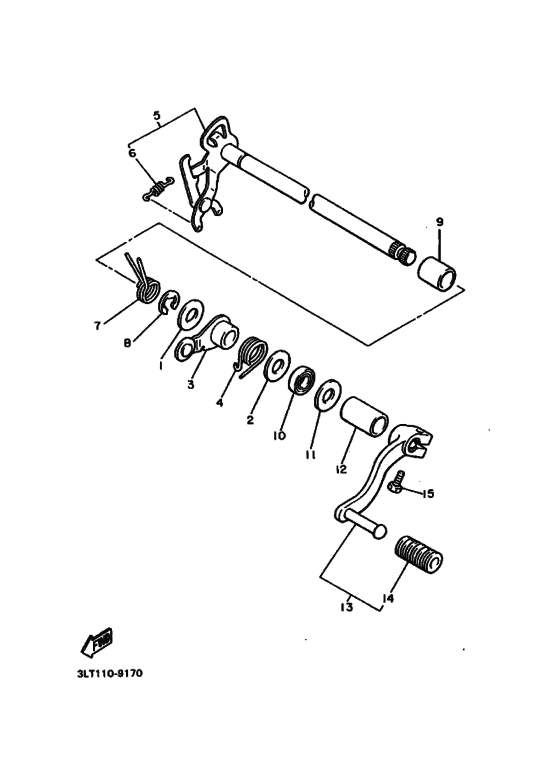

Shift shaft Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
90201-12588-00 Washer, Plate |
90201-12588-00 |
from US $1.70 |
||
|
2
|
2
90201-123K8-00 Washer, Plate |
90201-123K8-00 |
from US $1.70 |
||
| replacement | |||||
|
2
|
2
90201-126A7-00 Washer, Plate (4N0) |
90201-126A7-00 |
from US $1.81 |
||
|
3
|
3
4G0-18140-00-00 Stopper Lever Assy |
4G0-18140-00-00 |
from US $22.39 |
||
|
4
|
4
90508-29640-00
Spring, Torsion
|
90508-29640-00 |
— | ||
|
5
|
5
4G0-18120-01-00
Shift Lever Assembly
|
4G0-18120-01-00 |
— | ||
|
6
|
6
90506-08227-00 Spring, Tension |
90506-08227-00 |
from US $1.66 |
||
|
7
|
7
90508-32534-00 Spring, Torsion |
90508-32534-00 |
US $7.72 |
||
|
8
|
8
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.39 |
||
|
9
|
9
90387-124F4-00 Collar |
90387-124F4-00 |
from US $3.54 |
||
| replacement | |||||
|
9
|
9
90387-12033-00 Collar |
90387-12033-00 |
from US $3.54 |
||
|
10
|
10
93102-12106-00 Oil Seal (Sd 12-22-5 Hs)12-22-5 HS |
93102-12106-00 |
from US $3.72 |
||
| replacement | |||||
|
10
|
10
931-02123-21-00 Oil Seal12-22-5 HS |
931-02123-21-00 |
from US $5.41 |
||
|
11
|
11
90201-12575-00 Washer, Plate (353) |
90201-12575-00 |
from US $1.70 |
||
|
12
|
12
90387-125A8-00 Collar |
90387-125A8-00 |
from US $4.73 |
||
|
13
|
13
3LT-18110-00-00 Shift Pedal Assembly |
3LT-18110-00-00 |
US $56.20 |
||
|
14
|
14
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
15
|
15
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
15
|
15
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
