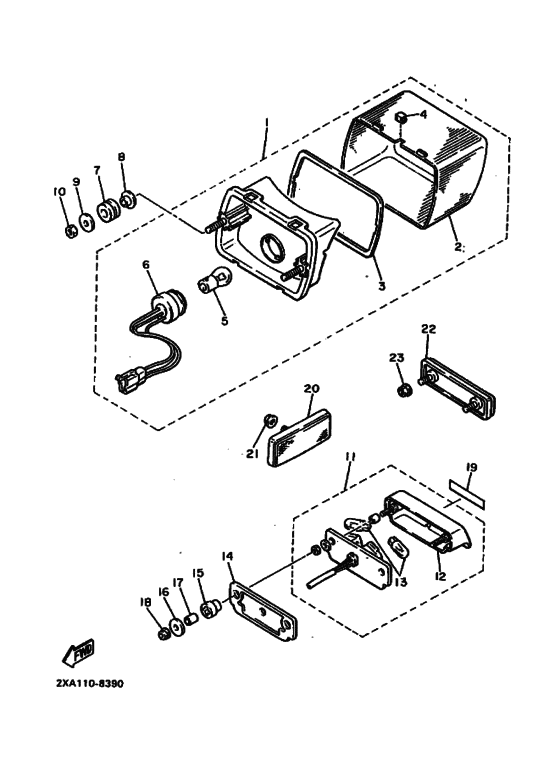

Taillight Diagram Yamaha YX600 Radian
- Year
- 1991
- Colour
- Dull Greenish Blue Metallic 1 (DGBME; 0158)
- Model code
- 3LT7
- Sales region
- Europe (010)
- Engine Capacity
- 600
- Color Variant
- A
- Model
- YX600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1UJ-84710-A0-00
Taillight Unit Assembly
|
1UJ-84710-A0-00 |
— | ||
|
2
|
2
1FN-84721-E0-00
Lens, Taillight
|
1FN-84721-E0-00 |
— | ||
|
3
|
3
47X-84723-00-00 Gasket, Tail Lens |
47X-84723-00-00 |
from US $9.78 |
||
|
4
|
4
1A2-84718-40-00
Grommet
|
1A2-84718-40-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
256-84714-61-00
Bulb (12V-27/8W)
12V-27/8W |
256-84714-61-00 |
— | ||
| replacements | |||||
|
5
|
5
137-84714-61-XX
Bulb (12V-21/5W)
12V-27/8W |
137-84714-61-XX |
— | ||
|
5
|
5
137-84714-61-00 Bulb (12V-21/5W)12V-27/8W |
137-84714-61-00 |
US $5.13 |
||
|
6
|
6
1UJ-84735-A0-00
Cord Assembly
|
1UJ-84735-A0-00 |
— | ||
|
7
|
7
90480-18276-00 Grommet |
90480-18276-00 |
from US $1.56 |
||
|
8
|
8
90387-07037-00 Collar |
90387-07037-00 |
from US $3.54 |
||
|
9
|
9
90201-06697-00 Washer, Plate |
90201-06697-00 |
from US $2.08 |
||
|
10
|
10
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
10
|
10
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
11
|
11
1UF-84745-A0-00
License Lite Assy
|
1UF-84745-A0-00 |
— | ||
|
12
|
12
3F9-84749-00-00 Body, Licence Light |
3F9-84749-00-00 |
US $98.55 |
||
|
13
|
13
3F9-84744-00-00 Bulb, Meter 12V 3.8W12V-3.8W |
3F9-84744-00-00 |
from US $2.09 |
||
| replacement | |||||
|
13
|
13
3F9-84744-00-XX Bulb, Meter 12V3.8W12V-3.8W |
3F9-84744-00-XX |
US $2.09 |
||
|
14
|
14
3F9-84742-00-00 Sheet, Base |
3F9-84742-00-00 |
from US $10.31 |
||
|
15
|
15
3F9-84553-00-00 Damper |
3F9-84553-00-00 |
from US $6.38 |
||
|
16
|
16
3F9-84754-00-00 Washer, Special |
3F9-84754-00-00 |
from US $1.94 |
||
|
17
|
17
3F9-84757-00-00 Collar |
3F9-84757-00-00 |
from US $2.94 |
||
| replacement | |||||
|
17
|
17
90387-066H9-00 Collar |
90387-066H9-00 |
from US $2.94 |
||
|
18
|
18
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
18
|
18
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
19
|
19
3LT-24786-11-00 Emblem, Yamaha |
3LT-24786-11-00 |
from US $7.65 |
||
| replacements | |||||
|
19
|
19
3WF-2153E-10-00 Emblem, Yamaha |
3WF-2153E-10-00 |
from US $7.65 |
||
|
19
|
19
3WF-2153E-11-00 |
3WF-2153E-11-00 |
from US $7.65 |
||
|
20
|
20
3Y6-85130-01-00 Rear Reflector Assy |
3Y6-85130-01-00 |
from US $21.40 |
||
| replacement | |||||
|
20
|
20
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $12.80 |
||
|
21
|
21
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
21
|
21
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
22
|
22
1FK-85130-00-00 Rear Reflector Assy |
1FK-85130-00-00 |
from US $27.05 |
||
| replacement | |||||
|
22
|
22
8Y7-85130-00-00 Rear Reflector Assy |
8Y7-85130-00-00 |
US $22.34 |
||
|
23
|
23
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
23
|
23
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
