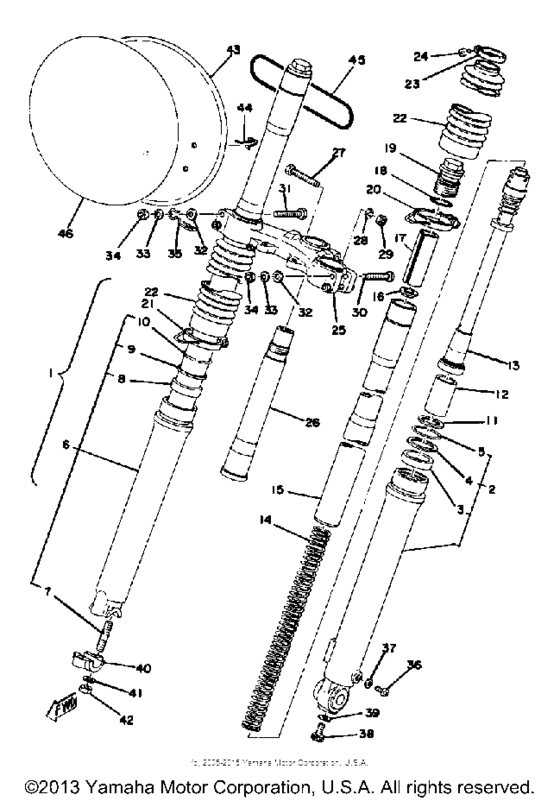

Front fork Diagram Yamaha YZ100
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YZ100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1J4-23101-00-00
Front Fork Assembly
|
1J4-23101-00-00 |
— | ||
|
2
|
2
498-23126-00-00
Tube, Outer 1
|
498-23126-00-00 |
— | ||
|
3
|
3
278-23145-51-00
Oil Seal
|
278-23145-51-00 |
— | ||
| replacement | |||||
|
3
|
3
584-23145-50-00 Oil Seal |
584-23145-50-00 |
from US $24.65 |
||
|
4
|
4
214-23146-00-00
Washer, Oil Seal
|
214-23146-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
214-23156-00-00
Clip, Oil Seal
|
214-23156-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
498-23136-00-00
Tube, Outer 2
|
498-23136-00-00 |
— | ||
|
7
|
7
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
8
|
8
278-23145-51-00
Oil Seal
|
278-23145-51-00 |
— | ||
| replacement | |||||
|
8
|
8
584-23145-50-00 Oil Seal |
584-23145-50-00 |
from US $24.65 |
||
|
9
|
9
214-23146-00-00
Washer, Oil Seal
|
214-23146-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
214-23156-00-00
Clip, Oil Seal
|
214-23156-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
934-50300-33-00
Circlip, Inner
|
934-50300-33-00 |
— | ||
|
12
|
12
509-23171-00-00
Piston, Front Fork
|
509-23171-00-00 |
— | ||
|
13
|
13
509-23170-01-00
Cylinder, Front Fork
|
509-23170-01-00 |
— | ||
|
14
|
14
509-23141-01-00
Spring, Front Fork
|
509-23141-01-00 |
— | ||
|
15
|
15
509-23124-01-00
Tube, Inner 1
|
509-23124-01-00 |
— | ||
|
16
|
16
278-23142-50-00
Seat, Spring Upper
|
278-23142-50-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
33Y-23118-00-00
Spacer
|
33Y-23118-00-00 |
— | ||
|
18
|
18
214-23114-00-00
Gasket
|
214-23114-00-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
291-23111-60-00
Bolt, Cap
|
291-23111-60-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
904-60540-61-00
Clamp, Hose
|
904-60540-61-00 |
— | ||
|
21
|
21
904-60540-62-00
Band
308-14455-00 |
904-60540-62-00 |
— | ||
|
22
|
22
1J4-23191-00-00
Boot, Front Fork
|
1J4-23191-00-00 |
— | ||
|
23
|
23
214-23192-40-00
Band
|
214-23192-40-00 |
— | ||
|
24
|
24
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
25
|
25
483-23345-00-33
Bracket, Lower
LW GLOSS BK |
483-23345-00-33 |
— | ||
|
26
|
26
1E6-23341-00-00
Shaft, Steering
|
1E6-23341-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
322-23356-00-00
Bolt 2
|
322-23356-00-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
29
|
29
322-23357-00-00
Nut
|
322-23357-00-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
31
|
31
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
32
|
32
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
32
|
32
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
33
|
33
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
34
|
34
901-70081-80-00
Nut, Hexagon
|
901-70081-80-00 |
— | ||
| replacement | |||||
|
34
|
34
90170-08216-00 Nut, Hexagon |
90170-08216-00 |
from US $2.88 |
||
|
35
|
35
509-23319-00-00
Holder, Cable 2
|
509-23319-00-00 |
— | ||
|
36
|
36
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
37
|
37
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
38
|
38
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
38
|
38
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
39
|
39
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
40
|
40
291-23167-61-00
Holder, Axle (291-23167-60)
291-23167-60 |
291-23167-61-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
291-23167-60 |
999-99999-99-00 |
— | ||
|
41
|
41
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
41
|
41
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
42
|
42
90170-08176-00 Nut, Hexagon |
90170-08176-00 |
US $3.40 |
||
| replacement | |||||
|
42
|
42
90170-08158-00 Nut, Hexagon (509) |
90170-08158-00 |
from US $2.08 |
||
|
43
|
43
322-23485-00-00
Plate, Number
|
322-23485-00-00 |
— | ||
|
44
|
44
431-23486-02-00
Stay, Plate
|
431-23486-02-00 |
— | ||
|
45
|
45
288-23489-00-00
Band
|
288-23489-00-00 |
— | ||
|
46
|
46
322-23395-00-00
Emblem
|
322-23395-00-00 |
— | ||
