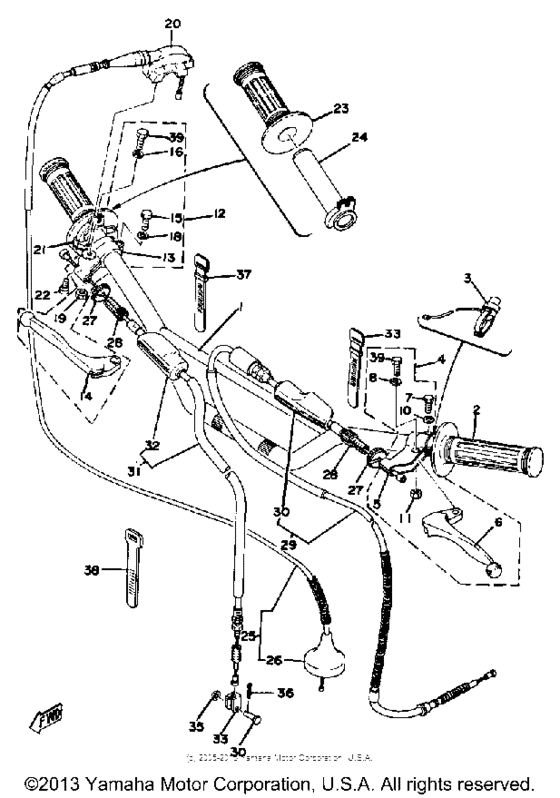

Handle - wire Diagram Yamaha YZ100
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YZ100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1J4-26111-00-00
Handlebar
|
1J4-26111-00-00 |
— | ||
|
2
|
2
1E6-26241-00-00 Grip Lh (L.h.)LH L.H. |
1E6-26241-00-00 |
from US $12.46 |
||
|
3
|
3
23X-83976-00-00 Switch, Handle 1 |
23X-83976-00-00 |
from US $35.92 |
||
| replacement | |||||
|
3
|
3
23X-83976-01-00 Switch, Handle 1 |
23X-83976-01-00 |
from US $41.81 |
||
|
4
|
4
583-82910-11-00
Lever Holder Assembly 1 (583-82
583-82 |
583-82910-11-00 |
— | ||
|
5
|
5
214-82911-01-00 Holder, Lever 1LW GLOSS BK |
214-82911-01-00 |
from US $41.72 |
||
|
6
|
6
1J3-83912-20-00 Lever LLW GLOSS BK |
1J3-83912-20-00 |
from US $27.77 |
||
|
7
|
7
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
7
|
7
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
8
|
8
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
11
|
11
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
12
|
12
583-82920-11-00
Lever Holder Assembly 2
|
583-82920-11-00 |
— | ||
|
13
|
13
516-82921-30-00 Holder, Lever 2LW GLOSS BK |
516-82921-30-00 |
US $71.14 |
||
|
14
|
14
2A6-83922-00-00 Lever RLW GLOSS BK |
2A6-83922-00-00 |
from US $24.23 |
||
|
15
|
15
970-03060-22-00 Bolt (661)661 |
970-03060-22-00 |
from US $2.12 |
||
| replacement | |||||
|
15
|
15
97013-06022-00 Bolt (97313-06022-00)661 |
97013-06022-00 |
from US $1.28 |
||
|
16
|
16
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
20
|
20
322-26281-00-98
Cap, Grip Upper
|
322-26281-00-98 |
— | ||
|
21
|
21
322-26282-00-00 Cap, Grip Under |
322-26282-00-00 |
from US $14.45 |
||
|
22
|
22
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
23
|
23
583-26242-00-00 Grip Rh (R.h.)RH R.H. |
583-26242-00-00 |
from US $31.17 |
||
|
24
|
24
322-26243-00-00 Tube, Throttle Guide |
322-26243-00-00 |
from US $12.61 |
||
| replacement | |||||
|
24
|
24
22W-26243-00-00 Tube, Throttle Guide |
22W-26243-00-00 |
from US $15.12 |
||
|
25
|
25
537-26311-00-00
Cable, Throttle 1
|
537-26311-00-00 |
— | ||
|
26
|
26
431-26329-00-00
Cap, Rubber
|
431-26329-00-00 |
— | ||
|
27
|
27
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
27
|
27
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
28
|
28
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
28
|
28
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
29
|
29
537-26335-00-00
Cable, clutch
|
537-26335-00-00 |
— | ||
|
30
|
30
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
30
|
30
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
31
|
31
1G8-26341-00-00
Cable, Brake
|
1G8-26341-00-00 |
— | ||
|
32
|
32
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
32
|
32
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
33
|
33
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
34
|
34
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
35
|
35
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
36
|
36
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
36
|
36
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
37
|
37
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
38
|
38
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
38
|
38
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
38
|
38
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
39
|
39
901-09067-97-00
Bolt(10W)
|
901-09067-97-00 |
— | ||
| replacement | |||||
|
39
|
39
90109-061F3-00 Bolt |
90109-061F3-00 |
from US $2.27 |
||
