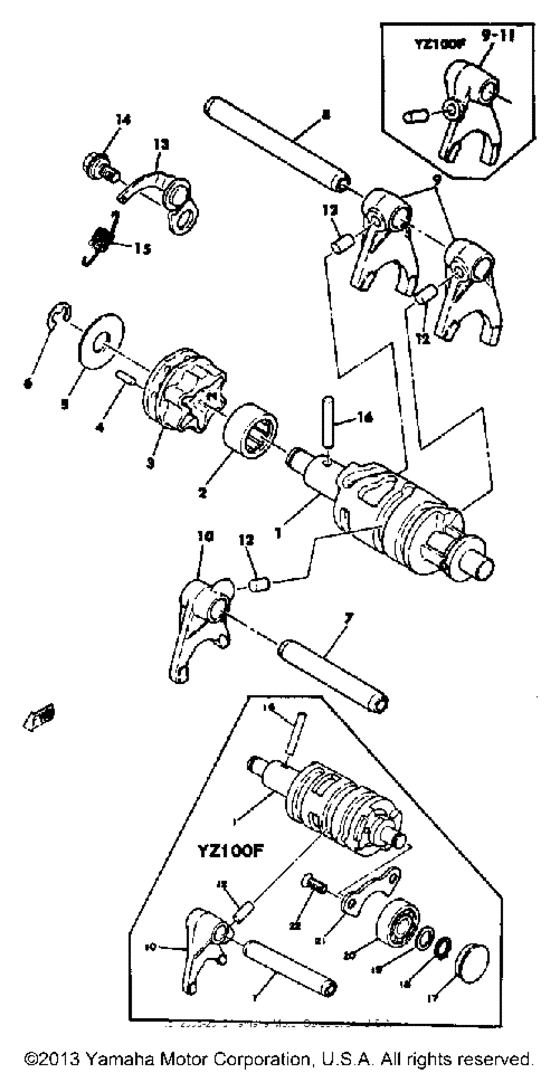

Shift cam - fork Diagram Yamaha YZ100
- Year
- 1977
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YZ100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1W1-18540-00-00 Shift Cam Assembly |
1W1-18540-00-00 |
from US $128.35 |
||
|
1
|
1
2W5-18540-00-00
Shift Cam Assembly
|
2W5-18540-00-00 |
— | ||
|
2
|
2
93315-21813-00 Bearing |
93315-21813-00 |
from US $8.08 |
||
|
3
|
3
1W1-18185-00-00 Segment |
1W1-18185-00-00 |
from US $42.75 |
||
|
4
|
4
93604-12037-00 Pin, Dowel |
93604-12037-00 |
from US $1.39 |
||
|
5
|
5
1W1-18561-00-00 Plate, Side 1 |
1W1-18561-00-00 |
from US $2.69 |
||
|
6
|
6
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.66 |
||
|
7
|
7
2A6-18531-00-00 Bar, Shift Fork Guide 1 |
2A6-18531-00-00 |
from US $18.99 |
||
|
8
|
8
2A6-18535-00-00 Bar, Shift Fork Guide 2 |
2A6-18535-00-00 |
from US $6.74 |
||
|
9
|
9
2W6-18511-00-00
Fork, Shift 1
|
2W6-18511-00-00 |
— | ||
|
9
|
9
1W1-18511-01-00
Fork, Shift 1
|
1W1-18511-01-00 |
— | ||
|
10
|
10
2A6-18512-00-00 Fork, Shift 2 |
2A6-18512-00-00 |
from US $43.87 |
||
|
10
|
10
2W6-18512-00-00
Fork, Shift 2
|
2W6-18512-00-00 |
— | ||
|
11
|
11
2W6-18513-00-00
Fork, Shift 3
|
2W6-18513-00-00 |
— | ||
|
12
|
12
90250-06013-00 Pin, Straight |
90250-06013-00 |
from US $1.70 |
||
|
13
|
13
1W1-18140-00-00 Stopper Lever Assembly |
1W1-18140-00-00 |
from US $18.84 |
||
|
14
|
14
50W-21631-00-00 Bolt |
50W-21631-00-00 |
from US $2.55 |
||
| replacement | |||||
|
14
|
14
90109-06190-00 Bolt |
90109-06190-00 |
from US $2.45 |
||
|
15
|
15
90506-09156-00 Spring, Tension |
90506-09156-00 |
from US $2.41 |
||
|
16
|
16
93604-30018-00 Pin, Dowel |
93604-30018-00 |
from US $2.55 |
||
|
17
|
17
903-38230-90-00
Plug, Spec''l Shape
|
903-38230-90-00 |
— | ||
|
18
|
18
99009-10400-00 Circlip |
99009-10400-00 |
from US $1.50 |
||
|
19
|
19
90201-10614-00 Washer, Plate |
90201-10614-00 |
from US $1.70 |
||
|
20
|
20
93306-20110-00 Bearing |
93306-20110-00 |
from US $20.12 |
||
| replacement | |||||
|
20
|
20
933-06201-19-00 Bearing |
933-06201-19-00 |
from US $12.12 |
||
|
21
|
21
2W5-15381-00-00
Plate, Brng Cover
|
2W5-15381-00-00 |
— | ||
|
22
|
22
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
