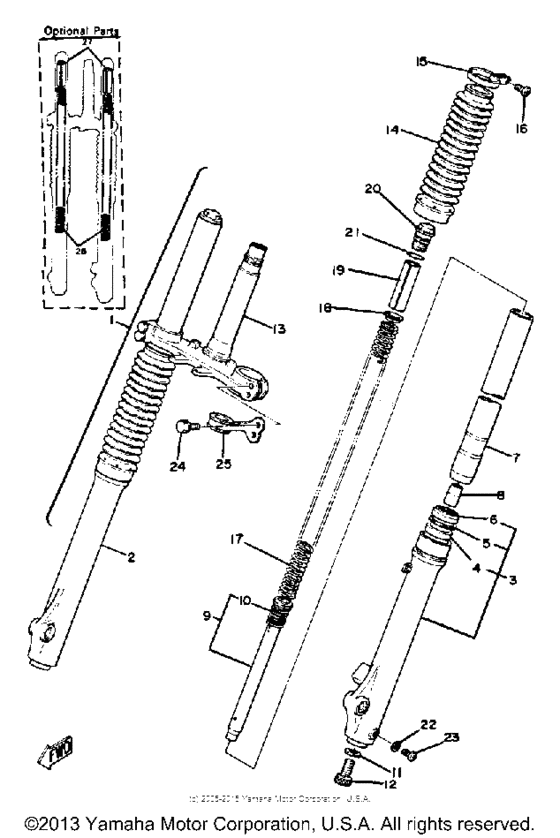

Front fork Diagram Yamaha YZ100
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 100
- Model
- YZ100
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R2-23101-00-00
Front Fork Assembly
|
3R2-23101-00-00 |
— | ||
|
2
|
2
3R2-23106-00-00 Outer Tube LhLH |
3R2-23106-00-00 |
US $334.35 |
||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
LH |
999-99999-99-00 |
— | ||
|
3
|
3
3R2-23107-00-00
Outer Tube Rh
RH |
3R2-23107-00-00 |
— | ||
|
4
|
4
1T3-23145-00-00 Oil Seal |
1T3-23145-00-00 |
from US $7.42 |
||
| replacement | |||||
|
4
|
4
93110-35019-00 Oil Seal |
93110-35019-00 |
from US $14.59 |
||
|
5
|
5
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
6
|
6
4G0-23144-01-00 Seal, Dust |
4G0-23144-01-00 |
from US $21.39 |
||
|
7
|
7
3R2-23110-00-00
Inner Tube 1
|
3R2-23110-00-00 |
— | ||
|
8
|
8
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
9
|
9
3R2-23170-00-00
Cylinder, Frtfrk
|
3R2-23170-00-00 |
— | ||
|
10
|
10
509-23151-L0-00
Spring, Rebound
|
509-23151-L0-00 |
— | ||
|
11
|
11
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
12
|
12
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
12
|
12
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
13
|
13
3R2-23340-00-33
Under Bracket
|
3R2-23340-00-33 |
— | ||
|
14
|
14
3R2-23191-00-00
Boot, Front Fork
|
3R2-23191-00-00 |
— | ||
|
15
|
15
341-92090-60-00 Band, B00T |
341-92090-60-00 |
from US $28.30 |
||
|
16
|
16
509-23194-L0-00 Screw, Boot Band |
509-23194-L0-00 |
from US $2.98 |
||
|
17
|
17
3R2-23141-00-00
Spring, Front Fork
|
3R2-23141-00-00 |
— | ||
|
18
|
18
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
19
|
19
11H-23118-00-00
Spacer
|
11H-23118-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
2W6-23111-00-00
Bolt, Cap (583-23111-00)
583-23111-00 |
2W6-23111-00-00 |
— | ||
|
21
|
21
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
22
|
22
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
23
|
23
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
24
|
24
5X6-23181-L0-00
Bolt, Hexagon Socket Head
|
5X6-23181-L0-00 |
— | ||
|
25
|
25
3R4-23389-00-00 Guide, Wire |
3R4-23389-00-00 |
from US $15.58 |
||
|
26
|
26
3R2-23141-30-00
Spring, Front Fork
|
3R2-23141-30-00 |
— | ||
|
26
|
26
3R2-23141-20-00
Spring, Front Fork
|
3R2-23141-20-00 |
— | ||
|
27
|
27
3R2-23118-60-00
Spacer
|
3R2-23118-60-00 |
— | ||
