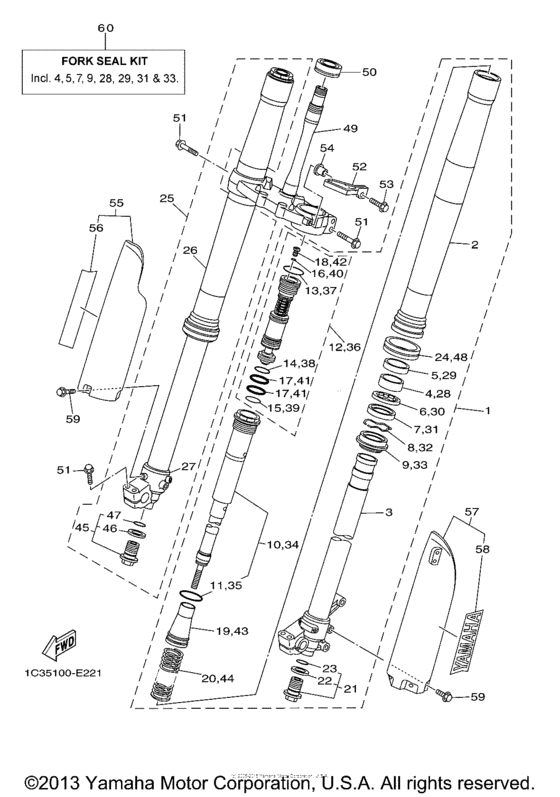

Front fork Diagram Yamaha YZ125
- Year
- 2007
- Sales region
- USA
- Engine Capacity
- 125
- Model
- YZ125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1C3-23102-A0-00 Front Fork Assy (L.h) |
1C3-23102-A0-00 |
US $1,616.94 |
||
|
2
|
2
1C3-23136-N0-00 Tube, Outer 2 |
1C3-23136-N0-00 |
US $835.88 |
||
|
3
|
3
5XC-23120-L0-00 Inner Tube Comp.2 |
5XC-23120-L0-00 |
from US $503.32 |
||
|
4
|
4
5XE-23171-L0-00 Piston, Front Fork |
5XE-23171-L0-00 |
from US $17.14 |
||
|
5
|
5
5XE-23125-L0-00 Metal, Slide 1INCL. IN FORK SEAL KIT |
5XE-23125-L0-00 |
from US $12.61 |
||
|
6
|
6
5XE-23146-L0-00 Washer, Oil Seal |
5XE-23146-L0-00 |
from US $11.05 |
||
|
7
|
7
1C3-23145-M0-00
Oil Seal
|
1C3-23145-M0-00 |
— | ||
| replacement | |||||
|
7
|
7
1C3-23145-L0-00 Oil Seal |
1C3-23145-L0-00 |
from US $16.84 |
||
|
8
|
8
5XE-23153-L0-00 Ring, Snap |
5XE-23153-L0-00 |
from US $2.02 |
||
|
9
|
9
5XE-23144-L0-00 Seal, Dust |
5XE-23144-L0-00 |
from US $15.16 |
||
|
10
|
10
1C3-23170-R0-00 Cylinder Comp., Front Fork |
1C3-23170-R0-00 |
from US $614.56 |
||
|
11
|
11
1C3-23147-L0-00 O-Ring |
1C3-23147-L0-00 |
from US $2.34 |
||
|
12
|
12
1C3-2316A-N0-00
Valve Comp
|
1C3-2316A-N0-00 |
— | ||
|
13
|
13
1C3-23188-L0-00 O-Ring |
1C3-23188-L0-00 |
from US $2.38 |
||
| replacement | |||||
|
13
|
13
1C3-23188-L1-00 O-Ring |
1C3-23188-L1-00 |
from US $2.98 |
||
|
14
|
14
1C3-23188-N0-00 O-Ring |
1C3-23188-N0-00 |
from US $2.98 |
||
|
15
|
15
1C3-23188-P0-00 O-Ring |
1C3-23188-P0-00 |
from US $2.98 |
||
|
16
|
16
1C3-23188-R0-00 O-Ring |
1C3-23188-R0-00 |
from US $2.38 |
||
| replacement | |||||
|
16
|
16
1C3-23188-R1-00 O-Ring |
1C3-23188-R1-00 |
from US $2.98 |
||
|
17
|
17
1AE-23147-00-00 O-Ring |
1AE-23147-00-00 |
from US $2.34 |
||
| replacement | |||||
|
17
|
17
1W4-23114-L0-00 Gasket |
1W4-23114-L0-00 |
from US $7.93 |
||
|
18
|
18
1C3-23190-L0-00 Air Valve Comp |
1C3-23190-L0-00 |
from US $16.43 |
||
| replacement | |||||
|
18
|
18
1C3-23190-L1-00 Air Valve Comp. |
1C3-23190-L1-00 |
from US $16.43 |
||
|
19
|
19
1C3-23142-L0-00 Seat, Spring Upper |
1C3-23142-L0-00 |
from US $86.63 |
||
|
20
|
20
1C3-23141-N1-00 Spring, Front Fork(K=4.0N/mm) |
1C3-23141-N1-00 |
from US $129.32 |
||
|
21
|
21
1C3-23111-L1-00 Bolt, Cap |
1C3-23111-L1-00 |
from US $95.33 |
||
|
22
|
22
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
23
|
23
276-23114-00-00
Gasket
|
276-23114-00-00 |
— | ||
| replacement | |||||
|
23
|
23
276-23114-01-00 Gasket |
276-23114-01-00 |
from US $1.21 |
||
|
24
|
24
1C3-2314F-M0-00 Protecter Guide Comp., 1 |
1C3-2314F-M0-00 |
from US $33.72 |
||
|
25
|
25
1C3-23103-A0-00 Front Fork Assy (R.h) |
1C3-23103-A0-00 |
US $1,616.94 |
||
|
26
|
26
1C3-23136-N0-00 Tube, Outer 2 |
1C3-23136-N0-00 |
US $835.88 |
||
|
27
|
27
5XC-23110-L0-00 Inner Tube Comp.1 |
5XC-23110-L0-00 |
US $471.76 |
||
|
28
|
28
5XE-23171-L0-00 Piston, Front Fork |
5XE-23171-L0-00 |
from US $17.14 |
||
|
29
|
29
5XE-23125-L0-00 Metal, Slide 1INCL. IN FORK SEAL KIT |
5XE-23125-L0-00 |
from US $12.61 |
||
|
30
|
30
5XE-23146-L0-00 Washer, Oil Seal |
5XE-23146-L0-00 |
from US $11.05 |
||
|
31
|
31
1C3-23145-M0-00
Oil Seal
|
1C3-23145-M0-00 |
— | ||
| replacement | |||||
|
31
|
31
1C3-23145-L0-00 Oil Seal |
1C3-23145-L0-00 |
from US $16.84 |
||
|
32
|
32
5XE-23153-L0-00 Ring, Snap |
5XE-23153-L0-00 |
from US $2.02 |
||
|
33
|
33
5XE-23144-L0-00 Seal, Dust |
5XE-23144-L0-00 |
from US $15.16 |
||
|
34
|
34
1C3-23170-R0-00 Cylinder Comp., Front Fork |
1C3-23170-R0-00 |
from US $614.56 |
||
|
35
|
35
1C3-23147-L0-00 O-Ring |
1C3-23147-L0-00 |
from US $2.34 |
||
|
36
|
36
1C3-2316A-N0-00
Valve Comp
|
1C3-2316A-N0-00 |
— | ||
|
37
|
37
1C3-23188-L0-00 O-Ring |
1C3-23188-L0-00 |
from US $2.38 |
||
| replacement | |||||
|
37
|
37
1C3-23188-L1-00 O-Ring |
1C3-23188-L1-00 |
from US $2.98 |
||
|
38
|
38
1C3-23188-N0-00 O-Ring |
1C3-23188-N0-00 |
from US $2.98 |
||
|
39
|
39
1C3-23188-P0-00 O-Ring |
1C3-23188-P0-00 |
from US $2.98 |
||
|
40
|
40
1C3-23188-R0-00 O-Ring |
1C3-23188-R0-00 |
from US $2.38 |
||
| replacement | |||||
|
40
|
40
1C3-23188-R1-00 O-Ring |
1C3-23188-R1-00 |
from US $2.98 |
||
|
41
|
41
1AE-23147-00-00 O-Ring |
1AE-23147-00-00 |
from US $2.34 |
||
| replacement | |||||
|
41
|
41
1W4-23114-L0-00 Gasket |
1W4-23114-L0-00 |
from US $7.93 |
||
|
42
|
42
1C3-23190-L0-00 Air Valve Comp |
1C3-23190-L0-00 |
from US $16.43 |
||
| replacement | |||||
|
42
|
42
1C3-23190-L1-00 Air Valve Comp. |
1C3-23190-L1-00 |
from US $16.43 |
||
|
43
|
43
1C3-23142-L0-00 Seat, Spring Upper |
1C3-23142-L0-00 |
from US $86.63 |
||
|
44
|
44
1C3-23141-N1-00 Spring, Front Fork(K=4.0N/mm) |
1C3-23141-N1-00 |
from US $129.32 |
||
|
45
|
45
1C3-23111-L1-00 Bolt, Cap |
1C3-23111-L1-00 |
from US $95.33 |
||
|
46
|
46
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
47
|
47
276-23114-00-00
Gasket
|
276-23114-00-00 |
— | ||
| replacement | |||||
|
47
|
47
276-23114-01-00 Gasket |
276-23114-01-00 |
from US $1.21 |
||
|
48
|
48
1C3-2314F-M0-00 Protecter Guide Comp., 1 |
1C3-2314F-M0-00 |
from US $33.72 |
||
|
49
|
49
1C3-23340-M0-00 Under Bracket Comp |
1C3-23340-M0-00 |
from US $522.41 |
||
|
50
|
50
93332-00081-00 Bearing |
93332-00081-00 |
from US $50.98 |
||
|
51
|
51
90105-08134-00 Bolt, Flange |
90105-08134-00 |
from US $1.98 |
||
|
52
|
52
5XE-23389-00-00 Guide, Cable |
5XE-23389-00-00 |
from US $3.04 |
||
|
53
|
53
90105-06107-00 Bolt, Flange |
90105-06107-00 |
from US $1.70 |
||
|
54
|
54
90387-06104-00 Collar |
90387-06104-00 |
from US $1.48 |
||
|
55
|
55
1C3-2314J-10-00 Protecter Comp., 2 |
1C3-2314J-10-00 |
from US $40.62 |
||
|
56
|
56
4XL-2153A-10-00
Emblem, Yamaha
|
4XL-2153A-10-00 |
— | ||
| replacement | |||||
|
56
|
56
4XL-2153A-11-00 Emblem, Yamaha |
4XL-2153A-11-00 |
from US $11.16 |
||
|
57
|
57
1C3-2314H-10-00 Protecter Comp., 1 |
1C3-2314H-10-00 |
from US $36.04 |
||
| replacement | |||||
|
57
|
57
1C3-2314H-11-00 Protecter Comp. 1 |
1C3-2314H-11-00 |
US $41.09 |
||
|
58
|
58
4XL-2153A-10-00
Emblem, Yamaha
|
4XL-2153A-10-00 |
— | ||
| replacement | |||||
|
58
|
58
4XL-2153A-11-00 Emblem, Yamaha |
4XL-2153A-11-00 |
from US $11.16 |
||
|
59
|
59
3SP-23356-L0-00 Bolt 2 |
3SP-23356-L0-00 |
from US $2.55 |
||
|
60
|
60
5XE-W003B-00-00 Fork Seal Kit |
5XE-W003B-00-00 |
from US $77.96 |
||
| replacement | |||||
|
60
|
60
1C3-W003B-00-00 Fork Seal Kit |
1C3-W003B-00-00 |
from US $86.69 |
||
