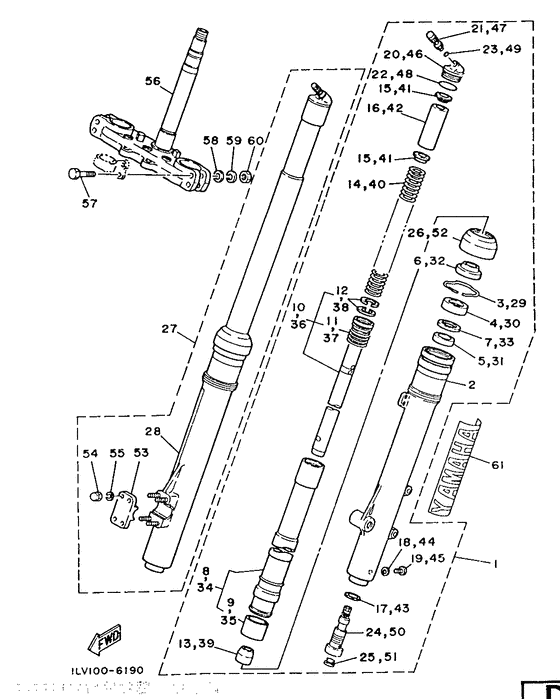

Front fork Diagram Yamaha YZ250 YZ250
- Year
- 1986
- Colour
- White (WW; 0036)
- Model code
- 1LU
- Sales region
- Europe (General) (999)
- Базовая модель
- YZ250
- Engine Capacity
- 250
- Model
- YZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1LV-23102-M0-00
Front Fork Assy (L.h)
|
1LV-23102-M0-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
1LX-23126-L0-00
Tube, Outer 1
|
1LX-23126-L0-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $6.11 |
||
|
04
|
04
23X-23145-L0-00 Oil Seal |
23X-23145-L0-00 |
from US $31.31 |
||
|
05
|
05
4V4-23125-L0-00
Metal, Slide 1
|
4V4-23125-L0-00 |
— | ||
| replacement | |||||
|
05
|
05
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $18.52 |
||
|
06
|
06
23X-23144-L0-00 Seal, Dust |
23X-23144-L0-00 |
from US $25.93 |
||
|
07
|
07
4V4-23146-60-00
Washer, Oil Seal
|
4V4-23146-60-00 |
— | ||
|
08
|
08
1LX-23110-L0-00
Inner Tube 1
|
1LX-23110-L0-00 |
— | ||
| replacement | |||||
|
08
|
08
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
09
|
09
4V4-23171-L0-00
Piston, Front Fork
|
4V4-23171-L0-00 |
— | ||
|
10
|
10
1LV-23170-L0-00
Cylinder Comp., Front Fork
|
1LV-23170-L0-00 |
— | ||
| replacement | |||||
|
10
|
10
1LV-23170-M0-00
Cylinder, Front Fork
|
1LV-23170-M0-00 |
— | ||
|
11
|
11
55Y-23152-M0-00
Spring, Sub
|
55Y-23152-M0-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
4V4-23157-L0-00
Ring, Piston Front Fork
|
4V4-23157-L0-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
23X-23173-L0-00
Spindle, Taper
|
23X-23173-L0-00 |
— | ||
|
14
|
14
39X-23141-20-00
Spring, Front Fork Hard (K@0
|
39X-23141-20-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
4C4-23142-L0-00
Seat, Spring Upper
|
4C4-23142-L0-00 |
— | ||
|
16
|
16
5X6-23118-10-00
Spacer (L=80)
|
5X6-23118-10-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
23X-23158-L0-00 Gasket |
23X-23158-L0-00 |
from US $6.16 |
||
|
18
|
18
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
19
|
19
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
19
|
19
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
19
|
19
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
20
|
20
43M-23111-L0-00
Bolt, Cap
|
43M-23111-L0-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
22
|
22
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
23
|
23
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
24
|
24
56A-2316A-L0-00
Valve Comp
|
56A-2316A-L0-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
55Y-2312G-M0-00 Plug |
55Y-2312G-M0-00 |
from US $8.88 |
||
|
26
|
26
1LX-23144-L0-00
Seal, Dust
|
1LX-23144-L0-00 |
— | ||
|
27
|
27
1LV-23103-M0-00
Front Fork Assy (R.h)
|
1LV-23103-M0-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
1LX-23136-L0-00
Tube, Outer 2
|
1LX-23136-L0-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $6.11 |
||
|
30
|
30
23X-23145-L0-00 Oil Seal |
23X-23145-L0-00 |
from US $31.31 |
||
|
31
|
31
4V4-23125-L0-00
Metal, Slide 1
|
4V4-23125-L0-00 |
— | ||
| replacement | |||||
|
31
|
31
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $18.52 |
||
|
32
|
32
23X-23144-L0-00 Seal, Dust |
23X-23144-L0-00 |
from US $25.93 |
||
|
34
|
34
1LX-23110-L0-00
Inner Tube 1
|
1LX-23110-L0-00 |
— | ||
| replacement | |||||
|
34
|
34
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
35
|
35
4V4-23171-L0-00
Piston, Front Fork
|
4V4-23171-L0-00 |
— | ||
|
36
|
36
1LV-23170-L0-00
Cylinder Comp., Front Fork
|
1LV-23170-L0-00 |
— | ||
| replacement | |||||
|
36
|
36
1LV-23170-M0-00
Cylinder, Front Fork
|
1LV-23170-M0-00 |
— | ||
|
37
|
37
55Y-23152-M0-00
Spring, Sub
|
55Y-23152-M0-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
4V4-23157-L0-00
Ring, Piston Front Fork
|
4V4-23157-L0-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
23X-23173-L0-00
Spindle, Taper
|
23X-23173-L0-00 |
— | ||
|
40
|
40
39X-23141-20-00
Spring, Front Fork Hard (K@0
|
39X-23141-20-00 |
— | ||
| replacement | |||||
|
40
|
40
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
42
|
42
5X6-23118-10-00
Spacer (L=80)
|
5X6-23118-10-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
43
|
43
23X-23158-L0-00 Gasket |
23X-23158-L0-00 |
from US $6.16 |
||
|
44
|
44
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
45
|
45
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
45
|
45
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
45
|
45
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
46
|
46
43M-23111-L0-00
Bolt, Cap
|
43M-23111-L0-00 |
— | ||
| replacement | |||||
|
46
|
46
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
47
|
47
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
48
|
48
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
49
|
49
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
50
|
50
56A-2316A-L0-00
Valve Comp
|
56A-2316A-L0-00 |
— | ||
| replacement | |||||
|
50
|
50
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
51
|
51
55Y-2312G-M0-00 Plug |
55Y-2312G-M0-00 |
from US $8.88 |
||
|
52
|
52
1LX-23144-L0-00
Seal, Dust
|
1LX-23144-L0-00 |
— | ||
|
53
|
53
43M-23167-L0-00
Holder, Axle
|
43M-23167-L0-00 |
— | ||
| replacement | |||||
|
53
|
53
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
54
|
54
5Y3-23393-00-00 Nut, Special |
5Y3-23393-00-00 |
from US $7.08 |
||
|
55
|
55
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
55
|
55
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
56
|
56
1LX-23340-L0-00
Under Bracket
|
1LX-23340-L0-00 |
— | ||
| replacement | |||||
|
56
|
56
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
57
|
57
90109-08397-00 Bolt |
90109-08397-00 |
from US $9.70 |
||
| replacement | |||||
|
57
|
57
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
58
|
58
90201-08544-00 Washer, Plate |
90201-08544-00 |
US $1.56 |
||
| replacement | |||||
|
58
|
58
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
59
|
59
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
60
|
60
95311-08600-00 Nut |
95311-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
60
|
60
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
60
|
60
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
61
|
61
1LX-23108-00-00
Emblem
|
1LX-23108-00-00 |
— | ||
| replacement | |||||
|
61
|
61
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
