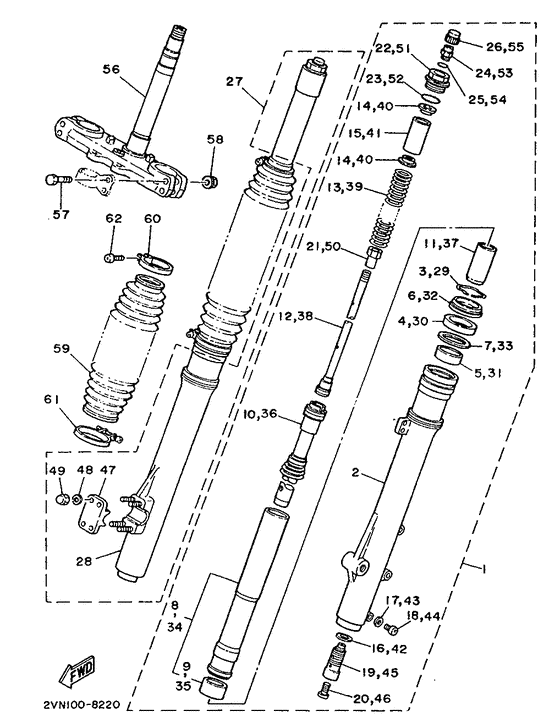

Front fork Diagram Yamaha YZ250 YZ250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 2VM
- Sales region
- Europe (General) (999)
- Базовая модель
- YZ250
- Engine Capacity
- 250
- Model
- YZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2VM-23102-MO-00
Front Fork Assy (L.h)
|
2VM-23102-MO-00 |
— | ||
|
02
|
02
2VM-23126-LO-00
Tube, Outer (Left)
|
2VM-23126-LO-00 |
— | ||
|
03
|
03
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $4.50 |
||
|
04
|
04
2VM-23145-L0-00
Oil Seal
|
2VM-23145-L0-00 |
— | ||
| replacement | |||||
|
04
|
04
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
05
|
05
4V4-23125-L0-00
Metal, Slide 1
|
4V4-23125-L0-00 |
— | ||
| replacement | |||||
|
05
|
05
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $17.86 |
||
|
06
|
06
2VM-23144-L0-00 Seal, Dust |
2VM-23144-L0-00 |
from US $22.75 |
||
|
07
|
07
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
08
|
08
2VM-23110-L0-00
Inner Tube Comp.1
|
2VM-23110-L0-00 |
— | ||
|
09
|
09
4V4-23171-L0-00
Piston, Front Fork
|
4V4-23171-L0-00 |
— | ||
|
10
|
10
2VM-23170-L0-00
Cylinder.comp., Frt.fork
|
2VM-23170-L0-00 |
— | ||
|
11
|
11
2VM-23173-L0-00 Spindle, Taper |
2VM-23173-L0-00 |
US $41.04 |
||
|
12
|
12
2VM-2314A-M0-00
Piston Rod Assy
|
2VM-2314A-M0-00 |
— | ||
| replacement | |||||
|
12
|
12
2VN-2314A-L0-00
Piston Rod Assembly
|
2VN-2314A-L0-00 |
— | ||
|
13
|
13
2VM-23141-M0-00
Spring, F.frk. (.400 (Hard))
|
2VM-23141-M0-00 |
— | ||
|
14
|
14
4V4-23142-L0-00 Seat, Spring Upper |
4V4-23142-L0-00 |
from US $11.33 |
||
|
15
|
15
2VM-23118-L0-00
Spacer
|
2VM-23118-L0-00 |
— | ||
|
16
|
16
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
17
|
17
122-23129-L0-00
Gasket, Drain Plug
|
122-23129-L0-00 |
— | ||
|
18
|
18
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
18
|
18
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
18
|
18
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
19
|
19
2VM-2316A-L0-00
Valve, Comp
|
2VM-2316A-L0-00 |
— | ||
|
20
|
20
55Y-2312G-M0-00 Plug |
55Y-2312G-M0-00 |
from US $8.88 |
||
|
21
|
21
90170-10372-00
Nut
|
90170-10372-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
2VM-23111-L0-00 Bolt, Cap |
2VM-23111-L0-00 |
from US $105.71 |
||
|
23
|
23
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
24
|
24
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
25
|
25
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
26
|
26
2VN-23185-L0-00 Cover, Valve |
2VN-23185-L0-00 |
from US $7.23 |
||
|
27
|
27
2VM-23103-M0-00
Front Fork Assy (R.h)
|
2VM-23103-M0-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
2VM-23136-L0-00
Tube, Outer (Right)
|
2VM-23136-L0-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
4V4-23153-L0-00 Ring, Snap |
4V4-23153-L0-00 |
from US $4.50 |
||
|
30
|
30
2VM-23145-L0-00
Oil Seal
|
2VM-23145-L0-00 |
— | ||
| replacement | |||||
|
30
|
30
3XJ-23145-L0-00 Oil Seal |
3XJ-23145-L0-00 |
from US $15.84 |
||
|
31
|
31
4V4-23125-L0-00
Metal, Slide 1
|
4V4-23125-L0-00 |
— | ||
| replacement | |||||
|
31
|
31
5EB-23125-00-00 Metal, Slide 1 |
5EB-23125-00-00 |
from US $17.86 |
||
|
32
|
32
2VM-23144-L0-00 Seal, Dust |
2VM-23144-L0-00 |
from US $22.75 |
||
|
33
|
33
4V4-23146-L0-00 Washer, Oil Seal |
4V4-23146-L0-00 |
from US $9.29 |
||
|
34
|
34
2VM-23110-L0-00
Inner Tube Comp.1
|
2VM-23110-L0-00 |
— | ||
|
35
|
35
4V4-23171-L0-00
Piston, Front Fork
|
4V4-23171-L0-00 |
— | ||
|
36
|
36
2VM-23170-L0-00
Cylinder.comp., Frt.fork
|
2VM-23170-L0-00 |
— | ||
|
37
|
37
2VM-23173-L0-00 Spindle, Taper |
2VM-23173-L0-00 |
US $41.04 |
||
|
38
|
38
2VM-2314A-M0-00
Piston Rod Assy
|
2VM-2314A-M0-00 |
— | ||
| replacement | |||||
|
38
|
38
2VN-2314A-L0-00
Piston Rod Assembly
|
2VN-2314A-L0-00 |
— | ||
|
39
|
39
2VM-23141-L0-00
Spring, F.frk. (.375)
|
2VM-23141-L0-00 |
— | ||
|
40
|
40
4V4-23142-L0-00 Seat, Spring Upper |
4V4-23142-L0-00 |
from US $11.33 |
||
|
41
|
41
2VM-23118-L0-00
Spacer
|
2VM-23118-L0-00 |
— | ||
|
42
|
42
2HH-23158-L0-00 Gasket |
2HH-23158-L0-00 |
from US $4.68 |
||
|
43
|
43
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
44
|
44
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
44
|
44
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
44
|
44
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
45
|
45
2VM-2316A-L0-00
Valve, Comp
|
2VM-2316A-L0-00 |
— | ||
|
46
|
46
55Y-2312G-M0-00 Plug |
55Y-2312G-M0-00 |
from US $8.88 |
||
|
47
|
47
1LX-23167-L0-00
Holder, Axle
|
1LX-23167-L0-00 |
— | ||
| replacement | |||||
|
47
|
47
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
48
|
48
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
48
|
48
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
49
|
49
5Y3-23393-00-00 Nut, Special |
5Y3-23393-00-00 |
from US $7.08 |
||
|
50
|
50
90170-10372-00
Nut
|
90170-10372-00 |
— | ||
| replacement | |||||
|
50
|
50
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
51
|
51
2VM-23111-L0-00 Bolt, Cap |
2VM-23111-L0-00 |
from US $105.71 |
||
|
52
|
52
4V4-23188-L0-00 O-Ring |
4V4-23188-L0-00 |
from US $8.36 |
||
|
53
|
53
23X-23190-L0-00 Air Valve Comp |
23X-23190-L0-00 |
from US $49.74 |
||
|
54
|
54
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
55
|
55
2VN-23185-L0-00 Cover, Valve |
2VN-23185-L0-00 |
from US $7.23 |
||
|
56
|
56
2VM-23340-L0-00
Under Bracket Comp
|
2VM-23340-L0-00 |
— | ||
|
57
|
57
90105-08463-00
Bolt, Washer Based
|
90105-08463-00 |
— | ||
|
58
|
58
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
58
|
58
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
58
|
58
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
59
|
59
43M-23191-L0-00
Boot, Front Fork
Red |
43M-23191-L0-00 |
— | ||
|
60
|
60
43H-23192-L0-00
Band
|
43H-23192-L0-00 |
— | ||
|
61
|
61
43H-23489-L0-00
Band
|
43H-23489-L0-00 |
— | ||
|
62
|
62
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
62
|
62
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
