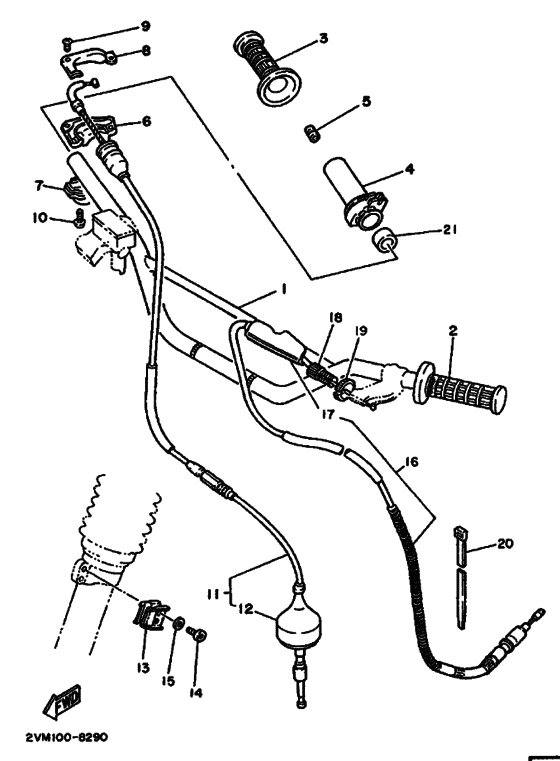

Steering handle & cable Diagram Yamaha YZ250 YZ250
- Year
- 1988
- Colour
- White (WW; 0036)
- Model code
- 2VM0
- Sales region
- Europe (030)
- Базовая модель
- YZ250 YZ250U
- Engine Capacity
- 250
- Color Variant
- A
- Model
- YZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2VN-26111-00-00 HandlebarNEBURA GOLD |
2VN-26111-00-00 |
US $108.70 |
||
| replacement | |||||
|
1
|
1
4GY-26111-10-00 HandlebarNEBURA GOLD |
4GY-26111-10-00 |
US $100.10 |
||
|
2
|
2
1LX-26241-01-00 Grip (Left) |
1LX-26241-01-00 |
from US $15.82 |
||
|
3
|
3
1LX-26242-01-00 Grip (Right) |
1LX-26242-01-00 |
from US $15.82 |
||
|
4
|
4
23X-26243-00-00 Tube, Throttle Guide |
23X-26243-00-00 |
from US $16.13 |
||
| replacement | |||||
|
4
|
4
23X-26243-01-00 Tube, Throttle Guide |
23X-26243-01-00 |
from US $16.81 |
||
|
5
|
5
688-82535-00-00 Plug |
688-82535-00-00 |
from US $2.41 |
||
| replacement | |||||
|
5
|
5
90338-12192-00 Plug(2Gu) |
90338-12192-00 |
from US $2.02 |
||
|
6
|
6
23X-26281-00-00 Cap, Grip Upper |
23X-26281-00-00 |
from US $29.74 |
||
| replacement | |||||
|
6
|
6
23X-26281-01-00 Cap, Grip Upper |
23X-26281-01-00 |
from US $30.06 |
||
|
7
|
7
431-26282-01-98 Cap, Grip LowerLOW GLOSS BLACK |
431-26282-01-98 |
from US $41.67 |
||
| replacements | |||||
|
7
|
7
431-26282-02-00 Cap, Grip UnderLOW GLOSS BLACK |
431-26282-02-00 |
from US $41.40 |
||
|
7
|
7
431-26282-03-00 Cap, Grip UnderLOW GLOSS BLACK |
431-26282-03-00 |
from US $41.83 |
||
|
8
|
8
5X2-2628H-01-00 Cap, Wire |
5X2-2628H-01-00 |
from US $9.57 |
||
|
9
|
9
987-06040-12-00
Screw, Flat Head
|
987-06040-12-00 |
— | ||
| replacement | |||||
|
9
|
9
98707-04012-00 Screw, Flat Head |
98707-04012-00 |
from US $1.52 |
||
|
10
|
10
985-06050-16-00
Screw, Pan Head
|
985-06050-16-00 |
— | ||
| replacements | |||||
|
10
|
10
98507-05016-00 Screw, Pan Head |
98507-05016-00 |
from US $1.18 |
||
|
10
|
10
90157-05M19-00 Screw, Pan Head |
90157-05M19-00 |
from US $1.42 |
||
|
11
|
11
23X-26311-01-00 Cable, Throttle 1 |
23X-26311-01-00 |
from US $35.41 |
||
|
12
|
12
510-26329-00-00 Cap, Rubber |
510-26329-00-00 |
from US $25.36 |
||
| replacement | |||||
|
12
|
12
510-26329-01-00 |
510-26329-01-00 |
from US $10.78 |
||
|
13
|
13
90465-16258-00 Clamp |
90465-16258-00 |
from US $8.36 |
||
|
14
|
14
91311-06016-00 Bolt, Hexagon Socket Head |
91311-06016-00 |
from US $1.52 |
||
| replacement | |||||
|
14
|
14
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
15
|
15
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
15
|
15
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
15
|
15
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
15
|
15
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
16
|
16
2VM-26335-00-00
Cable, clutch
|
2VM-26335-00-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
382-26372-01-00
Cover, Handle Lever 1
|
382-26372-01-00 |
— | ||
| replacement | |||||
|
17
|
17
498-26372-00-00 Cover, Lever |
498-26372-00-00 |
from US $6.38 |
||
|
18
|
18
90123-08090-00 Bolt |
90123-08090-00 |
from US $12.75 |
||
|
19
|
19
90179-08401-00
Nut
|
90179-08401-00 |
— | ||
| replacements | |||||
|
19
|
19
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
19
|
19
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
20
|
20
90465-13154-00 Clamp |
90465-13154-00 |
from US $2.83 |
||
| replacement | |||||
|
20
|
20
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
21
|
21
90560-22281-00 Spacer |
90560-22281-00 |
from US $8.64 |
||
