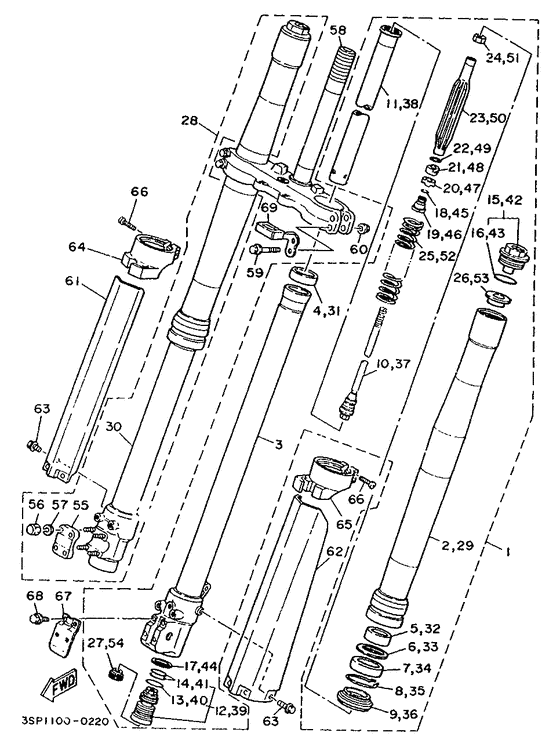

Front fork Diagram Yamaha YZ250 YZ250
- Year
- 1990
- Colour
- White (WW; 0036)
- Model code
- 3RB2
- Sales region
- North America (999)
- Базовая модель
- YZ250WR
- Engine Capacity
- 250
- Model
- YZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
3RB-23102-L0-00 Front Fork Assembly Lh |
3RB-23102-L0-00 |
US $874.55 |
||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
3RB-23136-L0-00
Tube, Outer 2
|
3RB-23136-L0-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
3SP-23120-L0-00
Inner Tube Comp. 2
|
3SP-23120-L0-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
3JD-23171-L0-00 Metal, Slide |
3JD-23171-L0-00 |
from US $20.98 |
||
| replacement | |||||
|
04
|
04
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.48 |
||
|
05
|
05
3JD-23125-L0-00 Metal, Slide 1 |
3JD-23125-L0-00 |
from US $21.11 |
||
| replacement | |||||
|
05
|
05
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
06
|
06
36Y-23146-L0-00
Washer, Oil Seal
|
36Y-23146-L0-00 |
— | ||
|
07
|
07
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $10.10 |
||
|
08
|
08
26H-23156-L0-00
Clip, Oil Seal
|
26H-23156-L0-00 |
— | ||
|
09
|
09
3SP-23144-L0-00 Seal, Dust |
3SP-23144-L0-00 |
from US $24.30 |
||
| replacement | |||||
|
09
|
09
3SP-23144-L1-00 Seal, Dust |
3SP-23144-L1-00 |
from US $27.63 |
||
|
10
|
10
3SP-2314A-L0-00
Piston Rod Assembly
|
3SP-2314A-L0-00 |
— | ||
|
11
|
11
3SP-23170-L0-00
Cylinder Comp., Front Fork
|
3SP-23170-L0-00 |
— | ||
|
12
|
12
3SP-2316A-L0-00
Valve Comp
|
3SP-2316A-L0-00 |
— | ||
|
13
|
13
3SP-23147-L0-00 O-Ring |
3SP-23147-L0-00 |
from US $2.20 |
||
|
14
|
14
3JD-23147-M0-00 O-Ring |
3JD-23147-M0-00 |
US $8.22 |
||
|
15
|
15
3SP-23111-L0-00
Bolt, Cap
|
3SP-23111-L0-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
3SP-23147-M0-00 O-Ring |
3SP-23147-M0-00 |
from US $3.97 |
||
|
17
|
17
3JD-23158-L0-00 Gasket |
3JD-23158-L0-00 |
from US $5.95 |
||
|
18
|
18
3SP-23153-L0-00 Ring, Snap |
3SP-23153-L0-00 |
US $1.08 |
||
|
19
|
19
3SP-23113-L0-00 Collar |
3SP-23113-L0-00 |
US $38.41 |
||
|
20
|
20
3SP-23166-L0-00
Spacer, Oil Lock
|
3SP-23166-L0-00 |
— | ||
|
21
|
21
3SP-23393-L0-00
Nut, Special
|
3SP-23393-L0-00 |
— | ||
|
22
|
22
3JD-23147-L0-00
O-Ring
|
3JD-23147-L0-00 |
— | ||
|
23
|
23
3SP-23142-L0-00
Seat, Spring Upper
|
3SP-23142-L0-00 |
— | ||
|
24
|
24
3SP-23357-L0-00 Nut |
3SP-23357-L0-00 |
from US $3.40 |
||
|
25
|
25
3SP-23141-L0-00
Spring, Front Fork (K=0.390)
|
3SP-23141-L0-00 |
— | ||
|
26
|
26
3SP-23143-L0-00
Seat, Spring Lower
|
3SP-23143-L0-00 |
— | ||
|
27
|
27
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
28
|
28
3RB-23103-L0-00 Front Fork Assembly Rh |
3RB-23103-L0-00 |
US $874.55 |
||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
3RB-23136-L0-00
Tube, Outer 2
|
3RB-23136-L0-00 |
— | ||
| replacement | |||||
|
29
|
29
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
30
|
30
3SP-23110-L0-00
Inner Tube Comp. 1
|
3SP-23110-L0-00 |
— | ||
|
31
|
31
3JD-23171-L0-00 Metal, Slide |
3JD-23171-L0-00 |
from US $20.98 |
||
| replacement | |||||
|
31
|
31
4FM-23171-40-00 Metal, Slide |
4FM-23171-40-00 |
from US $13.48 |
||
|
32
|
32
3JD-23125-L0-00 Metal, Slide 1 |
3JD-23125-L0-00 |
from US $21.11 |
||
| replacement | |||||
|
32
|
32
4FM-23125-40-00 Metal, Slide 1 |
4FM-23125-40-00 |
from US $23.31 |
||
|
33
|
33
36Y-23146-10-00 Washer, Oil Seal |
36Y-23146-10-00 |
from US $8.05 |
||
|
34
|
34
3SP-23145-L0-00 Oil Seal |
3SP-23145-L0-00 |
from US $10.10 |
||
|
35
|
35
26H-23156-00-00 Ring, Snap |
26H-23156-00-00 |
from US $4.58 |
||
|
36
|
36
3SP-23144-L0-00 Seal, Dust |
3SP-23144-L0-00 |
from US $24.30 |
||
| replacement | |||||
|
36
|
36
3SP-23144-L1-00 Seal, Dust |
3SP-23144-L1-00 |
from US $27.63 |
||
|
37
|
37
3SP-2314A-L0-00
Piston Rod Assembly
|
3SP-2314A-L0-00 |
— | ||
|
38
|
38
3SP-23170-L0-00
Cylinder Comp., Front Fork
|
3SP-23170-L0-00 |
— | ||
|
39
|
39
3SP-2316A-L0-00
Valve Comp
|
3SP-2316A-L0-00 |
— | ||
|
40
|
40
3SP-23147-L0-00 O-Ring |
3SP-23147-L0-00 |
from US $2.20 |
||
|
41
|
41
3JD-23147-M0-00 O-Ring |
3JD-23147-M0-00 |
US $8.22 |
||
|
42
|
42
3SP-23111-L0-00
Bolt, Cap
|
3SP-23111-L0-00 |
— | ||
| replacement | |||||
|
42
|
42
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
43
|
43
3SP-23147-M0-00 O-Ring |
3SP-23147-M0-00 |
from US $3.97 |
||
|
44
|
44
3JD-23158-L0-00 Gasket |
3JD-23158-L0-00 |
from US $5.95 |
||
|
45
|
45
3SP-23153-L0-00 Ring, Snap |
3SP-23153-L0-00 |
US $1.08 |
||
|
46
|
46
3SP-23113-L0-00 Collar |
3SP-23113-L0-00 |
US $38.41 |
||
|
47
|
47
3SP-23166-L0-00
Spacer, Oil Lock
|
3SP-23166-L0-00 |
— | ||
|
48
|
48
3SP-23393-L0-00
Nut, Special
|
3SP-23393-L0-00 |
— | ||
|
49
|
49
3JD-23147-L0-00
O-Ring
|
3JD-23147-L0-00 |
— | ||
|
50
|
50
3SP-23142-L0-00
Seat, Spring Upper
|
3SP-23142-L0-00 |
— | ||
|
51
|
51
3SP-23357-L0-00 Nut |
3SP-23357-L0-00 |
from US $3.40 |
||
|
52
|
52
3SP-23141-L0-00
Spring, Front Fork (K=0.390)
|
3SP-23141-L0-00 |
— | ||
|
53
|
53
3SP-23143-L0-00
Seat, Spring Lower
|
3SP-23143-L0-00 |
— | ||
|
54
|
54
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
55
|
55
4V2-23167-L0-00
Holder, Axle
|
4V2-23167-L0-00 |
— | ||
| replacement | |||||
|
55
|
55
3XJ-23167-L0-00 Holder, Axle |
3XJ-23167-L0-00 |
from US $27.72 |
||
|
56
|
56
5Y3-23393-00-00 Nut, Special |
5Y3-23393-00-00 |
from US $7.08 |
||
|
57
|
57
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
57
|
57
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
58
|
58
3JD-23340-L0-00
Under Bracket Comp
|
3JD-23340-L0-00 |
— | ||
|
59
|
59
95021-08060-00 Bolt, Flange (Small Head) |
95021-08060-00 |
from US $4.25 |
||
| replacement | |||||
|
59
|
59
950-24080-60-00 Bolt, Flange (Small Head) |
950-24080-60-00 |
from US $4.25 |
||
|
60
|
60
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
60
|
60
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
60
|
60
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
61
|
61
3SP-2314J-L0-00
Protecter Comp., 2
|
3SP-2314J-L0-00 |
— | ||
| replacement | |||||
|
61
|
61
3XJ-2314J-L0-00
Protecter Comp., 2
|
3XJ-2314J-L0-00 |
— | ||
|
62
|
62
3SP-2314H-L0-00
Protecter Comp., 1
|
3SP-2314H-L0-00 |
— | ||
| replacement | |||||
|
62
|
62
3XJ-2314H-L0-00
Protecter Comp., 1
|
3XJ-2314H-L0-00 |
— | ||
|
63
|
63
3SP-23356-L0-00 Bolt 2 |
3SP-23356-L0-00 |
from US $2.91 |
||
|
64
|
64
3SP-2314G-L0-00 Protecter Guide Comp., 2 |
3SP-2314G-L0-00 |
from US $30.46 |
||
|
65
|
65
3SP-2314F-L0-00 Protecter Guide Comp., 1 |
3SP-2314F-L0-00 |
from US $38.68 |
||
|
66
|
66
4V4-23194-L0-00 Screw, Pan Head |
4V4-23194-L0-00 |
US $1.21 |
||
| replacement | |||||
|
66
|
66
98517-04025-00 Screw, Pan Head |
98517-04025-00 |
from US $1.21 |
||
|
67
|
67
3SP-2314E-L0-00
Cover, Hose
|
3SP-2314E-L0-00 |
— | ||
|
68
|
68
3SP-23346-L0-00 Bolt, Flange |
3SP-23346-L0-00 |
from US $2.83 |
||
| replacement | |||||
|
68
|
68
95024-06008-00 Bolt, Flange |
95024-06008-00 |
from US $2.83 |
||
|
69
|
69
3JD-23389-01-00
Guide, Cable
|
3JD-23389-01-00 |
— | ||
