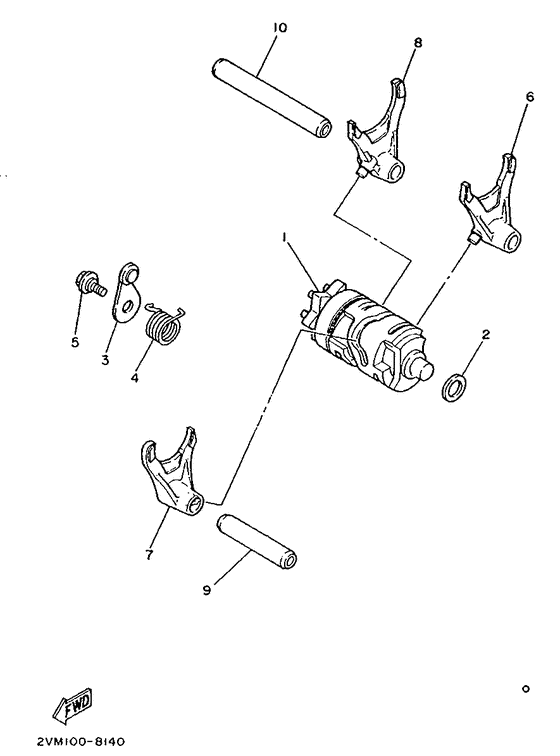

Shift Cam & Fork Diagram Yamaha YZ250 YZ250
- Year
- 1990
- Colour
- White (WW; 0036)
- Model code
- 3RB2
- Sales region
- North America (999)
- Базовая модель
- YZ250WR
- Engine Capacity
- 250
- Model
- YZ250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2VM-18540-00-00
Shift Cam Assembly
|
2VM-18540-00-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
90201-12166-00 Washer, Plate |
90201-12166-00 |
from US $1.70 |
||
|
03
|
03
22W-18140-00-00 Stopper Lever Assembly |
22W-18140-00-00 |
US $12.48 |
||
|
04
|
04
90508-26561-00 Spring, Torsion |
90508-26561-00 |
from US $4.82 |
||
|
05
|
05
90109-063F7-00 Bolt |
90109-063F7-00 |
from US $2.45 |
||
| replacement | |||||
|
05
|
05
90109-06190-00 Bolt |
90109-06190-00 |
from US $2.45 |
||
|
06
|
06
2VM-18511-00-00
Fork, Shift 1
|
2VM-18511-00-00 |
— | ||
|
07
|
07
2VM-18512-00-00
Fork, Shift 2
|
2VM-18512-00-00 |
— | ||
|
08
|
08
2VM-18513-00-00
Fork, Shift 3
|
2VM-18513-00-00 |
— | ||
|
09
|
09
1LX-18531-00-00
Bar, Shift Fork Guide 1
|
1LX-18531-00-00 |
— | ||
| replacement | |||||
|
09
|
09
4EX-18531-00-00
Bar, Shift Fork Guide 1
|
4EX-18531-00-00 |
— | ||
|
10
|
10
34K-18535-00-00
Bar, Shift Fork Guide 2
|
34K-18535-00-00 |
— | ||
| replacement | |||||
|
10
|
10
3XV-18535-00-00 Bar, Shift Fork Guide 2 |
3XV-18535-00-00 |
US $17.20 |
||
