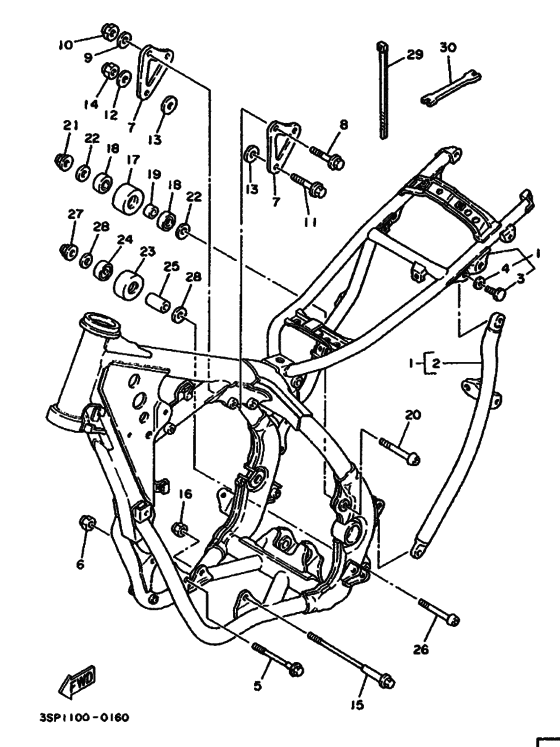

Frame Diagram Yamaha YZ250 YZ250
- Year
- 1990
- Colour
- White (WW; 0036)
- Model code
- 3SP2
- Sales region
- Europe (030)
- Базовая модель
- YZ250 YZ250A
- Engine Capacity
- 250
- Color Variant
- A
- Model
- YZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3SP-21110-00-UJ
Frame Comp
RADICAL WHITE |
3SP-21110-00-UJ |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
RADICAL WHITE |
999-99999-99-00 |
— | ||
|
2
|
2
3JD-21123-01-UJ
Back, Stay (L.h)
RADICAL WHITE |
3JD-21123-01-UJ |
— | ||
|
3
|
3
90101-08641-00
Bolt
|
90101-08641-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
90201-080E2-00 Washer, Plate |
90201-080E2-00 |
from US $1.42 |
||
|
5
|
5
90105-08592-00
Bolt, Flange
|
90105-08592-00 |
— | ||
|
6
|
6
95611-08200-00 Nut, Self-Locking |
95611-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
6
|
6
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
7
|
7
3SP-21425-00-00
Bracket, Rear Upper 1
|
3SP-21425-00-00 |
— | ||
|
8
|
8
91011-08055-00 Bolt, Flange |
91011-08055-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
95817-08055-00 Bolt, Flange |
95817-08055-00 |
from US $1.33 |
||
|
9
|
9
90202-08022-00 Washer, Plate |
90202-08022-00 |
from US $3.26 |
||
|
10
|
10
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
11
|
11
91011-10055-00 Bolt, Flange |
91011-10055-00 |
from US $2.83 |
||
| replacement | |||||
|
11
|
11
95817-10055-00 Bolt, Flange |
95817-10055-00 |
from US $2.91 |
||
|
12
|
12
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
13
|
13
90201-101J1-00 Washer, Plate |
90201-101J1-00 |
from US $1.66 |
||
|
14
|
14
95601-10200-00 Nut, Self-Locking |
95601-10200-00 |
from US $6.43 |
||
| replacement | |||||
|
14
|
14
90185-10170-00 Nut, Self-Locking |
90185-10170-00 |
from US $6.94 |
||
|
15
|
15
91011-10120-00 Bolt, Flange |
91011-10120-00 |
from US $4.11 |
||
| replacement | |||||
|
15
|
15
90105-10733-00 Bolt, Flange |
90105-10733-00 |
from US $3.04 |
||
|
16
|
16
95611-10200-00 Nut, U Flange |
95611-10200-00 |
from US $2.75 |
||
| replacements | |||||
|
16
|
16
956-07102-00-00 Nut, U Flange |
956-07102-00-00 |
from US $5.69 |
||
|
16
|
16
956-17102-00-00
Nut, U Flange
|
956-17102-00-00 |
— | ||
|
17
|
17
3JD-22178-00-00 Tensioner |
3JD-22178-00-00 |
US $26.44 |
||
|
18
|
18
93300-60816-00 Bearing |
93300-60816-00 |
from US $17.99 |
||
| replacement | |||||
|
18
|
18
93300-60804-00 Bearing |
93300-60804-00 |
from US $14.72 |
||
|
19
|
19
90387-087K5-00 Collar |
90387-087K5-00 |
from US $1.81 |
||
|
20
|
20
92011-08070-00 Bolt,button |
92011-08070-00 |
from US $5.83 |
||
| replacement | |||||
|
20
|
20
920-17080-70-00 Bolt, Button |
920-17080-70-00 |
from US $7.08 |
||
|
21
|
21
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
21
|
21
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
22
|
22
90201-081A6-00 Washer, Plate |
90201-081A6-00 |
from US $1.70 |
||
| replacement | |||||
|
22
|
22
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.81 |
||
|
23
|
23
3JD-22178-10-00 Tensioner |
3JD-22178-10-00 |
from US $22.33 |
||
| replacement | |||||
|
23
|
23
3JD-22178-20-00 Tensioner |
3JD-22178-20-00 |
from US $22.33 |
||
|
24
|
24
93300-60816-00 Bearing |
93300-60816-00 |
from US $17.99 |
||
| replacement | |||||
|
24
|
24
93300-60804-00 Bearing |
93300-60804-00 |
from US $14.72 |
||
|
25
|
25
90387-086N4-00 Collar |
90387-086N4-00 |
from US $1.66 |
||
|
26
|
26
92011-08070-00 Bolt,button |
92011-08070-00 |
from US $5.83 |
||
| replacement | |||||
|
26
|
26
920-17080-70-00 Bolt, Button |
920-17080-70-00 |
from US $7.08 |
||
|
27
|
27
95601-08200-00 Nut, U |
95601-08200-00 |
from US $2.13 |
||
| replacement | |||||
|
27
|
27
901-85081-69-00 Nut, Self-Locking |
901-85081-69-00 |
from US $2.35 |
||
|
28
|
28
90201-081A6-00 Washer, Plate |
90201-081A6-00 |
from US $1.70 |
||
| replacement | |||||
|
28
|
28
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.81 |
||
|
29
|
29
12R-82591-00-00
Band
|
12R-82591-00-00 |
— | ||
| replacement | |||||
|
29
|
29
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
|
30
|
30
56A-28166-00-00
Wrench, Hexagon
|
56A-28166-00-00 |
— | ||
