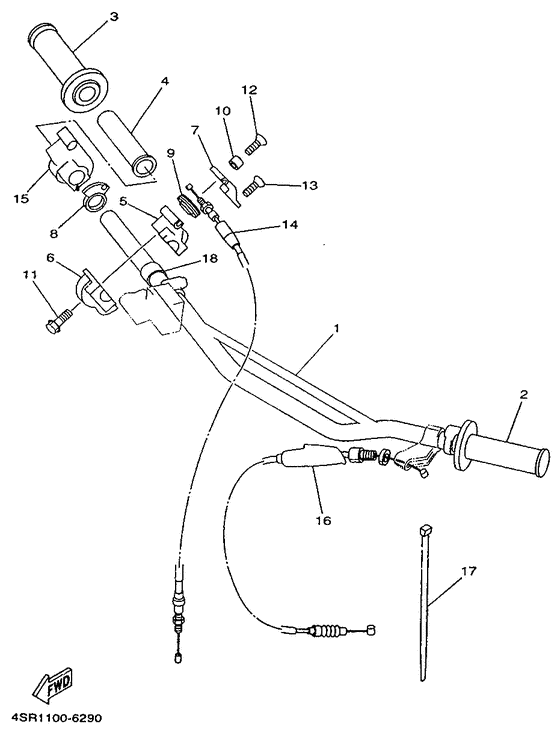

Steering handle & cable Diagram Yamaha YZ250 YZ250
- Year
- 1996
- Colour
- Purplish White Solid 1 (PW S1; 0206)
- Model code
- 4SR4
- Sales region
- Oceania (999)
- Базовая модель
- YZ250H
- Engine Capacity
- 250
- Model
- YZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4JX-26111-00-00
Handlebar
|
4JX-26111-00-00 |
— | ||
|
02
|
02
4SS-26241-00-00 Grip (Left) |
4SS-26241-00-00 |
US $24.97 |
||
|
03
|
03
4SS-26242-00-00 Grip Rh |
4SS-26242-00-00 |
US $45.20 |
||
| replacement | |||||
|
03
|
03
4SS-26240-01-00 Grip Assy |
4SS-26240-01-00 |
US $45.20 |
||
|
04
|
04
4SS-26243-00-00 Tube, Throttle Guide |
4SS-26243-00-00 |
from US $23.20 |
||
|
05
|
05
4SS-26281-00-00 Cap, Grip Upper |
4SS-26281-00-00 |
from US $35.14 |
||
| replacement | |||||
|
05
|
05
1C3-26281-90-00 Cap, Grip Upper |
1C3-26281-90-00 |
from US $35.14 |
||
|
06
|
06
4SS-26282-01-00 Cap, Grip Under |
4SS-26282-01-00 |
from US $23.90 |
||
|
07
|
07
4SS-2628H-00-00 Cap, Wire |
4SS-2628H-00-00 |
from US $6.52 |
||
| replacement | |||||
|
07
|
07
1C3-2628H-90-00 Cap, Wire |
1C3-2628H-90-00 |
from US $6.52 |
||
|
08
|
08
4SS-2627A-00-00 Rotor 2 |
4SS-2627A-00-00 |
from US $20.92 |
||
|
09
|
09
4SS-26273-00-00 Rotor |
4SS-26273-00-00 |
from US $6.80 |
||
| replacement | |||||
|
09
|
09
1C3-26273-90-00 Rotor |
1C3-26273-90-00 |
from US $6.80 |
||
|
10
|
10
4SS-26259-00-00 Collar |
4SS-26259-00-00 |
from US $4.68 |
||
| replacement | |||||
|
10
|
10
90387-04003-00 Collar |
90387-04003-00 |
from US $4.53 |
||
|
11
|
11
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
11
|
11
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
12
|
12
98707-04018-00 Screw, Flat Head |
98707-04018-00 |
from US $2.13 |
||
|
13
|
13
98707-04010-00 Screw, Flat Head |
98707-04010-00 |
from US $1.70 |
||
|
14
|
14
4SS-26311-01-00 Cable,throttle 1 |
4SS-26311-01-00 |
from US $41.86 |
||
| replacement | |||||
|
14
|
14
4SS-26311-02-00 Cable, Throttle 1 |
4SS-26311-02-00 |
from US $41.86 |
||
|
15
|
15
4SS-26287-01-00 Cover, Cap Grip |
4SS-26287-01-00 |
from US $14.03 |
||
|
16
|
16
4EW-26335-00-00 Cable, clutch |
4EW-26335-00-00 |
from US $37.44 |
||
|
17
|
17
904-64141-17-00
Clamp
|
904-64141-17-00 |
— | ||
| replacement | |||||
|
17
|
17
904-64151-52-00 Clamp |
904-64151-52-00 |
from US $3.05 |
||
|
18
|
18
90387-227H7-00 Collar |
90387-227H7-00 |
from US $1.70 |
||
