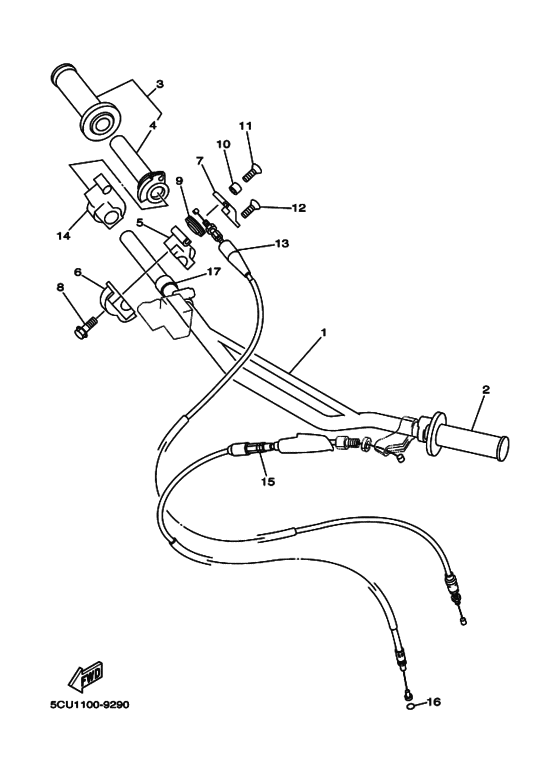

Steering handle & cable Diagram Yamaha YZ250 YZ250
- Year
- 1999
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5CU1
- Sales region
- Europe (020)
- Базовая модель
- YZ250 YZ250L
- Engine Capacity
- 250
- Color Variant
- A
- Model
- YZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4XM-26111-00-00
Handlebar
|
4XM-26111-00-00 |
— | ||
|
2
|
2
4GY-26241-00-00 Grip |
4GY-26241-00-00 |
from US $14.84 |
||
|
3
|
3
4XM-26240-00-00 Grip Assy |
4XM-26240-00-00 |
from US $28.76 |
||
|
4
|
4
4XM-26243-00-00 Tube, Throttle Guide |
4XM-26243-00-00 |
from US $16.01 |
||
|
5
|
5
4SS-26281-00-00 Cap, Grip Upper |
4SS-26281-00-00 |
from US $35.14 |
||
| replacement | |||||
|
5
|
5
1C3-26281-90-00 Cap, Grip Upper |
1C3-26281-90-00 |
from US $40.90 |
||
|
6
|
6
4SS-26282-10-00 Cap, Grip Under |
4SS-26282-10-00 |
from US $20.26 |
||
| replacement | |||||
|
6
|
6
1C3-26282-90-00 Cap, Grip Under |
1C3-26282-90-00 |
from US $24.28 |
||
|
7
|
7
4SS-2628H-00-00 Cap, Wire |
4SS-2628H-00-00 |
from US $6.52 |
||
| replacement | |||||
|
7
|
7
1C3-2628H-90-00 Cap, Wire |
1C3-2628H-90-00 |
from US $7.90 |
||
|
8
|
8
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
8
|
8
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
9
|
9
4SS-26273-00-00 Rotor |
4SS-26273-00-00 |
from US $6.80 |
||
| replacement | |||||
|
9
|
9
1C3-26273-90-00 Rotor |
1C3-26273-90-00 |
from US $8.19 |
||
|
10
|
10
4SS-26259-00-00 Collar |
4SS-26259-00-00 |
from US $4.68 |
||
| replacement | |||||
|
10
|
10
90387-04003-00 Collar |
90387-04003-00 |
from US $5.55 |
||
|
11
|
11
4SS-26256-00-00 Screw, Flat Head |
4SS-26256-00-00 |
from US $1.42 |
||
| replacement | |||||
|
11
|
11
98707-04016-00 Screw, Flat Head |
98707-04016-00 |
from US $1.42 |
||
|
12
|
12
4SS-2632G-00-00 Screw, Flat Head |
4SS-2632G-00-00 |
from US $1.70 |
||
| replacement | |||||
|
12
|
12
98707-04010-00 Screw, Flat Head |
98707-04010-00 |
from US $1.70 |
||
|
13
|
13
5CU-26311-00-00 Cable, Throttle 1 |
5CU-26311-00-00 |
US $33.77 |
||
|
14
|
14
4SS-26287-01-00 Cover, Cap Grip |
4SS-26287-01-00 |
from US $16.92 |
||
|
15
|
15
5CU-26335-00-00 Cable, clutch |
5CU-26335-00-00 |
from US $42.86 |
||
|
16
|
16
93210-06001-00 O-Ring |
93210-06001-00 |
from US $1.84 |
||
| replacement | |||||
|
16
|
16
93210-06632-00 O-Ring |
93210-06632-00 |
from US $1.94 |
||
|
17
|
17
90387-227H7-00 Collar |
90387-227H7-00 |
from US $1.70 |
||
