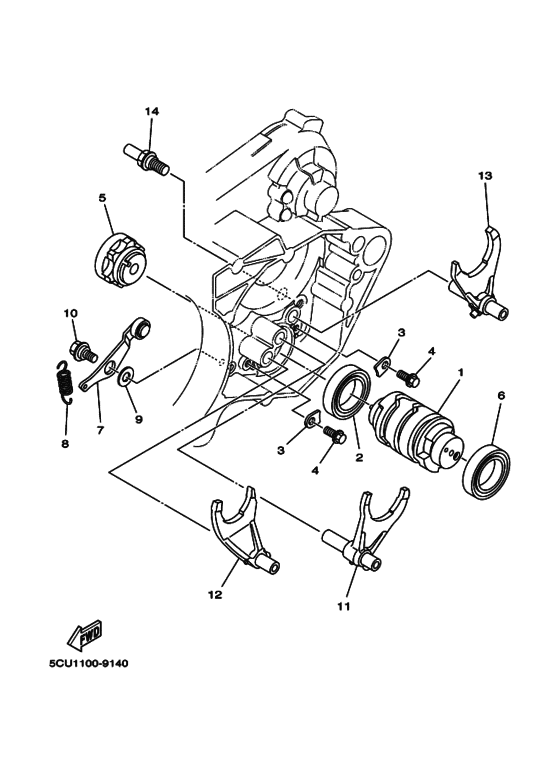

Shift Cam & Fork Diagram Yamaha YZ250 YZ250
- Year
- 1999
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5CU2
- Sales region
- Europe (040)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- YZ250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5CU-18541-00-00
Cam, Shift
|
5CU-18541-00-00 |
— | ||
|
2
|
2
93306-90504-00 Bearing |
93306-90504-00 |
from US $30.32 |
||
| replacement | |||||
|
2
|
2
93306-90506-00 Bearing |
93306-90506-00 |
from US $30.32 |
||
|
3
|
3
5DH-18562-00-00 Plate, Stopper 2 |
5DH-18562-00-00 |
from US $1.70 |
||
|
4
|
4
901-05065-53-00
Bolt, Flange
|
901-05065-53-00 |
— | ||
| replacement | |||||
|
4
|
4
950-27060-12-00 Bolt, Flange |
950-27060-12-00 |
from US $1.28 |
||
|
5
|
5
4EW-18185-00-00 Segment |
4EW-18185-00-00 |
from US $59.13 |
||
|
6
|
6
93306-90501-00 Bearing |
93306-90501-00 |
from US $20.40 |
||
|
7
|
7
5CU-18140-00-00 Stopper Lever Assy |
5CU-18140-00-00 |
from US $23.24 |
||
| replacement | |||||
|
7
|
7
5CU-18140-01-00 Stopper Lever Assy |
5CU-18140-01-00 |
from US $23.24 |
||
|
8
|
8
90507-14064-00 Spring, Tension |
90507-14064-00 |
from US $1.84 |
||
|
9
|
9
90201-06589-00 Washer, Plate |
90201-06589-00 |
from US $1.63 |
||
| replacement | |||||
|
9
|
9
90201-06104-00 Washer, Plate |
90201-06104-00 |
from US $1.63 |
||
|
10
|
10
90109-063F8-00 Bolt |
90109-063F8-00 |
from US $2.27 |
||
| replacement | |||||
|
10
|
10
90109-06036-00 Bolt |
90109-06036-00 |
from US $2.27 |
||
|
11
|
11
5BE-18501-00-00 Fork, Shift 1 |
5BE-18501-00-00 |
from US $73.64 |
||
| replacement | |||||
|
11
|
11
5BE-18501-20-00 Fork, Shift 1 |
5BE-18501-20-00 |
from US $73.64 |
||
|
12
|
12
5BE-18502-00-00 Fork, Shift 2 |
5BE-18502-00-00 |
from US $72.95 |
||
| replacement | |||||
|
12
|
12
5BE-18502-20-00 Fork, Shift 2 |
5BE-18502-20-00 |
from US $80.12 |
||
|
13
|
13
5CU-18503-00-00 Fork, Shift 3 |
5CU-18503-00-00 |
from US $58.99 |
||
| replacement | |||||
|
13
|
13
5CU-18503-20-00 Fork, Shift 3 |
5CU-18503-20-00 |
from US $52.86 |
||
|
14
|
14
4BR-18127-00-00 Bolt |
4BR-18127-00-00 |
from US $5.53 |
||
| replacement | |||||
|
14
|
14
901-09082-27-00 Bolt |
901-09082-27-00 |
from US $4.11 |
||
