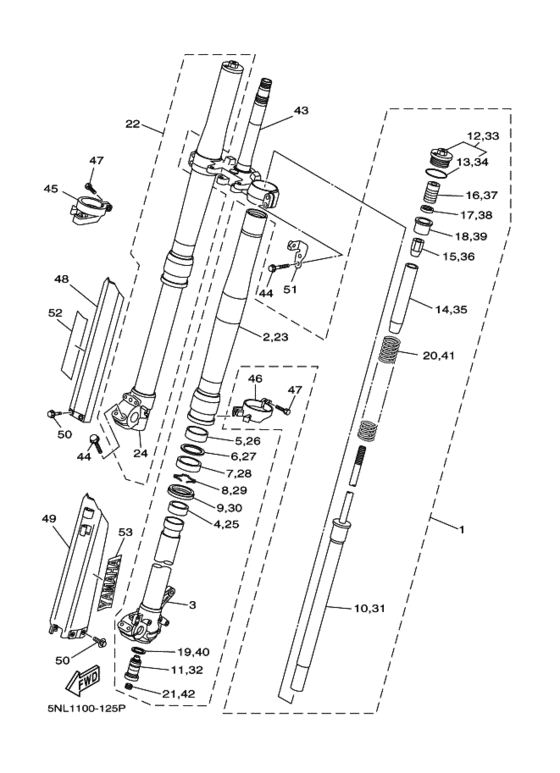

Front fork Diagram Yamaha YZ250 YZ250F
- Year
- 2001
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5NL3
- Sales region
- Japan (010)
- Базовая модель
- YZ250F
- Engine Capacity
- 250
- Color Variant
- A
- Model
- YZ250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5NL-23102-00-00
Front Fork Assy (L.h)
ＦＲＯＮＴ ＦＯＲＫ ＡＳＳＹ ; Ｌ．Ｈ |
5NL-23102-00-00 |
— | ||
|
2
|
2
5HD-23136-L0-00 Tube, Outer 2．ＴＵＢＥ， ＯＵＴＥＲ ; ＲＩＧＨＴ |
5HD-23136-L0-00 |
US $926.26 |
||
|
3
|
3
5DH-23120-L0-00 Inner Tube Comp. 2．ＩＮＮＥＲ ＴＵＢＥ ＣＯＭＰ．２; |
5DH-23120-L0-00 |
from US $339.29 |
||
|
4
|
4
5ET-23171-L0-00 Piston, Front Fork．ＰＩＳＴＯＮ， ＦＲＯＮＴ ＦＯＲＫ; |
5ET-23171-L0-00 |
from US $18.28 |
||
|
5
|
5
5ET-23125-L0-00 Metal, Slide 1．ＭＥＴＡＬ， ＳＬＩＤＥ １; |
5ET-23125-L0-00 |
from US $13.88 |
||
|
6
|
6
4SS-23146-L0-00 Washer, Oil Seal．ＷＡＳＨＥＲ， ＯＩＬ ＳＥＡＬ; |
4SS-23146-L0-00 |
from US $10.19 |
||
|
7
|
7
5ET-23145-L0-00
Oil Seal
．ＯＩＬ ＳＥＡＬ; |
5ET-23145-L0-00 |
— | ||
| replacement | |||||
|
7
|
7
5UN-23145-L0-00 Oil Seal．ＯＩＬ ＳＥＡＬ; |
5UN-23145-L0-00 |
from US $22.20 |
||
|
8
|
8
4SS-23153-L0-00 Ring, Snap．ＲＩＮＧ， ＳＮＡＰ; |
4SS-23153-L0-00 |
from US $2.91 |
||
|
9
|
9
5HD-23144-L0-00 Seal, Dust．ＳＥＡＬ， ＤＵＳＴ; |
5HD-23144-L0-00 |
from US $20.25 |
||
|
10
|
10
5MV-23170-L0-00 Cylinder Comp., Front Fork．ＣＹＬＩＮＤＥＲ ＣＯＭＰ．， ＦＲＯＮＴ ＦＯＲＫ; |
5MV-23170-L0-00 |
US $677.61 |
||
|
11
|
11
5NL-2316A-00-00 Valve Comp．ＶＡＬＶＥ ＣＯＭＰ．; |
5NL-2316A-00-00 |
US $315.85 |
||
|
12
|
12
5MV-23111-L0-00 Bolt, Cap．ＢＯＬＴ， ＣＡＰ; |
5MV-23111-L0-00 |
US $323.06 |
||
|
13
|
13
93210-42263-00 O-Ring．．Ｏ−ＲＩＮＧ; |
93210-42263-00 |
from US $10.48 |
||
|
14
|
14
5DH-23142-L0-00 Seat, Spring Upper．ＳＥＡＴ， ＳＰＲＩＮＧ ＵＰＰＥＲ; |
5DH-23142-L0-00 |
from US $26.07 |
||
|
15
|
15
5HD-23393-L0-00 Nut, Special．ＮＵＴ， ＳＰＥＣＩＡＬ; |
5HD-23393-L0-00 |
from US $18.40 |
||
|
16
|
16
5MV-23195-L0-00 Rubber．ＲＵＢＢＥＲ; |
5MV-23195-L0-00 |
from US $16.86 |
||
|
17
|
17
5DH-23149-L0-00 Washer, Spring Upper．ＷＡＳＨＥＲ， ＳＰＲＩＮＧ ＵＰＰＥＲ; |
5DH-23149-L0-00 |
from US $12.04 |
||
|
18
|
18
5DH-23118-L0-00 Spacer．ＳＰＡＣＥＲ; |
5DH-23118-L0-00 |
US $29.63 |
||
|
19
|
19
4SS-23158-L0-00 Gasket．ＧＡＳＫＥＴ; |
4SS-23158-L0-00 |
from US $5.10 |
||
|
20
|
20
5NL-23141-00-00 Spring, Front Fork (K=4.3N/．ＳＰＲＩＮＧ， ＦＲＯＮＴ ＦＯＲＫ; |
5NL-23141-00-00 |
US $78.88 |
||
|
21
|
21
3JD-2312G-L0-00 Plug．ＰＬＵＧ; |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
22
|
22
5NL-23103-00-00
Front Fork Assy (R.h)
ＦＲＯＮＴ ＦＯＲＫ ＡＳＳＹ ; Ｒ．Ｈ |
5NL-23103-00-00 |
— | ||
|
23
|
23
5HD-23136-L0-00 Tube, Outer 2．ＴＵＢＥ， ＯＵＴＥＲ ; ＲＩＧＨＴ |
5HD-23136-L0-00 |
US $926.26 |
||
|
24
|
24
5BF-23110-L0-00 Inner Tube Comp. 1．ＩＮＮＥＲ ＴＵＢＥ ＣＯＭＰ．１; |
5BF-23110-L0-00 |
from US $296.89 |
||
|
25
|
25
5ET-23171-L0-00 Piston, Front Fork．ＰＩＳＴＯＮ， ＦＲＯＮＴ ＦＯＲＫ; |
5ET-23171-L0-00 |
from US $18.28 |
||
|
26
|
26
5ET-23125-L0-00 Metal, Slide 1．ＭＥＴＡＬ， ＳＬＩＤＥ １; |
5ET-23125-L0-00 |
from US $13.88 |
||
|
27
|
27
4SS-23146-L0-00 Washer, Oil Seal．ＷＡＳＨＥＲ， ＯＩＬ ＳＥＡＬ; |
4SS-23146-L0-00 |
from US $10.19 |
||
|
28
|
28
5ET-23145-L0-00
Oil Seal
．ＯＩＬ ＳＥＡＬ; |
5ET-23145-L0-00 |
— | ||
| replacement | |||||
|
28
|
28
5UN-23145-L0-00 Oil Seal．ＯＩＬ ＳＥＡＬ; |
5UN-23145-L0-00 |
from US $22.20 |
||
|
29
|
29
4SS-23153-L0-00 Ring, Snap．ＲＩＮＧ， ＳＮＡＰ; |
4SS-23153-L0-00 |
from US $2.91 |
||
|
30
|
30
5HD-23144-L0-00 Seal, Dust．ＳＥＡＬ， ＤＵＳＴ; |
5HD-23144-L0-00 |
from US $20.25 |
||
|
31
|
31
5MV-23170-L0-00 Cylinder Comp., Front Fork．ＣＹＬＩＮＤＥＲ ＣＯＭＰ．， ＦＲＯＮＴ ＦＯＲＫ; |
5MV-23170-L0-00 |
US $677.61 |
||
|
32
|
32
5NL-2316A-00-00 Valve Comp．ＶＡＬＶＥ ＣＯＭＰ．; |
5NL-2316A-00-00 |
US $315.85 |
||
|
33
|
33
5MV-23111-L0-00 Bolt, Cap．ＢＯＬＴ， ＣＡＰ; |
5MV-23111-L0-00 |
US $323.06 |
||
|
34
|
34
93210-42263-00 O-Ring．．Ｏ−ＲＩＮＧ; |
93210-42263-00 |
from US $10.48 |
||
|
35
|
35
5DH-23142-L0-00 Seat, Spring Upper．ＳＥＡＴ， ＳＰＲＩＮＧ ＵＰＰＥＲ; |
5DH-23142-L0-00 |
from US $26.07 |
||
|
36
|
36
5HD-23393-L0-00 Nut, Special．ＮＵＴ， ＳＰＥＣＩＡＬ; |
5HD-23393-L0-00 |
from US $18.40 |
||
|
37
|
37
5MV-23195-L0-00 Rubber．ＲＵＢＢＥＲ; |
5MV-23195-L0-00 |
from US $16.86 |
||
|
38
|
38
5DH-23149-L0-00 Washer, Spring Upper．ＷＡＳＨＥＲ， ＳＰＲＩＮＧ ＵＰＰＥＲ; |
5DH-23149-L0-00 |
from US $12.04 |
||
|
39
|
39
5DH-23118-L0-00 Spacer．ＳＰＡＣＥＲ; |
5DH-23118-L0-00 |
US $29.63 |
||
|
40
|
40
4SS-23158-L0-00 Gasket．ＧＡＳＫＥＴ; |
4SS-23158-L0-00 |
from US $5.10 |
||
|
41
|
41
5NL-23141-00-00 Spring, Front Fork (K=4.3N/．ＳＰＲＩＮＧ， ＦＲＯＮＴ ＦＯＲＫ; |
5NL-23141-00-00 |
US $78.88 |
||
|
42
|
42
3JD-2312G-L0-00 Plug．ＰＬＵＧ; |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
43
|
43
5NL-23340-00-00
Under Bracket Comp
ＵＮＤＥＲ ＢＲＡＣＫＥＴ ＣＯＭＰ．; |
5NL-23340-00-00 |
— | ||
| replacement | |||||
|
43
|
43
999-99999-99-00
Not Available
ＵＮＤＥＲ ＢＲＡＣＫＥＴ ＣＯＭＰ．; |
999-99999-99-00 |
— | ||
|
44
|
44
5MV-23346-L0-00 Bolt 1ＢＯＬＴ １; |
5MV-23346-L0-00 |
from US $2.83 |
||
|
45
|
45
4SS-2314G-L0-00 Protecter Guide Comp., 2ＰＲＯＴＥＣＴＥＲ ＧＵＩＤＥ ＣＯＭＰ．， ２; |
4SS-2314G-L0-00 |
from US $37.45 |
||
|
46
|
46
5DH-2314F-L0-00 Protecter Guide Comp., 1ＰＲＯＴＥＣＴＥＲ ＧＵＩＤＥ ＣＯＭＰ．， １; |
5DH-2314F-L0-00 |
from US $37.45 |
||
|
47
|
47
4SS-23346-L0-00 Bolt 1ＢＯＬＴ １; |
4SS-23346-L0-00 |
from US $3.12 |
||
|
48
|
48
5DH-2314J-00-00
Protecter Comp., 2
ＰＲＯＴＥＣＴＥＲ ＣＯＭＰ．， ２; |
5DH-2314J-00-00 |
— | ||
|
49
|
49
5DH-2314H-00-00 Protecter Comp., 1ＰＲＯＴＥＣＴＥＲ ＣＯＭＰ．， １; |
5DH-2314H-00-00 |
from US $32.87 |
||
|
50
|
50
3SP-23356-L0-00 Bolt 2ＢＯＬＴ ２; |
3SP-23356-L0-00 |
from US $2.91 |
||
|
51
|
51
5HC-2331E-00-00 Guide, CableＧＵＩＤＥ， ＣＡＢＬＥ; |
5HC-2331E-00-00 |
US $7.60 |
||
|
52
|
52
4XL-2153A-10-00
Emblem, Yamaha
ＥＭＢＬＥＭ， ＹＡＭＡＨＡ; |
4XL-2153A-10-00 |
— | ||
| replacement | |||||
|
52
|
52
4XL-2153A-11-00 Emblem, YamahaＥＭＢＬＥＭ， ＹＡＭＡＨＡ; |
4XL-2153A-11-00 |
from US $11.16 |
||
|
53
|
53
4XL-2153A-10-00
Emblem, Yamaha
ＥＭＢＬＥＭ， ＹＡＭＡＨＡ; |
4XL-2153A-10-00 |
— | ||
| replacement | |||||
|
53
|
53
4XL-2153A-11-00 Emblem, YamahaＥＭＢＬＥＭ， ＹＡＭＡＨＡ; |
4XL-2153A-11-00 |
from US $11.16 |
||
