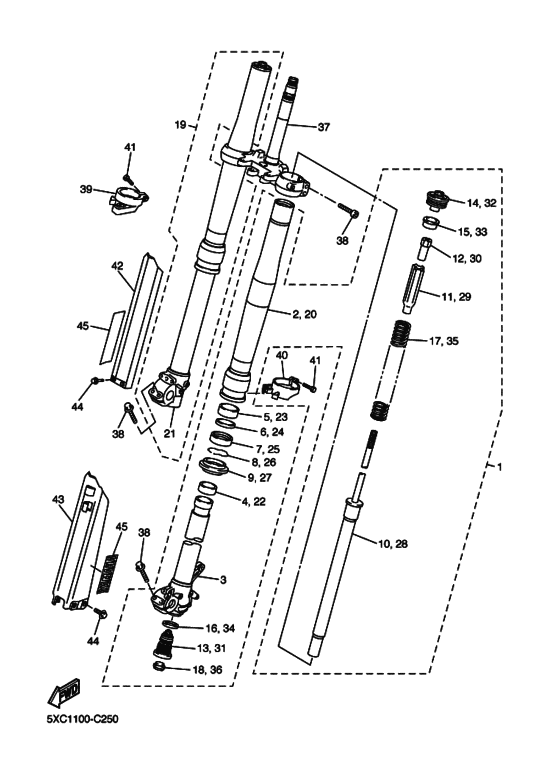

Front fork Diagram Yamaha YZ250 YZ250F
- Year
- 2004
- Colour
- Deep Purplish Blue Solid E (DPBSE; 0583)
- Model code
- 5XC2
- Sales region
- Europe (060)
- Базовая модель
- YZ250F
- Engine Capacity
- 250
- Color Variant
- A
- Model
- YZ250F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5XC-23102-10-00
Front Fork Assy (L.h)
|
5XC-23102-10-00 |
— | ||
|
2
|
2
5XD-23136-L0-00 Tube, Outer 2 |
5XD-23136-L0-00 |
US $876.10 |
||
|
3
|
3
5XE-23120-L0-00 Inner Tube Comp.2 |
5XE-23120-L0-00 |
from US $295.33 |
||
|
4
|
4
5XE-23171-L0-00 Piston, Front Fork |
5XE-23171-L0-00 |
from US $18.86 |
||
|
5
|
5
5XE-23125-L0-00 Metal, Slide 1 |
5XE-23125-L0-00 |
from US $13.87 |
||
|
6
|
6
5XE-23146-L0-00 Washer, Oil Seal |
5XE-23146-L0-00 |
from US $11.05 |
||
|
7
|
7
5XE-23145-L0-00 Oil Seal |
5XE-23145-L0-00 |
from US $20.83 |
||
| replacement | |||||
|
7
|
7
1C3-23145-L0-00 Oil Seal |
1C3-23145-L0-00 |
from US $17.86 |
||
|
8
|
8
5XE-23153-L0-00 Ring, Snap |
5XE-23153-L0-00 |
from US $2.41 |
||
|
9
|
9
5XE-23144-L0-00 Seal, Dust |
5XE-23144-L0-00 |
from US $15.84 |
||
|
10
|
10
5XC-23170-L0-00 Cylinder Comp., Front Fork |
5XC-23170-L0-00 |
US $600.79 |
||
|
11
|
11
5XE-23142-L0-00 Seat, Spring Upper |
5XE-23142-L0-00 |
from US $21.54 |
||
|
12
|
12
5XE-23393-L0-00 Nut, Special |
5XE-23393-L0-00 |
from US $24.79 |
||
|
13
|
13
5XC-2316A-M0-00
Valve Comp
|
5XC-2316A-M0-00 |
— | ||
|
14
|
14
5XE-23111-L0-00 Bolt, Cap |
5XE-23111-L0-00 |
from US $160.27 |
||
|
15
|
15
5XE-23117-L0-00 Guide, Spring |
5XE-23117-L0-00 |
from US $3.68 |
||
|
16
|
16
4SS-23158-L0-00 Gasket |
4SS-23158-L0-00 |
from US $5.10 |
||
|
17
|
17
5XC-23141-L0-00 Spring, Front Fork(K=4.2N/mm) |
5XC-23141-L0-00 |
from US $84.44 |
||
|
18
|
18
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
19
|
19
5XC-23103-10-00
Front Fork Assy (R.h)
|
5XC-23103-10-00 |
— | ||
|
20
|
20
5XD-23136-L0-00 Tube, Outer 2 |
5XD-23136-L0-00 |
US $876.10 |
||
|
21
|
21
5XE-23110-L0-00 Inner Tube Comp.1 |
5XE-23110-L0-00 |
US $449.98 |
||
|
22
|
22
5XE-23171-L0-00 Piston, Front Fork |
5XE-23171-L0-00 |
from US $18.86 |
||
|
23
|
23
5XE-23125-L0-00 Metal, Slide 1 |
5XE-23125-L0-00 |
from US $13.87 |
||
|
24
|
24
5XE-23146-L0-00 Washer, Oil Seal |
5XE-23146-L0-00 |
from US $11.05 |
||
|
25
|
25
5XE-23145-L0-00 Oil Seal |
5XE-23145-L0-00 |
from US $20.83 |
||
| replacement | |||||
|
25
|
25
1C3-23145-L0-00 Oil Seal |
1C3-23145-L0-00 |
from US $17.86 |
||
|
26
|
26
5XE-23153-L0-00 Ring, Snap |
5XE-23153-L0-00 |
from US $2.41 |
||
|
27
|
27
5XE-23144-L0-00 Seal, Dust |
5XE-23144-L0-00 |
from US $15.84 |
||
|
28
|
28
5XC-23170-L0-00 Cylinder Comp., Front Fork |
5XC-23170-L0-00 |
US $600.79 |
||
|
29
|
29
5XE-23142-L0-00 Seat, Spring Upper |
5XE-23142-L0-00 |
from US $21.54 |
||
|
30
|
30
5XE-23393-L0-00 Nut, Special |
5XE-23393-L0-00 |
from US $24.79 |
||
|
31
|
31
5XC-2316A-M0-00
Valve Comp
|
5XC-2316A-M0-00 |
— | ||
|
32
|
32
5XE-23111-L0-00 Bolt, Cap |
5XE-23111-L0-00 |
from US $160.27 |
||
|
33
|
33
5XE-23117-L0-00 Guide, Spring |
5XE-23117-L0-00 |
from US $3.68 |
||
|
34
|
34
4SS-23158-L0-00 Gasket |
4SS-23158-L0-00 |
from US $5.10 |
||
|
35
|
35
5XC-23141-L0-00 Spring, Front Fork(K=4.2N/mm) |
5XC-23141-L0-00 |
from US $84.44 |
||
|
36
|
36
3JD-2312G-L0-00 Plug |
3JD-2312G-L0-00 |
from US $6.51 |
||
|
37
|
37
5XC-23340-L0-00 Under Bracket Comp |
5XC-23340-L0-00 |
US $622.62 |
||
|
38
|
38
5NY-23346-L0-00 Bolt 1 |
5NY-23346-L0-00 |
from US $2.69 |
||
|
39
|
39
5XE-2314G-L0-00 Protecter Guide Comp., 2 |
5XE-2314G-L0-00 |
from US $30.71 |
||
|
40
|
40
5XE-2314F-L0-00
Protecter Guide Comp., 1
|
5XE-2314F-L0-00 |
— | ||
|
41
|
41
4SS-23346-L0-00 Bolt 1 |
4SS-23346-L0-00 |
from US $3.12 |
||
|
42
|
42
5TA-2314J-00-00 Protecter Comp., 2 |
5TA-2314J-00-00 |
from US $33.15 |
||
|
43
|
43
5TA-2314H-00-00 Protecter Comp., 1 |
5TA-2314H-00-00 |
from US $33.15 |
||
|
44
|
44
3SP-23356-L0-00 Bolt 2 |
3SP-23356-L0-00 |
from US $2.91 |
||
|
45
|
45
4XL-2153A-10-00
Emblem, Yamaha
|
4XL-2153A-10-00 |
— | ||
| replacement | |||||
|
45
|
45
4XL-2153A-11-00 Emblem, Yamaha |
4XL-2153A-11-00 |
from US $11.16 |
||
