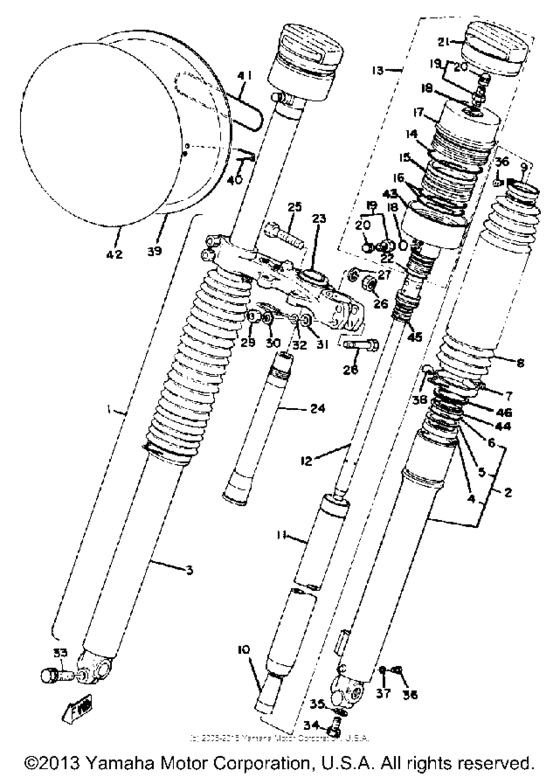

Front fork Diagram Yamaha YZ400 YZ400
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- YZ400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
509-23101-L1-00
Front Fork Assembly
|
509-23101-L1-00 |
— | ||
|
2
|
2
509-23126-L1-00
Tube, Outer 1
|
509-23126-L1-00 |
— | ||
|
3
|
3
509-23136-L1-00
Tube, Outer 2
|
509-23136-L1-00 |
— | ||
|
3
|
3
509-23145-L0-00
Oil Seal
|
509-23145-L0-00 |
— | ||
|
5
|
5
509-23146-L0-00
Washer, Oil Seal
|
509-23146-L0-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
509-23156-L0-00
Clip, Oil Seal
|
509-23156-L0-00 |
— | ||
|
7
|
7
583-23318-00-00
Holder, Cable 1
|
583-23318-00-00 |
— | ||
|
8
|
8
509-23191-L1-00
Boot, Front Fork
|
509-23191-L1-00 |
— | ||
|
9
|
9
341-92090-60-00 Band, B00T |
341-92090-60-00 |
from US $28.30 |
||
|
10
|
10
509-23173-L0-00
Spindle, Taper
|
509-23173-L0-00 |
— | ||
|
11
|
11
509-23110-L1-00
Inner Tube 1
|
509-23110-L1-00 |
— | ||
|
12
|
12
509-23170-L1-00
Cylinder, Frtfrk
|
509-23170-L1-00 |
— | ||
|
13
|
13
509-23180-L1-00
Chamber Assembly
|
509-23180-L1-00 |
— | ||
|
14
|
14
509-23188-L0-00
O-Ring
|
509-23188-L0-00 |
— | ||
|
15
|
15
509-23189-L0-00
Free-Piston, Front Fork
|
509-23189-L0-00 |
— | ||
|
16
|
16
509-23147-L0-00
O-Ring
|
509-23147-L0-00 |
— | ||
|
17
|
17
509-23187-L0-00
Cap, Chamber
|
509-23187-L0-00 |
— | ||
|
18
|
18
509-23163-L0-00
O-Ring
|
509-23163-L0-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
509-23190-L0-00
Air Valve
|
509-23190-L0-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
509-23184-L0-00 Cap, Air Valve |
509-23184-L0-00 |
from US $9.81 |
||
|
21
|
21
509-23185-L1-00
Cover, Valve
|
509-23185-L1-00 |
— | ||
|
22
|
22
240-23114-00-00 Gasket |
240-23114-00-00 |
from US $5.24 |
||
|
23
|
23
2H1-23340-00-33
Under Bracket
M6-008LOW GLOSS BLK |
2H1-23340-00-33 |
— | ||
|
24
|
24
1E6-23341-00-00
Shaft, Steering
|
1E6-23341-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
322-23356-00-00
Bolt 2
|
322-23356-00-00 |
— | ||
| replacement | |||||
|
25
|
25
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
26
|
26
322-23357-00-00
Nut
|
322-23357-00-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
28
|
28
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
29
|
29
901-70081-80-00
Nut, Hexagon
|
901-70081-80-00 |
— | ||
| replacement | |||||
|
29
|
29
90170-08216-00 Nut, Hexagon |
90170-08216-00 |
from US $2.88 |
||
|
30
|
30
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
31
|
31
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
31
|
31
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
32
|
32
509-23319-00-00
Holder, Cable 2
|
509-23319-00-00 |
— | ||
|
33
|
33
J60-23346-00-00
Bolt 1 (90119-08011)
90119-08011 |
J60-23346-00-00 |
— | ||
|
34
|
34
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
34
|
34
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
35
|
35
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
36
|
36
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
37
|
37
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
38
|
38
509-26393-00-00
Holder
|
509-26393-00-00 |
— | ||
|
39
|
39
322-23485-00-00
Plate, Number
|
322-23485-00-00 |
— | ||
|
40
|
40
431-23486-02-00
Stay, Plate
|
431-23486-02-00 |
— | ||
|
41
|
41
93210-99103-00 O-Ring |
93210-99103-00 |
from US $6.38 |
||
|
42
|
42
322-23395-00-00
Emblem
|
322-23395-00-00 |
— | ||
|
43
|
43
509-23186-L1-00
Case, Chamber
|
509-23186-L1-00 |
— | ||
|
44
|
44
509-23144-L0-00
Seal, Dust
|
509-23144-L0-00 |
— | ||
|
45
|
45
509-23151-L0-00
Spring, Rebound
|
509-23151-L0-00 |
— | ||
|
45
|
45
509-23144-L0-00
Seal, Dust
|
509-23144-L0-00 |
— | ||
|
46
|
46
509-23148-L0-00
Cover, Dust Seal
|
509-23148-L0-00 |
— | ||
